2005 Kawasaki KLX125 Cam Chain/tensioner Diagram

← All diagrams

Find the part on the Cam Chain/tensioner diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

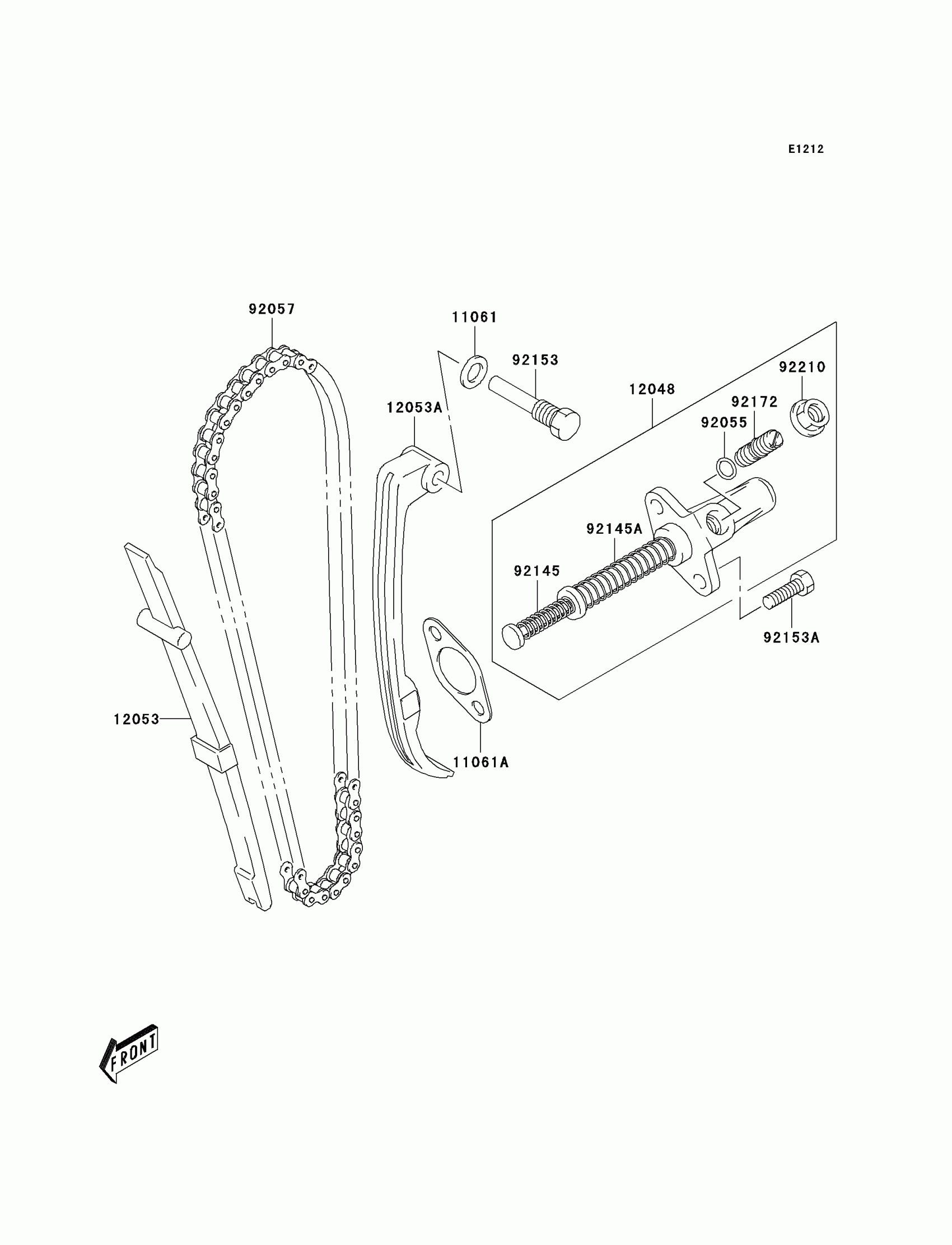

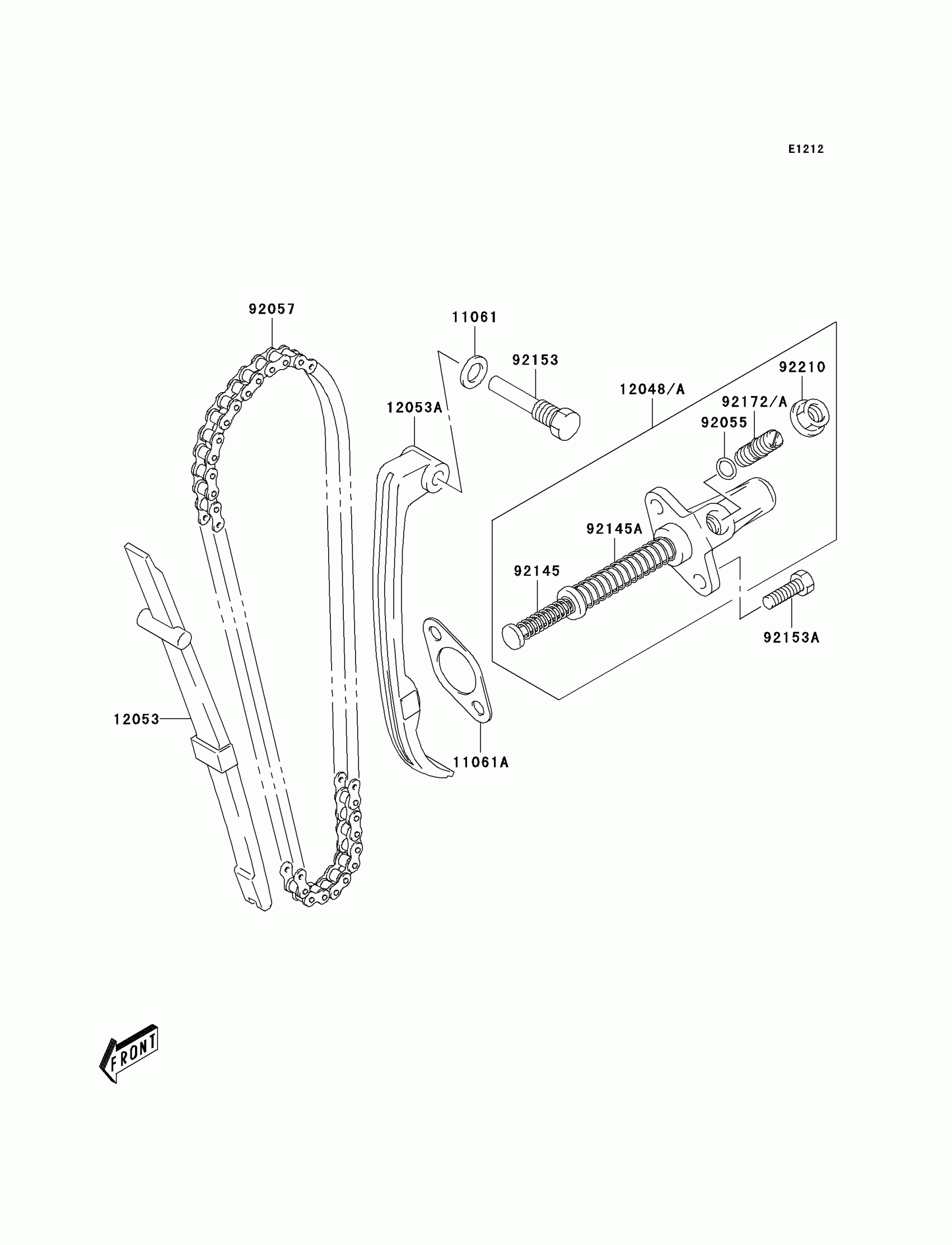

2005 Kawasaki KLX125 Cam Chain/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,8.2X14X1

11061-S020

1
Out of stock

11061A

GASKET,TENSIONER ADJUSTER

11061-S038

1
Out of stock

12048A

TENSIONER-ASSY

12048-S008

1
Out of stock

12053

GUIDE-CHAIN

12053-S005

1
Out of stock

12053A

GUIDE-CHAIN

12053-S006

1
Out of stock

92055

RING-O,D=1.9

92055-S032

1
Out of stock

92057

CHAIN

92057-S004

1
Out of stock

92145

SPRING

92145-S038

1
Out of stock

92145A

SPRING

92145-S040

1
Out of stock

92153

BOLT,CAM CHAIN TENSIONER

92153-S054

1
Out of stock

92153A

BOLT

92153-S127

1
Out of stock

92172A

SCREW

92172-S282

1
Out of stock

92210

NUT

92210-S026

1
Out of stock
