2005 Kawasaki KLX125 Crankshaft/piston Diagram

← All diagrams

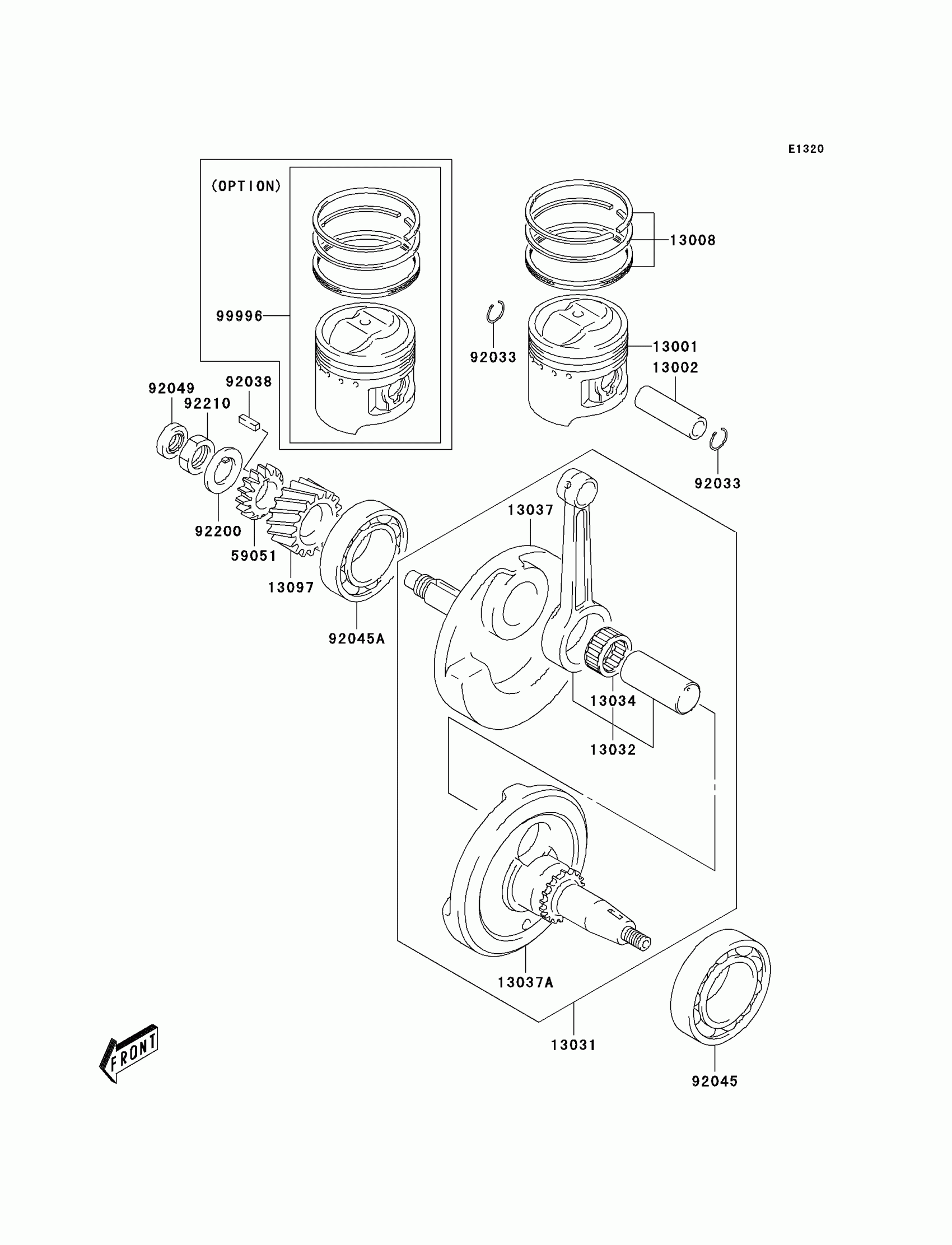

Find the part on the Crankshaft/piston diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-S003

1
Out of stock

13002

PIN-PISTON

13002-S003

1
Out of stock

13008

RING-SET-PISTON

13008-S003

1
Out of stock

13031

CRANKSHAFT-COMP

13031-S003

1
Out of stock

13032

ROD-CONNECTING

13032-S003

1
Out of stock

13034

BEARING-BIG END,28X36X15.8

13034-S003

1
Out of stock

13037

CRANKSHAFT,RH

13037-S005

1
Out of stock

13037A

CRANKSHAFT,LH

13037-S006

1
Out of stock

13097

GEAR-PRIMARY SPUR

13097-S003

1
Out of stock

59051

GEAR-SPUR,OIL PUMP DRIVE

59051-S001

1
Out of stock

92033

RING-SNAP

92033-S022

1
Out of stock

92038

KEY,PRIMARY DRIVE

92038-S003

1
Out of stock

92045

BEARING-BALL,35X72X17

92045-S010

1
Out of stock

92045A

BEARING-BALL,28X68X18

92045-S026

1
Out of stock

92049

SEAL-OIL,12X21X7

92049-S001

1
Out of stock

92200

WASHER

92200-S058

1
Out of stock

92210

NUT

92210-S048

1
Out of stock

99996

KIT,PISTON O/S 0.50

99996-S007

1
Out of stock
