2005 Kawasaki KLX125 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

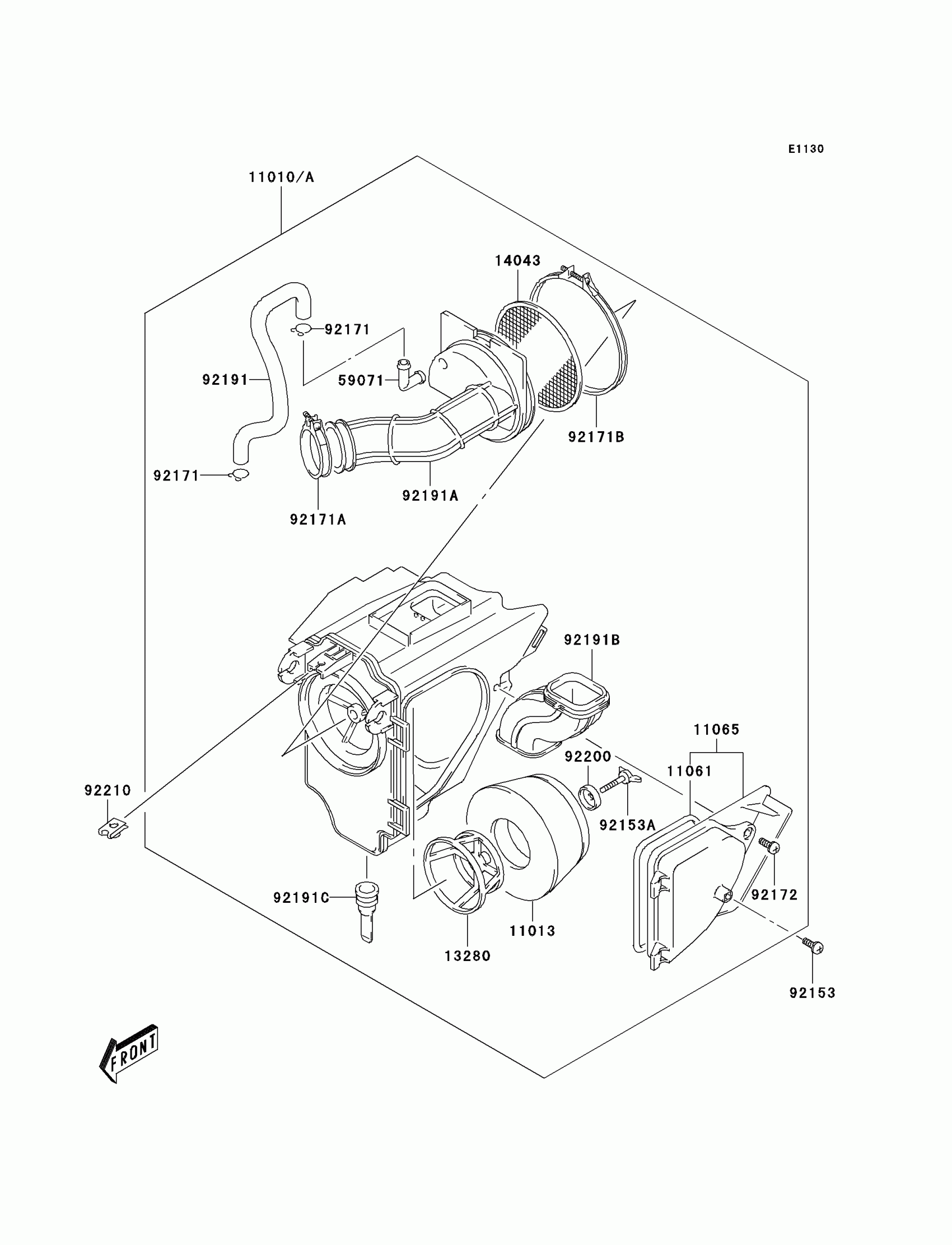

2005 Kawasaki KLX125 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010A

FILTER-ASSY-AIR

11010-S007

1

$217.51

In stock

11013

ELEMENT-AIR FILTER

11013-S004

1

$36.90

In stock

11061

GASKET

11061-S039

1
Out of stock

11065

CAP,AIR CLEANER

11065-S033

1

$25.75

In stock

13280

HOLDER,FILTER

13280-S014

1

$11.76

In stock

14043

FILTER

14043-S003

1

$11.90

In stock

59071

JOINT

59071-S003

1
Out of stock

92153

BOLT

92153-S011

1

$1.64

In stock

92153A

BOLT

92153-S165

1

$7.61

In stock

92171

CLAMP

92171-S006

1

$2.49

In stock

92171A

CLAMP

92171-S009

1

$4.97

In stock

92171B

CLAMP,OUTLET TUBE

92171-S054

1
Out of stock

92172

SCREW

92172-S163

1

$1.64

In stock

92191

TUBE,BREATHER

92191-S030

1
Out of stock

92191A

TUBE,OUTLET

92191-S032

1
Out of stock

92191B

TUBE,INLET

92191-S033

1
Out of stock

92191C

TUBE,DRAIN

92191-S043

1
Out of stock

92200

WASHER

92200-S076

1
Out of stock

92210

NUT

92210-S050

1
Out of stock
