2005 Kawasaki KLX125 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

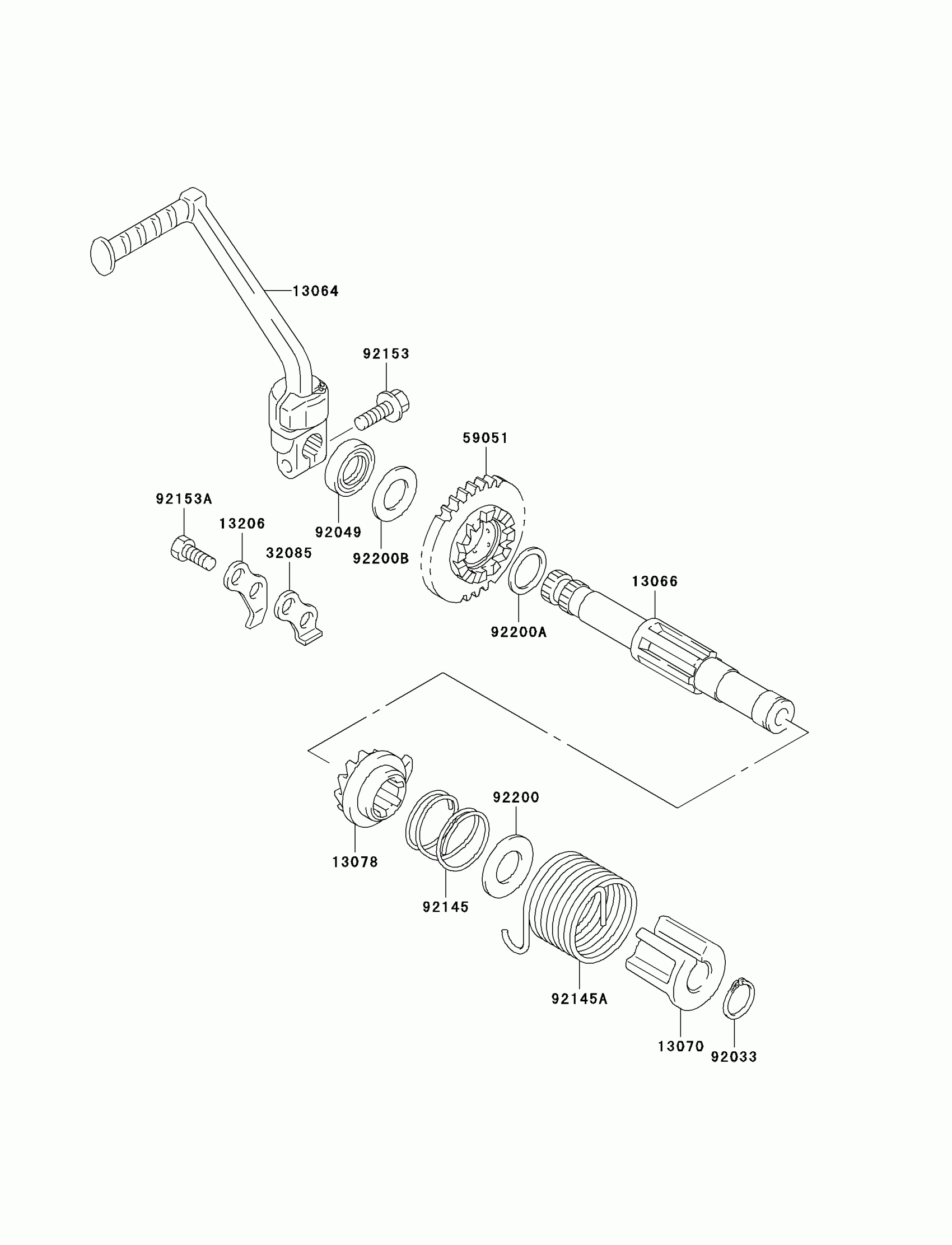

2005 Kawasaki KLX125 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13064

LEVER-ASSY-KICK

13064-S002

1
Out of stock

13066

SHAFT-KICK

13066-S001

1

$74.86

In stock

13070

1

$8.56

In stock

13078

RATCHET,KICK

13078-S001

1

$28.03

In stock

13206

1

$6.32

In stock

32085

STOPPER

32085-S003

1

$4.81

In stock

59051

1

$76.09

In stock

92033

RING-SNAP

92033-S034

1
Out of stock

92049

SEAL-OIL

92049-S023

1
Out of stock

92145

SPRING

92145-S042

1

$2.17

In stock

92145A

SPRING

92145-S045

1

$5.24

In stock

92153A

BOLT

92153-S142

1

$1.98

In stock

92153B

BOLT

92153-S185

1

$2.58

In stock

92200

WASHER

92200-S054

1
Out of stock

92200A

WASHER

92200-S063

1
Out of stock

92200B

WASHER,16X30X1

92200-S073

1
Out of stock
