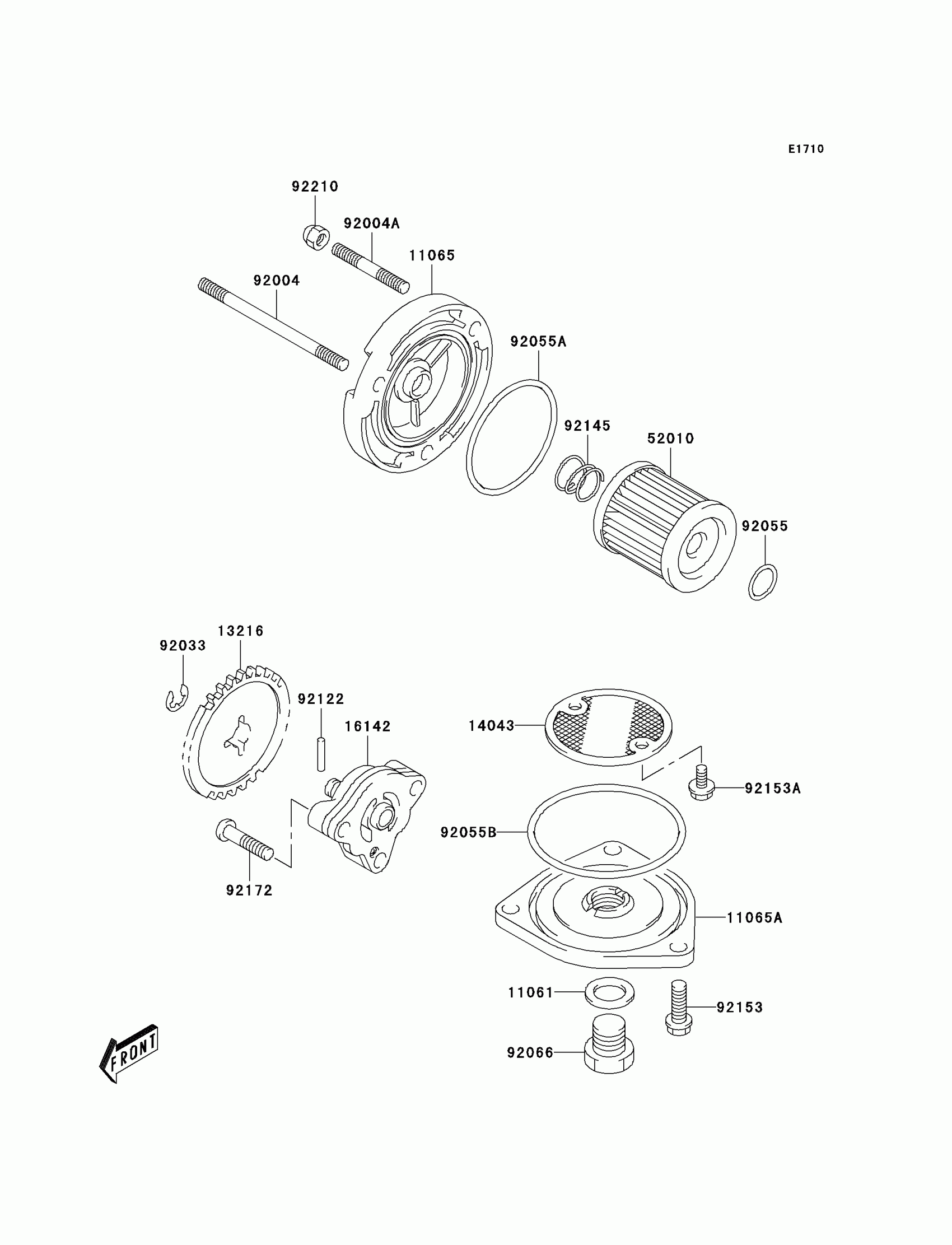

Find the part on the Oil Pump diagram for your 2005 Kawasaki KLX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$1.02

In stock

11065

CAP,OIL FILTER

11065-S015

1

$33.13

In stock

11065A

CAP,OIL STRAINER

11065-S016

1
Out of stock

13216

1

$39.44

In stock

14043

FILTER

14043-S002

1

$5.98

In stock

16142

COVER-PUMP

16142-S001

1

$128.98

In stock

52010

1

$9.37

In stock

92004

STUD,L=90

92004-S006

1
Out of stock

92004A

STUD

92004-S007

1
Out of stock

92033

RING-SNAP

92033-S018

1
Out of stock

92055

RING-O,D=1.9

92055-S005

1

$2.25

In stock

92055A

RING-O,D=2.4

92055-S010

1

$3.49

In stock

92055B

RING-O,D=2.4

92055-S037

1

$3.83

In stock

92066

PLUG

92066-S002

1

$4.17

In stock

92122

ROLLER

92122-S004

1

$1.63

In stock

92145

1

$1.49

In stock

92153

BOLT

92153-S002

1

$1.64

In stock

92153A

BOLT

92153-S132

1

$1.98

In stock

92172

SCREW

92172-S090

1

$1.64

In stock

92210

NUT

92210-S045

1
Out of stock
