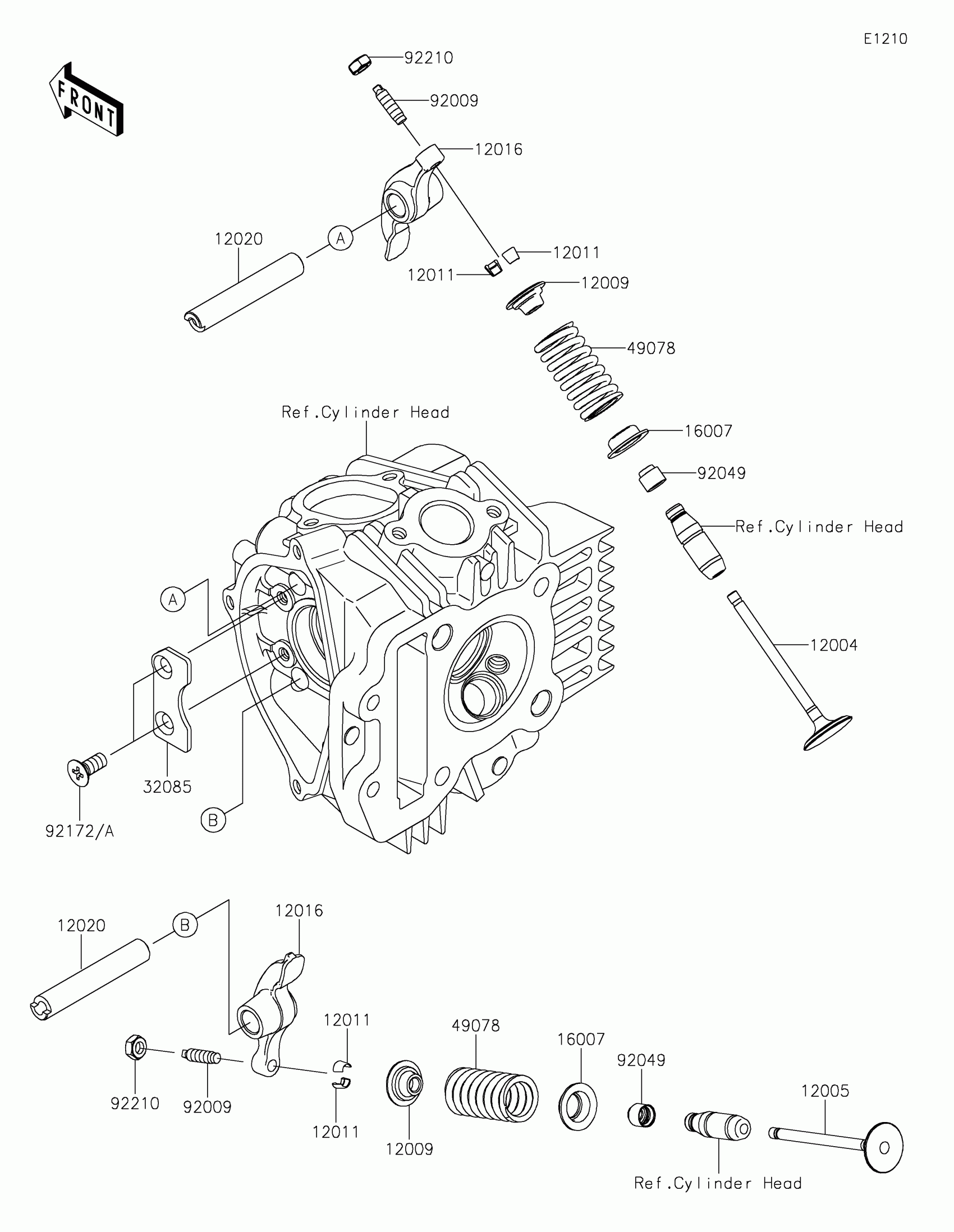

Find the part on the Valve diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX110 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$1.32

In stock

12004

VALVE-INTAKE

12004-1158

1
Out of stock

12005

VALVE-EXHAUST

12005-1331

1
Out of stock

12009

1

$8.44

In stock

12011

COLLET

12011-1053

1

$4.34

In stock

12016

ARM-ROCKER

12016-1003

1
Out of stock

12020

SHAFT-ROCKER

12020-1073

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1187

1

$2.92

In stock

32085

STOPPER

32085-1428

1

$2.12

In stock

49078

SPRING-ENGINE VALVE

49078-1151

1

$5.97

In stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,VALVE ADJUST LOCK

92015-1137

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock
