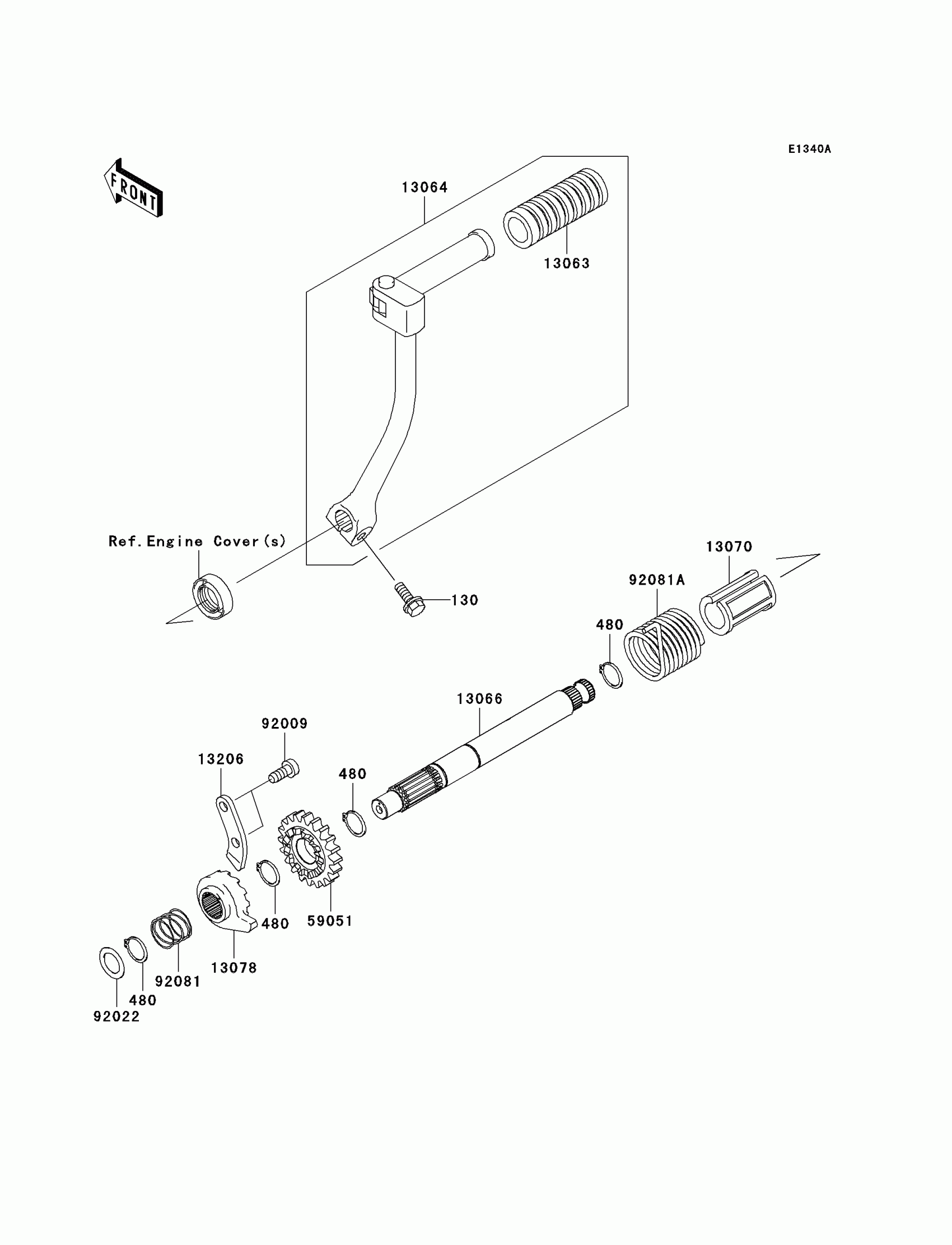

Kawasaki KLX110 Kickstarter Mechanism(A2-A4) Diagram

Description

Price

130

BOLT-FLANGED

130P0622

Unavailable

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

13063

DAMPER,PEDAL

13063-002

$3.58

13064

LEVER-ASSY-KICK

13064-1211

Unavailable

13066

SHAFT-KICK

13066-1108

Unavailable

13070

GUIDE,KICK SHAFT

13070-1035

$7.81

13078

RATCHET

13078-1069

$19.15

13206

GUIDE-KICK

13206-1006

$7.81

59051

GEAR-SPUR,KICK STARTER,22T

59051-1404

$30.93

92009

SCREW,TAPPING

92009-1104

$3.15

92022

WASHER,13.2X20X0.5

92022-1224

$3.43

92081

SPRING,RATCHET

92081-122

$6.98

92081A

SPRING,KICK STARTER

92081-1276

$10.27
