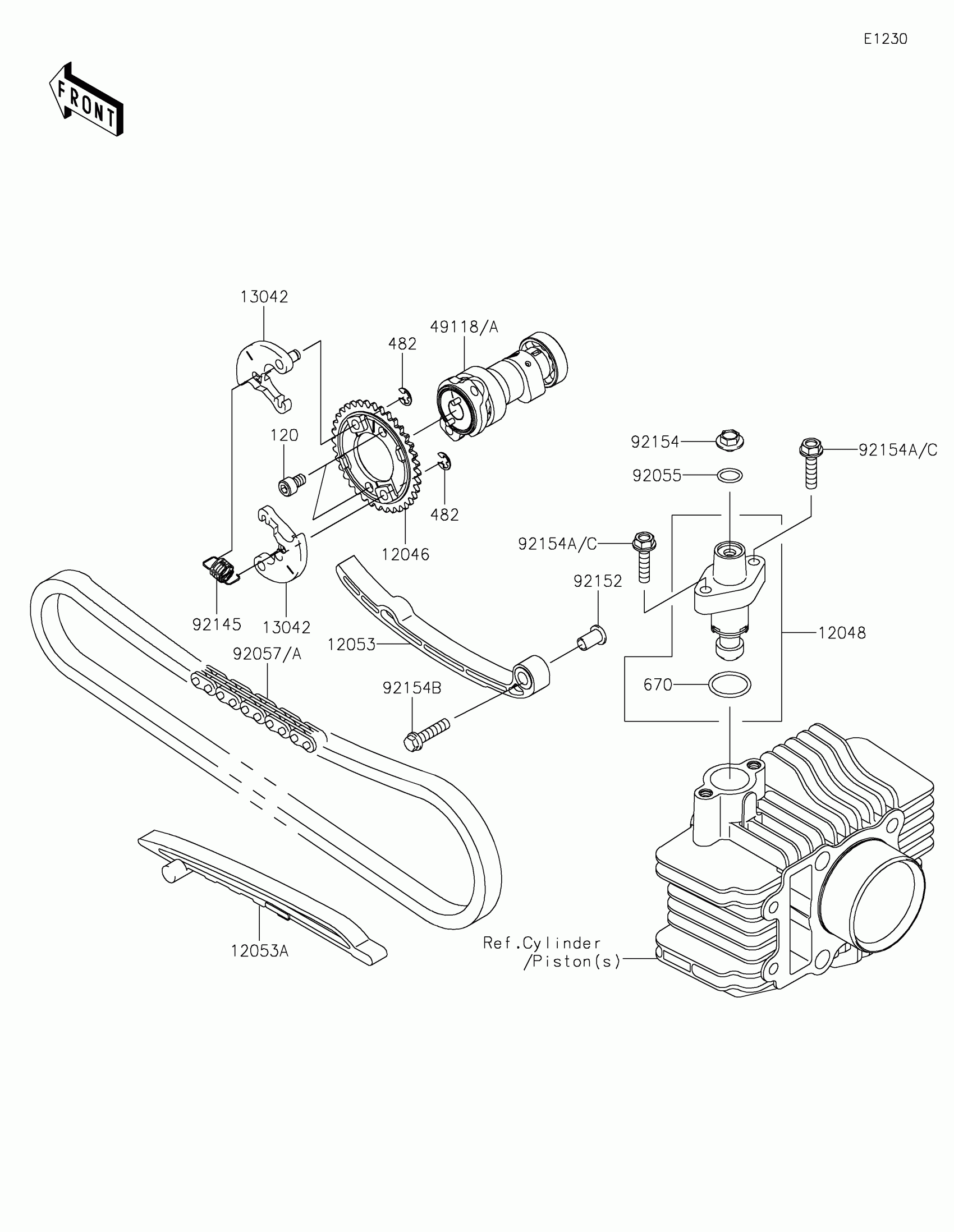

Kawasaki KLX110 Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X12

120P0612

Unavailable

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

670

O RING,10MM

670D2010

$1.41

670A

O RING,21MM

670D2021

$5.13

12046A

SPROCKET,CAM CHAIN,36T

12046-1206

$33.81

12048

TENSIONER-ASSY

12048-1164

$49.01

12053A

GUIDE-CHAIN,LOOSE

12053-1397

Unavailable

12053B

GUIDE-CHAIN

12053-1461

$3.01

49118

CAMSHAFT-COMP

49118-1214

$179.56

92057

CHAIN,CAM

92057-1449

$22.11

92150

BOLT,TENSIONER

92150-1380

$7.56

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.19

92153

BOLT,6X25

92153-1185

$4.09
