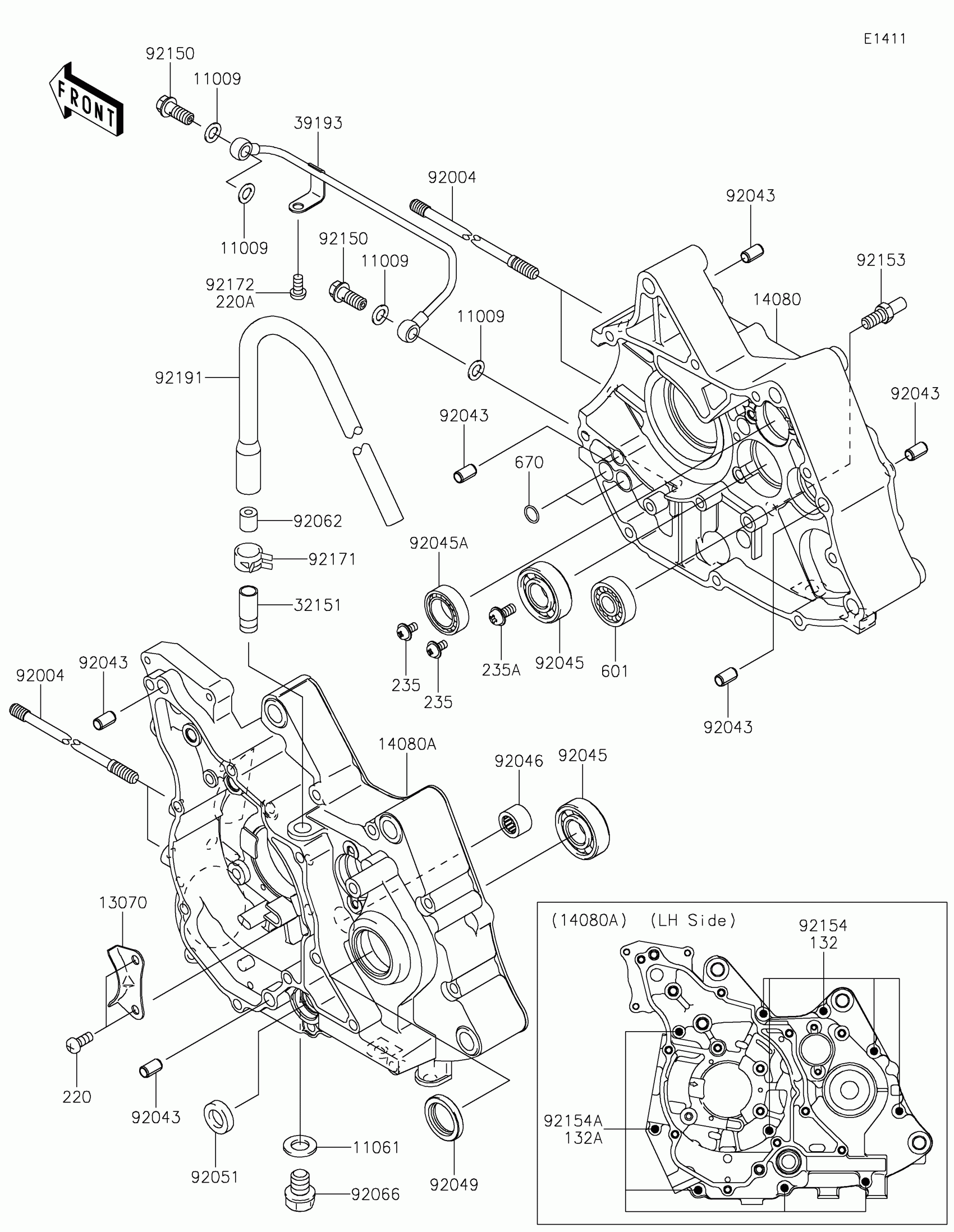

2005 Kawasaki KLX110 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

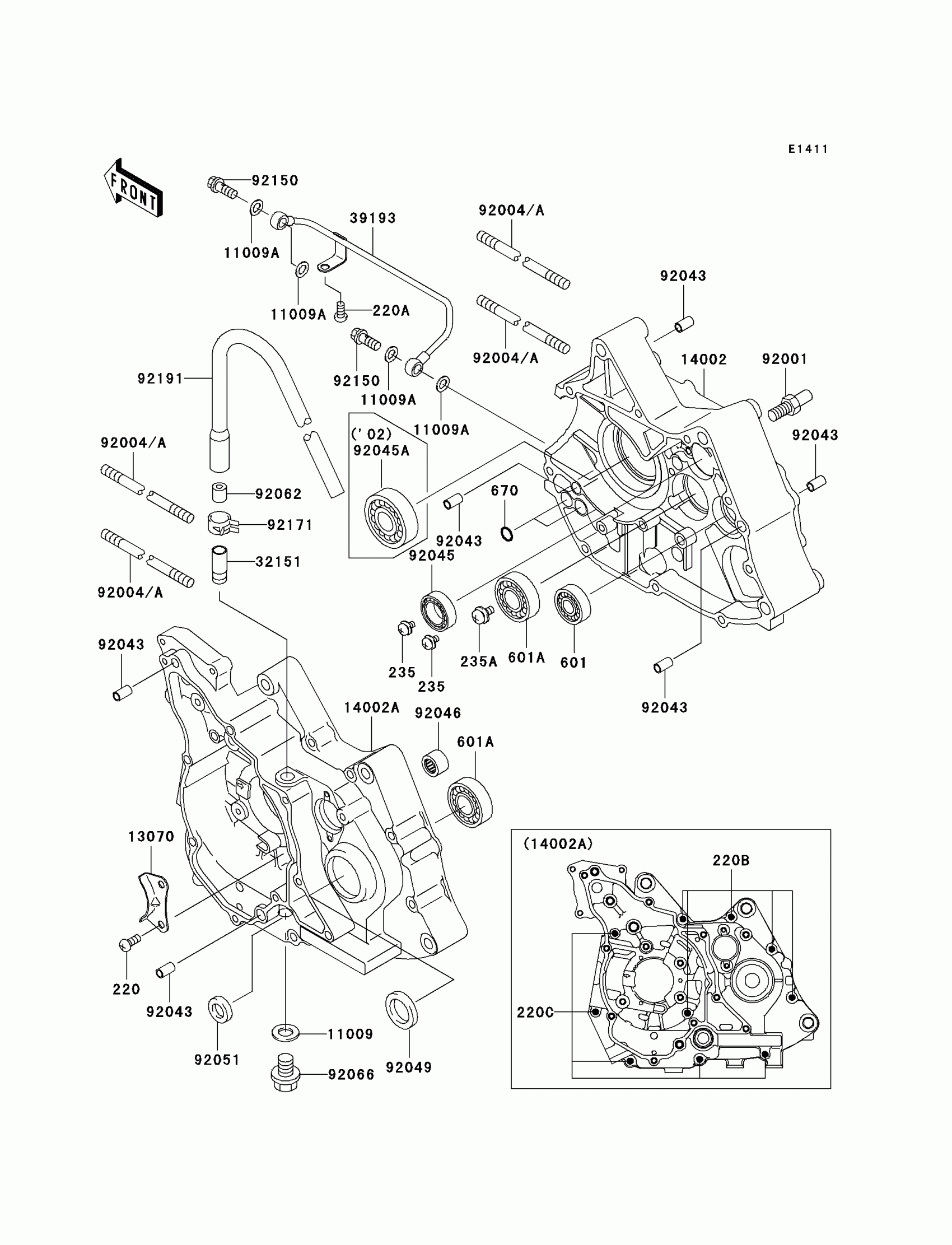

2005 Kawasaki KLX110 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$1.32

In stock

220A

SCREW-PAN-CROS

220X0612

1
Out of stock

220B

SCREW-PAN-CROS

220X0650

1
Out of stock

220C

SCREW-PAN-CROS

220X0675

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0510

1
Out of stock

235A

SCREW-PAN-WP-CROS

235B0614

1
Out of stock

601

BEARING-BALL

601A6201

1

$8.46

In stock

601A

1

$11.12

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

11009

GASKET,DRAIN PLUG

11009-1332

1
Out of stock

11009A

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

13070

GUIDE

13070-1319

1

$0.95

In stock

14002

CRANKCASE,RH

14002-1971

1
Out of stock

14002A

CRANKCASE,LH

14002-1973

1
Out of stock

32151

PIPE

32151-1961

1

$5.58

In stock

39193

PIPE-OIL

39193-1042

1

$51.43

In stock

92001

BOLT,RETURN SPRING

92001-1455

1

$4.17

In stock

92004A

STUD,8X190

92004-1281

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92045

BEARING-BALL,6804

92045-1171

1

$30.44

In stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,SC22325

92049-1048

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92062

NOZZLE,5X11.5X12

92062-1090

1

$1.59

In stock

92066

1

$4.88

In stock

92150

BOLT,BANJO,8X20

92150-1556

1

$4.55

In stock

92171

CLAMP

92171-1055

1

$3.85

In stock

92191

TUBE,BREATHER

92191-1724

1
Out of stock
