2005 Kawasaki KLX110 Oil Pump Diagram

← All diagrams

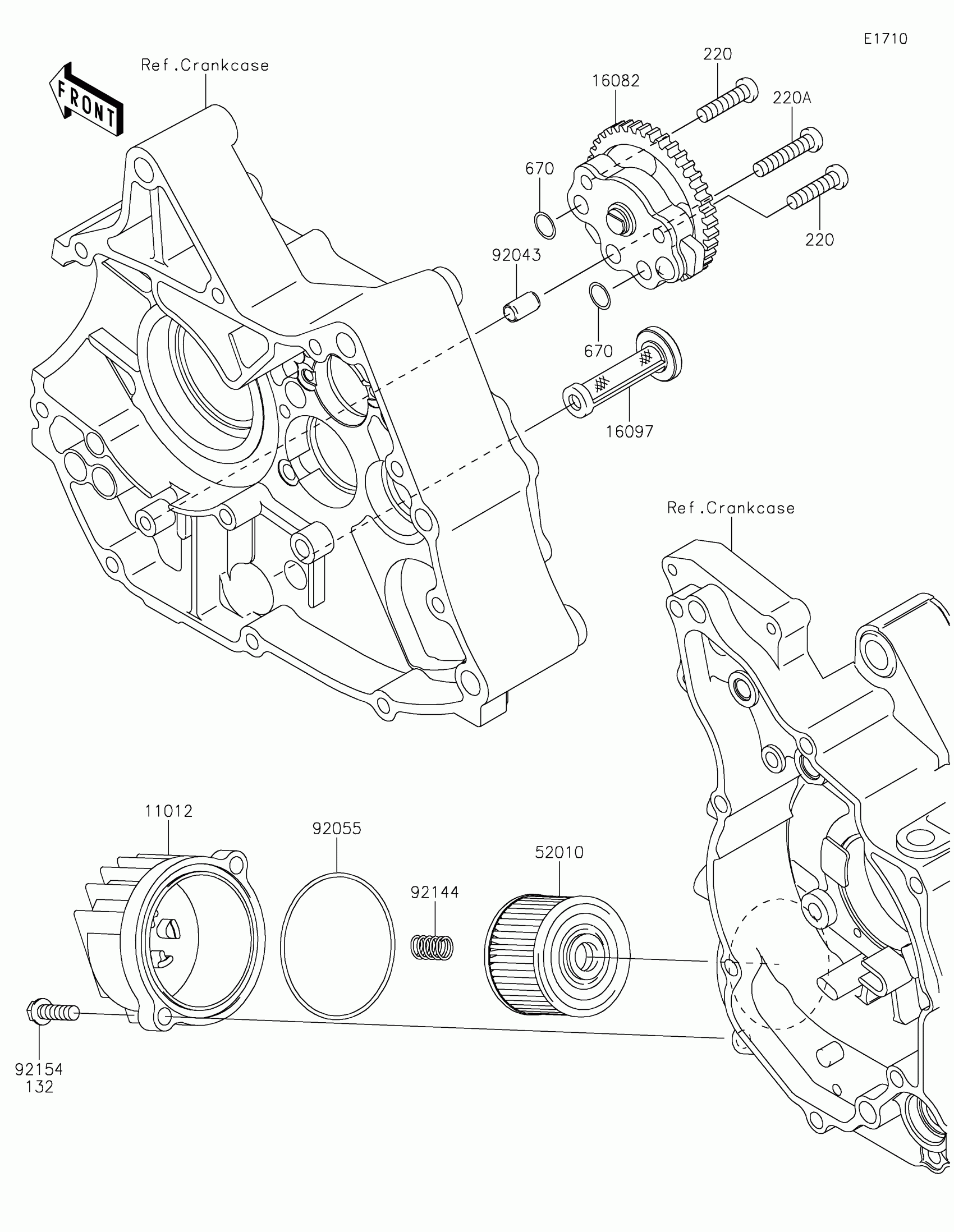

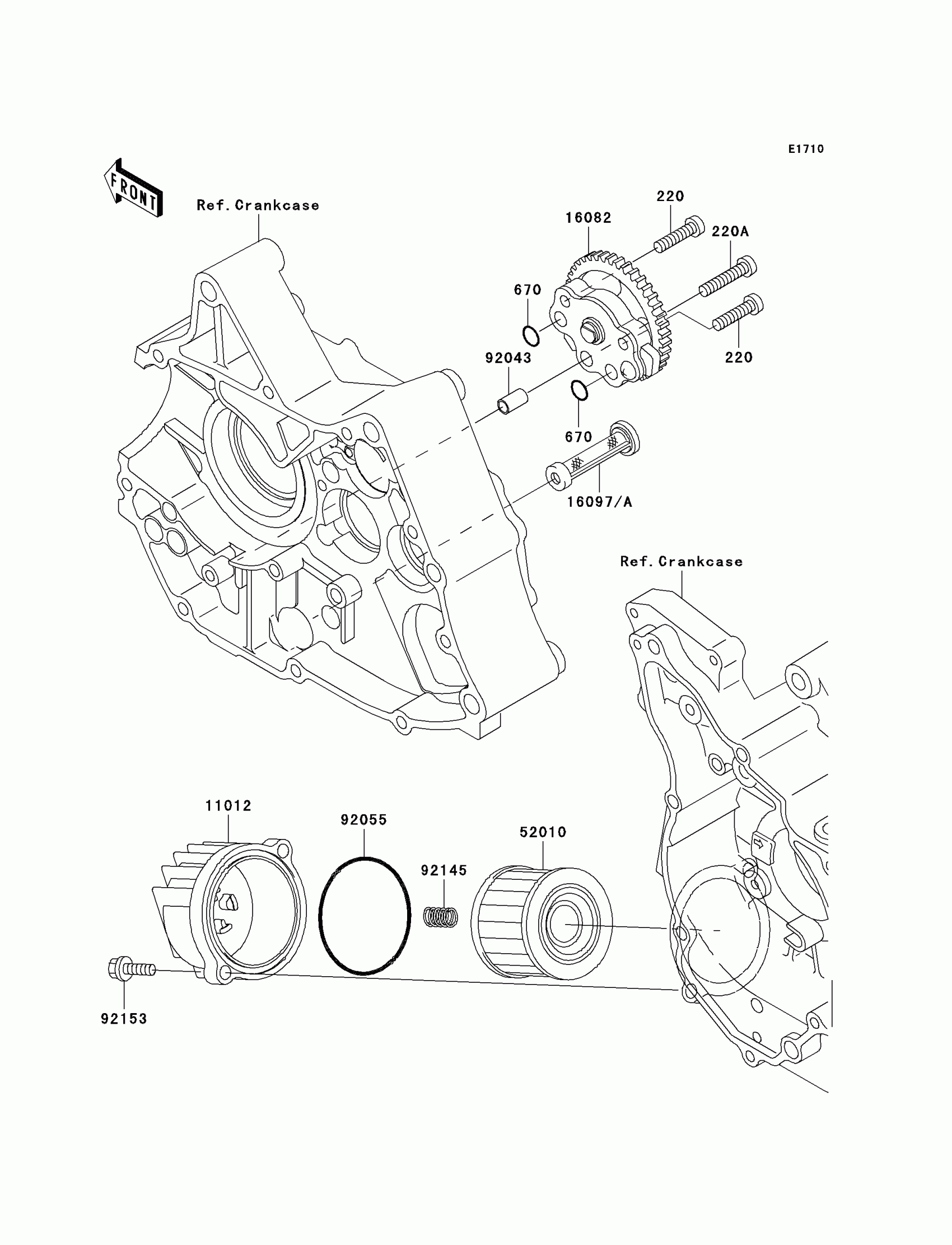

Find the part on the Oil Pump diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX110 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

220A

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

11012

CAP

11012-1980

1

$11.53

In stock

16082

PUMP-ASSY-OIL

16082-1052

1

$87.18

In stock

16097A

FILTER-ASSY-OIL

16097-1071

1

$12.61

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,59.6X2.4

92055-3018

1

$4.93

In stock

92145

SPRING

92145-1091

1

$1.86

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock
