2005 Kawasaki KLX110 Engine Cover Diagram

← All diagrams

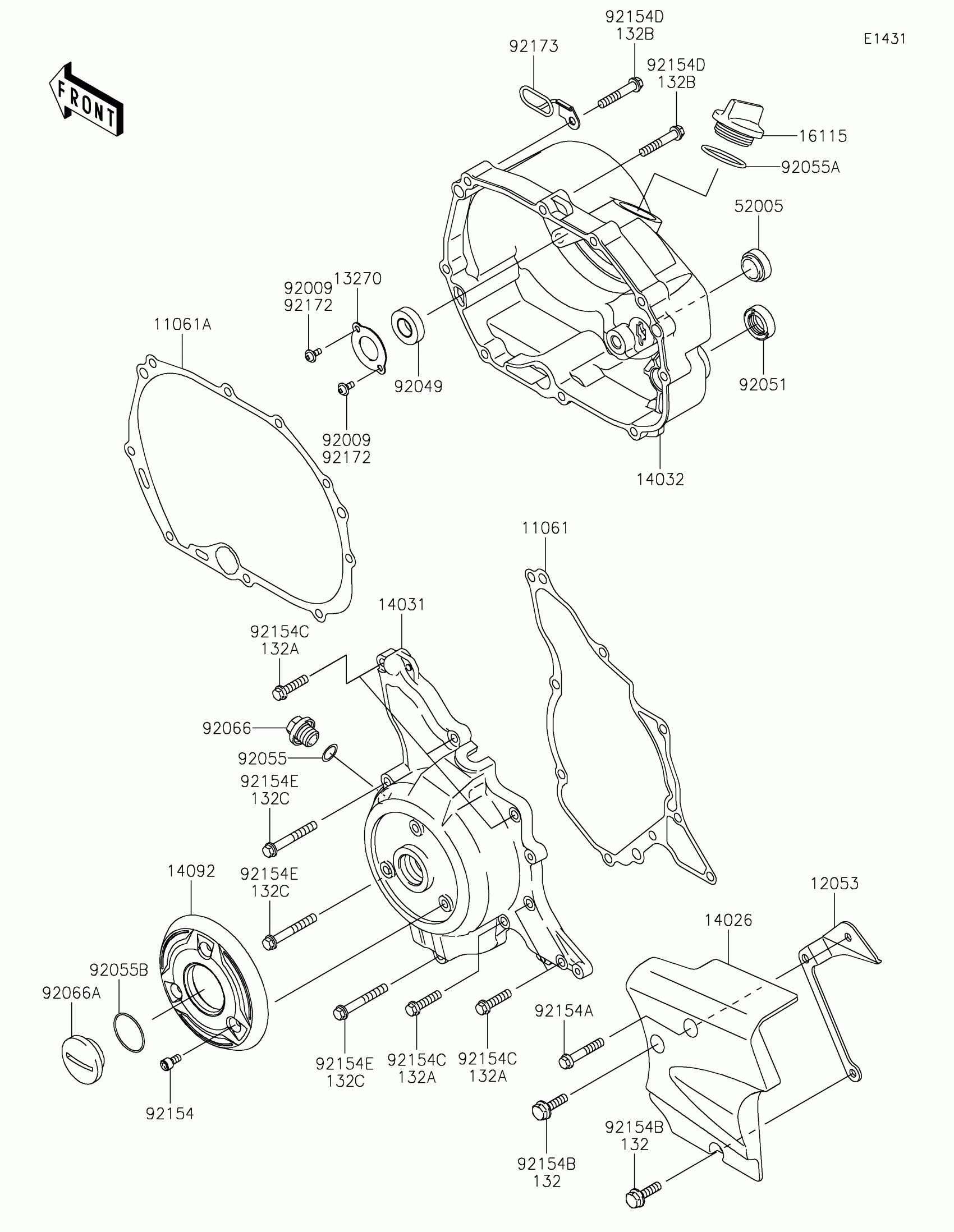

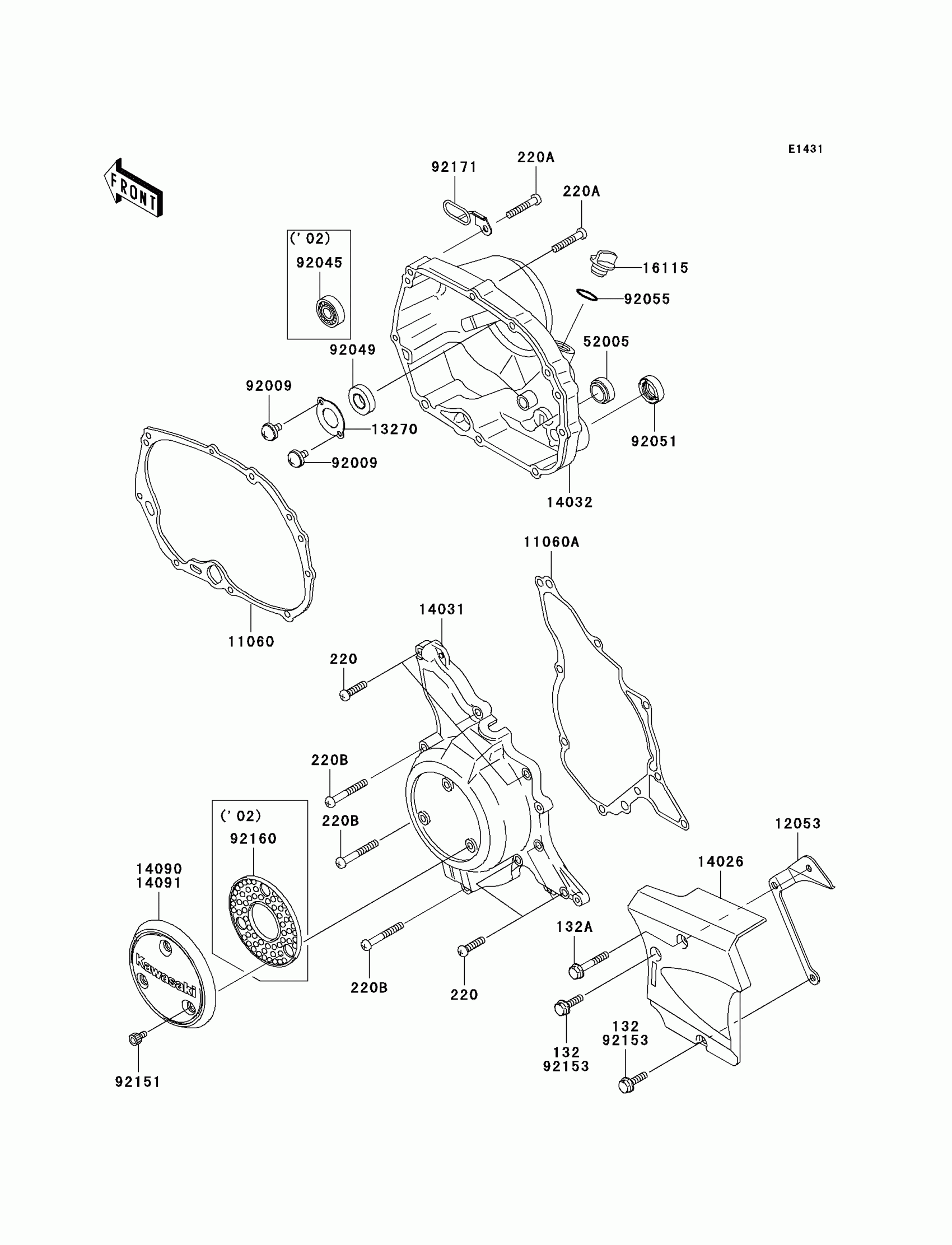

Find the part on the Engine Cover diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX110 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132A

BOLT-FLANGED-SMALL,6X35

132Y0635

1
Out of stock

220

SCREW-PAN-CROS

220X0625

1
Out of stock

220A

SCREW-PAN-CROS

220X0635

1
Out of stock

220B

SCREW-PAN-CROS

220X0645

1

$3.85

In stock

11060

GASKET,CLUTCH

11060-1797

1
Out of stock

11060A

GASKET,GENERATOR

11060-1798

1
Out of stock

12053

GUIDE-CHAIN,TENSION

12053-1467

1

$12.90

In stock

13270

PLATE

13270-1800

1
Out of stock

14026

COVER-CHAIN

14026-1285

1

$15.11

In stock

14031

COVER-GENERATOR

14031-1342

1

$76.81

In stock

14032

COVER-CLUTCH

14032-1529-10

1

$116.19

In stock

14091

1

$5.44

In stock

16115

CAP-OIL FILLER

16115-1068

1

$4.54

In stock

52005

GAUGE,OIL LEVEL

52005-1055

1

$11.67

In stock

92009

SCREW

92009-1745

1
Out of stock

92049

SEAL-OIL,AC0387E0

92049-1595

1
Out of stock

92051

SEAL-OIL,TB16267

92051-003

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92151

BOLT,SOCKET,5X10

92151-1212

1

$1.93

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock

92171

CLAMP,DRAIN TUBE

92171-1124

1

$13.54

In stock
