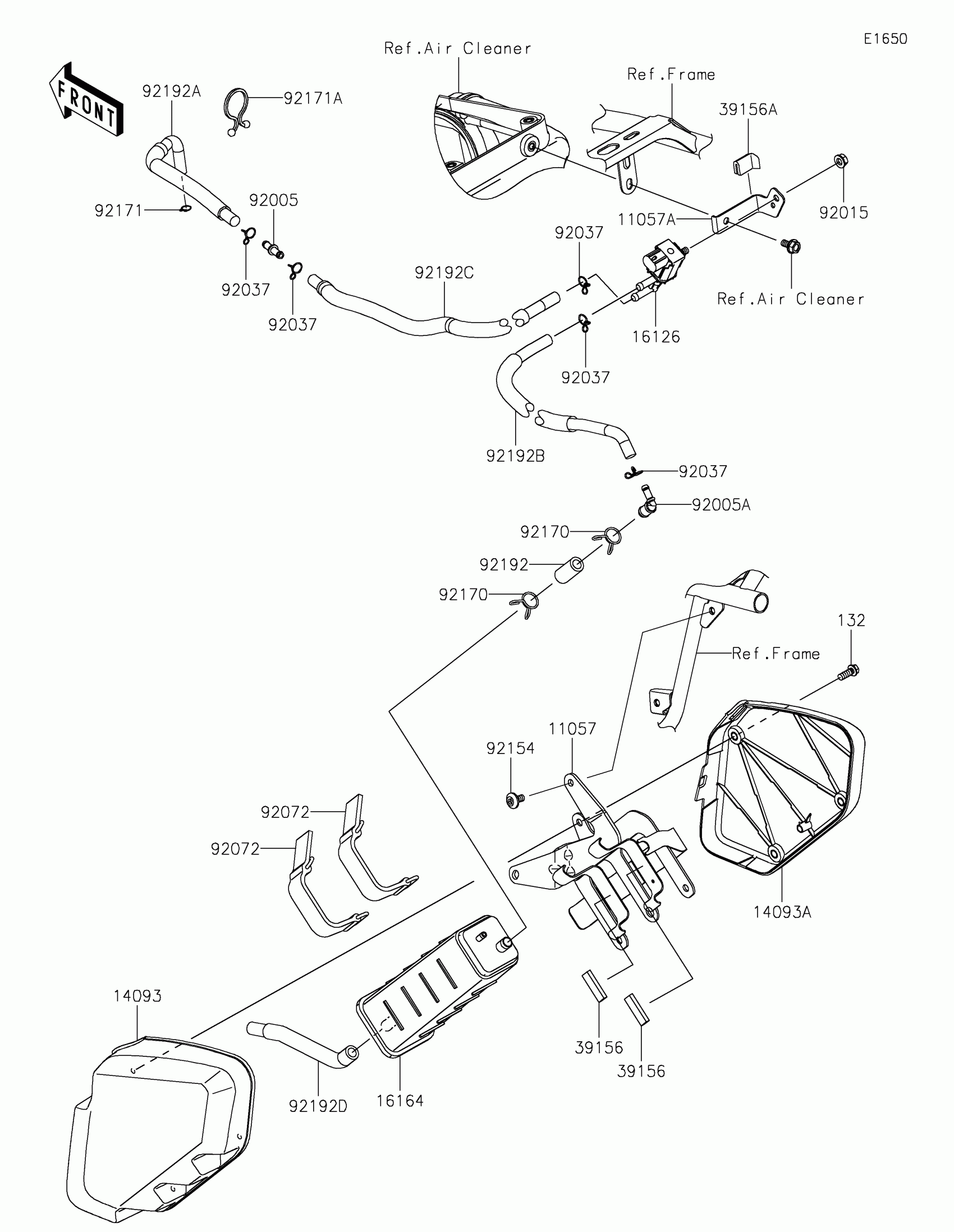

Find the part on the Fuel Evaporative System diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-2339

1
Out of stock

11057A

BRACKET

11057-2545

1
Out of stock

14093

COVER,CANISTER,OUT

14093-0878

1
Out of stock

14093A

COVER,CANISTER,IN

14093-0879

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0009

1
Out of stock

39156

PAD,10X30X4

39156-0927

1
Out of stock

39156A

PAD,21X33X3

39156-1851

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92005A

FITTING

92005-0753

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-1788

1
Out of stock

92170

CLAMP

92170-1695

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92171A

CLAMP

92171-1185

1
Out of stock

92192

TUBE,9X14.4X30

92192-1757

1
Out of stock

92192A

TUBE,FITTING-THB

92192-1970

1
Out of stock

92192B

TUBE,FITTING-VALVE

92192-1986

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BC0616

1
Out of stock

92192C

TUBE,VALVE-FITTING

92192-2240

1
Out of stock

92192D

TUBE,CANISTER

92192-2263

1
Out of stock
