2020 Kawasaki KLX®300R Fuel Tank Diagram

← All diagrams

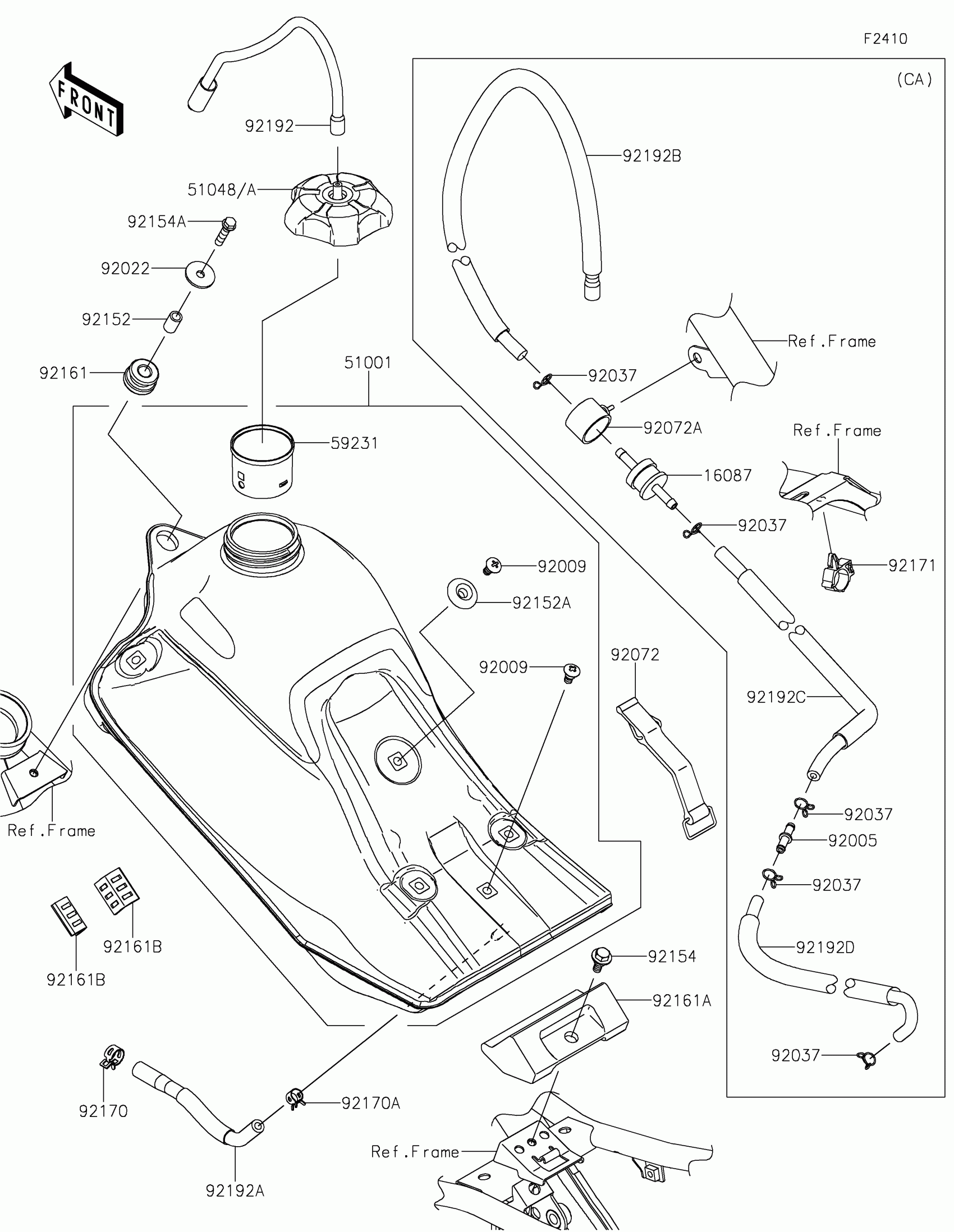

Find the part on the Fuel Tank diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®300R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16087

VALVE-CHECK

16087-0008

1
Out of stock

51001

TANK-COMP-FUEL

51001-0887

1
Out of stock

51048

CAP-ASSY-TANK

51048-0576

1
Out of stock

51048A

CAP-ASSY-TANK

51048-0593

1
Out of stock

59231

FILLER

59231-0745

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92072

BAND,FUEL TANK

92072-0835

1
Out of stock

92072A

BAND

92072-1438

1
Out of stock

92152

COLLAR,6.8X10X16

92152-1552

1
Out of stock

92152A

COLLAR

92152-2589

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0385

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-0520

1
Out of stock

92161

DAMPER,FUEL TANK,FR

92161-1914

1
Out of stock

92161A

DAMPER

92161-2199

1
Out of stock

92161B

DAMPER

92161-2220

1
Out of stock

92170

CLAMP

92170-1492

1
Out of stock

92170A

CLAMP

92170-1493

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1
Out of stock

92192

TUBE

92192-0161

1
Out of stock

92192A

TUBE,FUEL TANK-FUEL PUMP

92192-1960

1
Out of stock

92192B

TUBE,TANK CAP-CHECK VALVE

92192-1966

1
Out of stock

92192C

TUBE,VALVE-FITTING

92192-1967

1
Out of stock

92192D

TUBE,FITTING-CANISTER

92192-1968

1
Out of stock

92192E

TUBE,FUEL TANK-FUEL PUMP

92192-1996

1
Out of stock
