2020 Kawasaki KLX®300R Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2020 Kawasaki KLX®300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

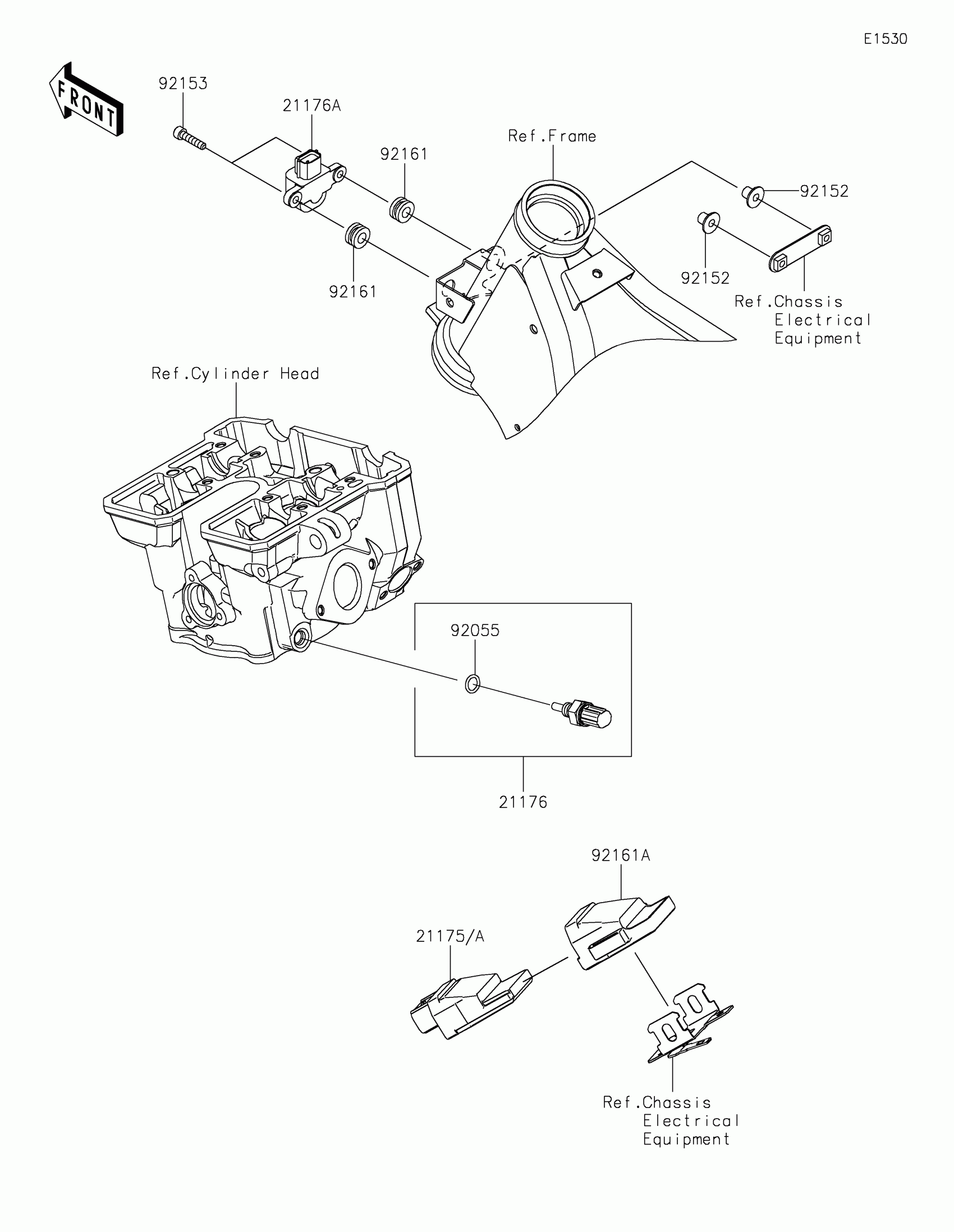

2020 Kawasaki KLX®300R Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$705.45

In stock

21175A

1

$705.45

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92153

BOLT,SOCKET,5X22

92153-1597

1

$1.81

In stock

92161

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock

92161A

DAMPER,ECU

92161-2200

1

$8.31

In stock
