2009 Kawasaki KLX®110 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

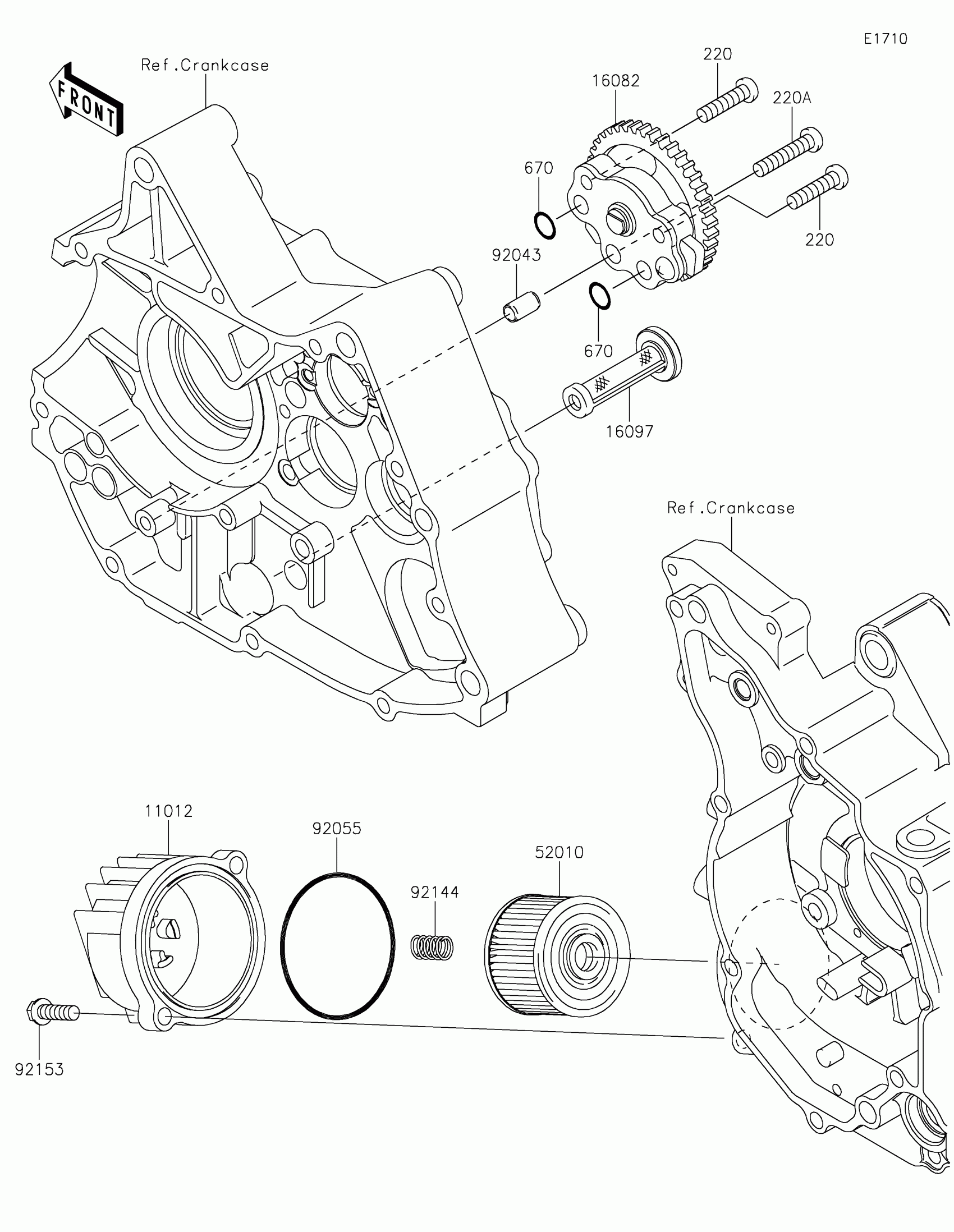

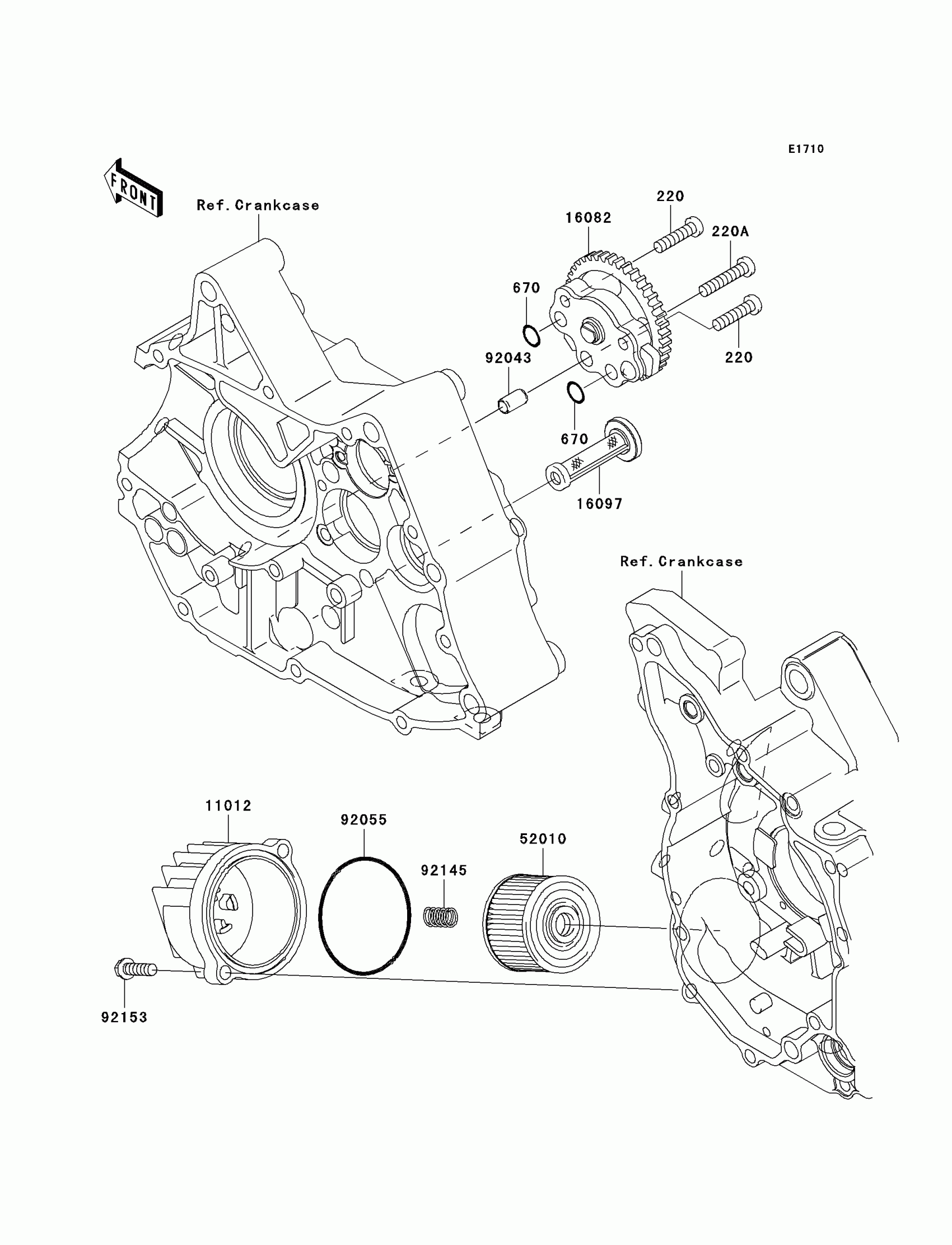

2009 Kawasaki KLX®110 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$2.27

In stock

220A

1

$2.92

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

11012

CAP

11012-1980

1

$11.53

In stock

16082

PUMP-ASSY-OIL

16082-1052

1

$87.18

In stock

16097

FILTER-ASSY-OIL

16097-1071

1

$12.61

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O,59.6X2.4

92055-3018

1

$4.93

In stock

92145

SPRING

92145-1091

1

$1.86

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock
