2009 Kawasaki KLX®110 Engine Cover Diagram

← All diagrams

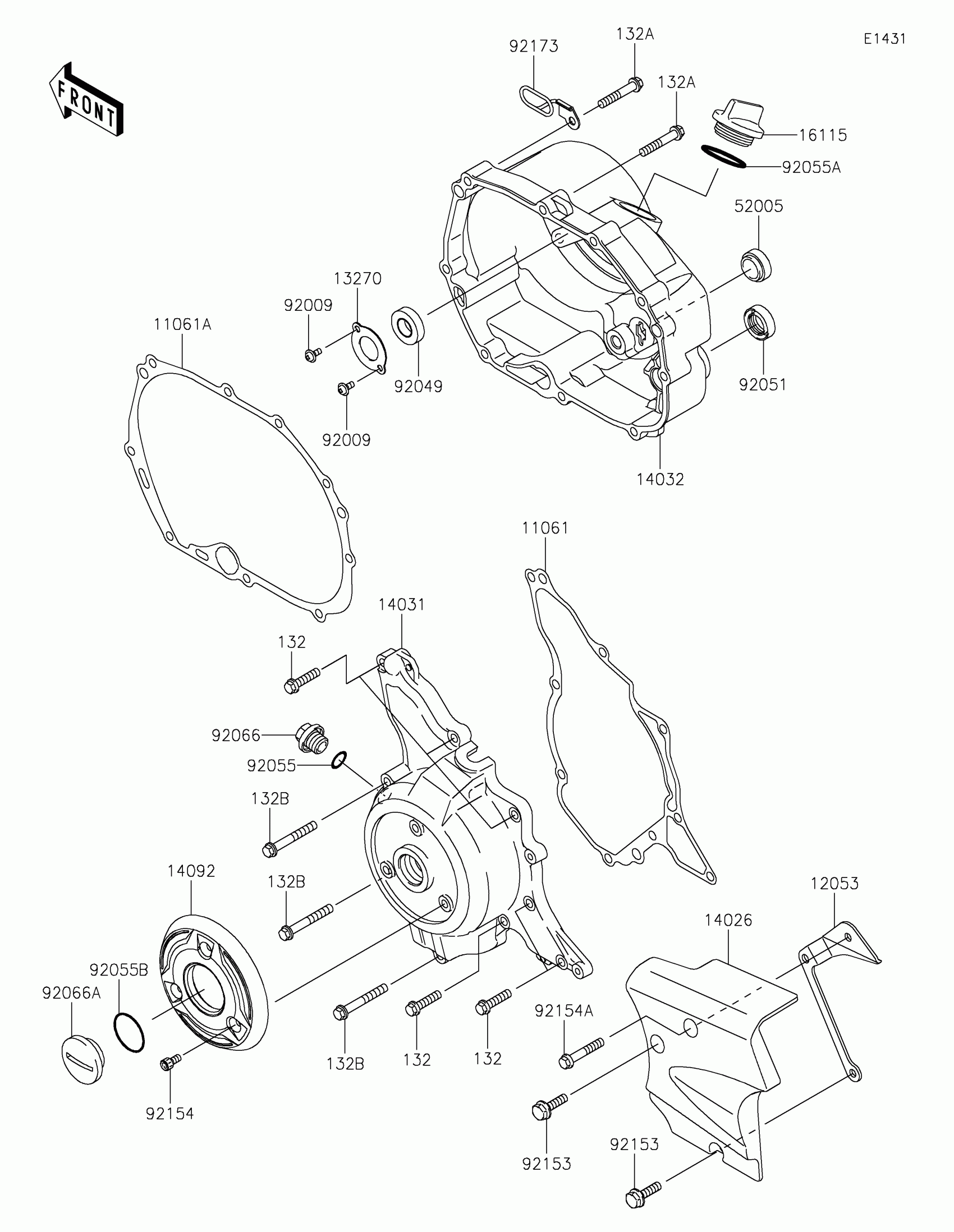

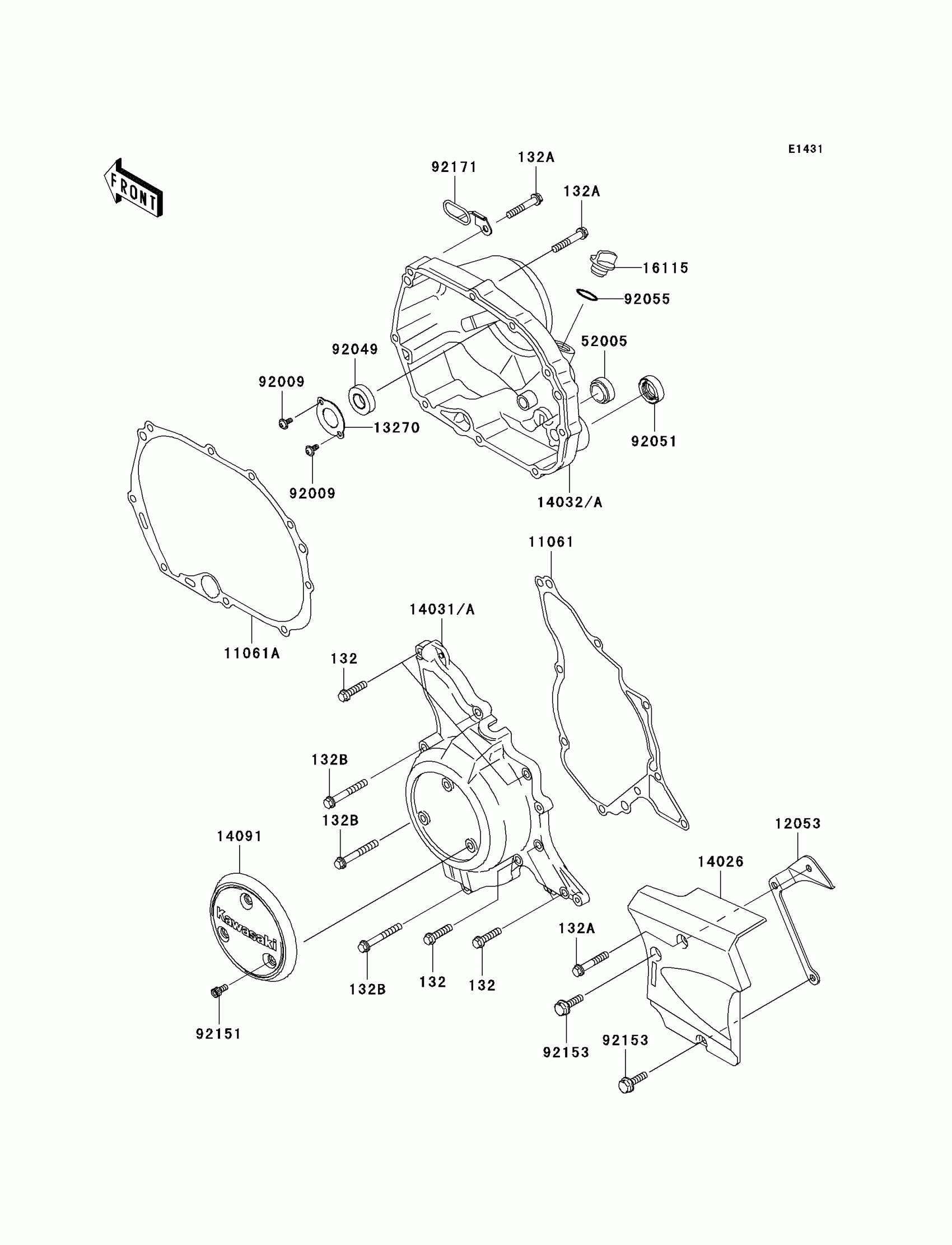

Find the part on the Engine Cover diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.28

In stock

132A

1

$3.28

In stock

132B

1

$4.17

In stock

11061

GASKET,GENERATOR

11061-0125

1

$5.01

In stock

11061A

GASKET,CLUTCH COVER

11061-0289

1

$5.82

In stock

12053

GUIDE-CHAIN,TENSION

12053-1467

1

$12.90

In stock

13270

PLATE

13270-1800

1
Out of stock

14026

COVER-CHAIN

14026-1285

1

$15.11

In stock

14031A

COVER-GENERATOR

14031-1342

1

$76.81

In stock

14032A

COVER-CLUTCH

14032-1529

1

$116.19

In stock

14091

1

$5.44

In stock

16115

CAP-OIL FILLER

16115-1068

1

$4.54

In stock

52005

GAUGE,OIL LEVEL

52005-0019

1

$11.67

In stock

92009

SCREW

92009-1745

1
Out of stock

92049

SEAL-OIL,AC0387E0

92049-1595

1
Out of stock

92051

SEAL-OIL,TB16267

92051-003

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92151

BOLT,SOCKET,5X10

92151-1212

1

$1.93

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock

92171

CLAMP,DRAIN TUBE

92171-1124

1

$13.54

In stock
