2009 Kawasaki KLX®110 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

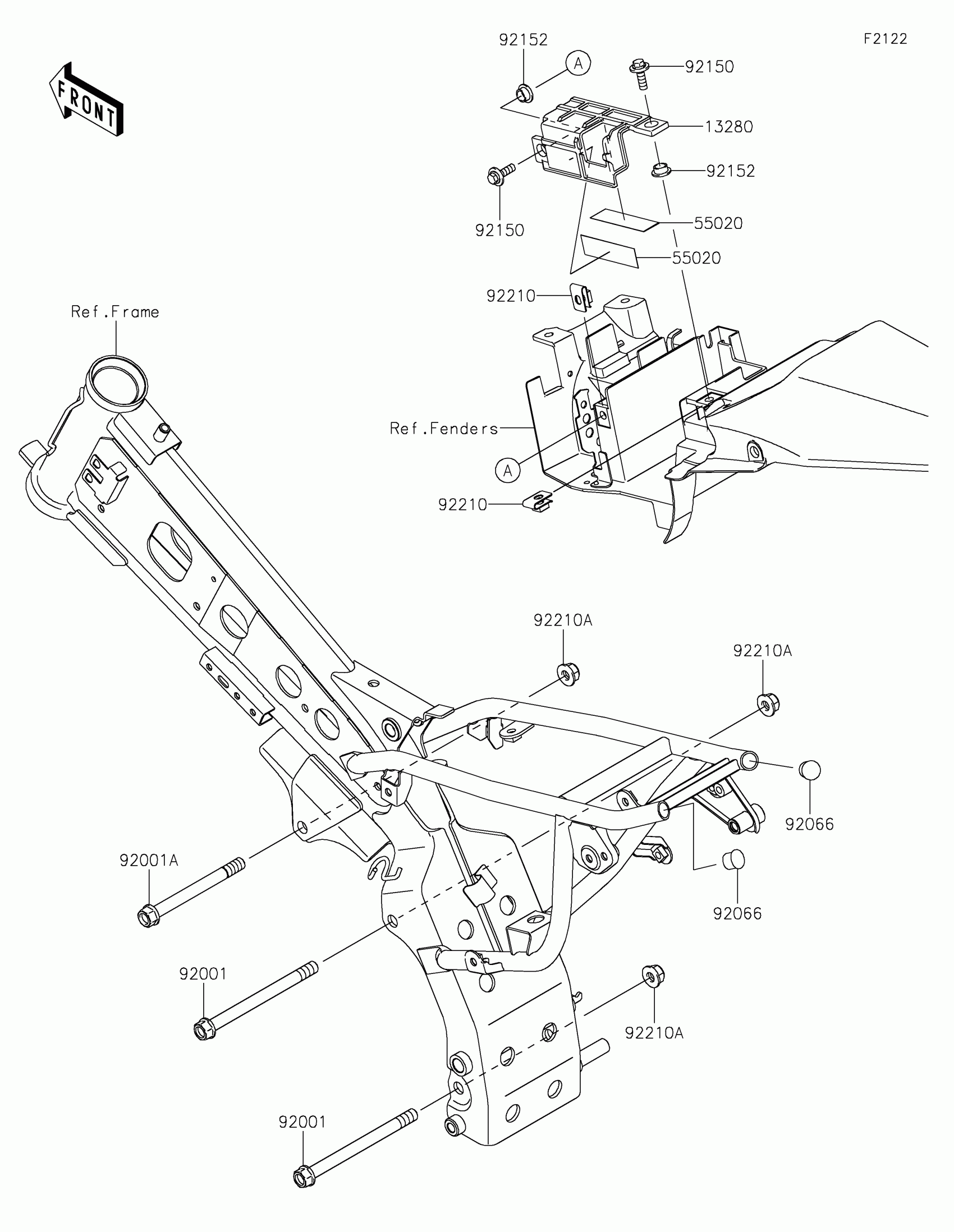

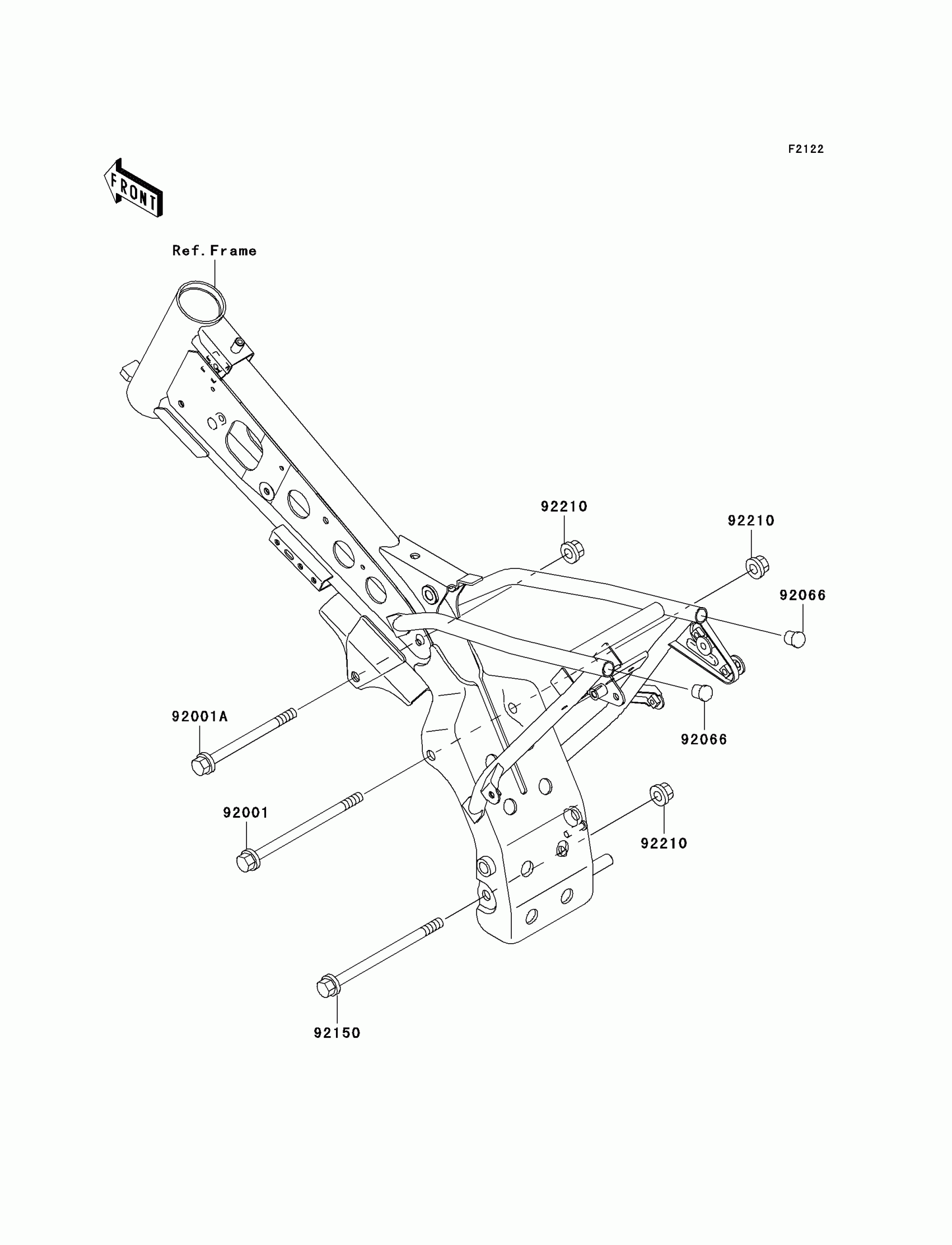

2009 Kawasaki KLX®110 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92001

BOLT,FLANGED,10X125

92001-1720

1

$9.03

In stock

92001A

1

$8.44

In stock

92066

PLUG

92066-1081

1

$6.83

In stock

92150

BOLT,FLANGED,10X120

92150-1831

1

$6.29

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
← Engine Cover Kickstarter Mechanism →
