2009 Kawasaki KLX®110 Kickstarter Mechanism Diagram

← All diagrams

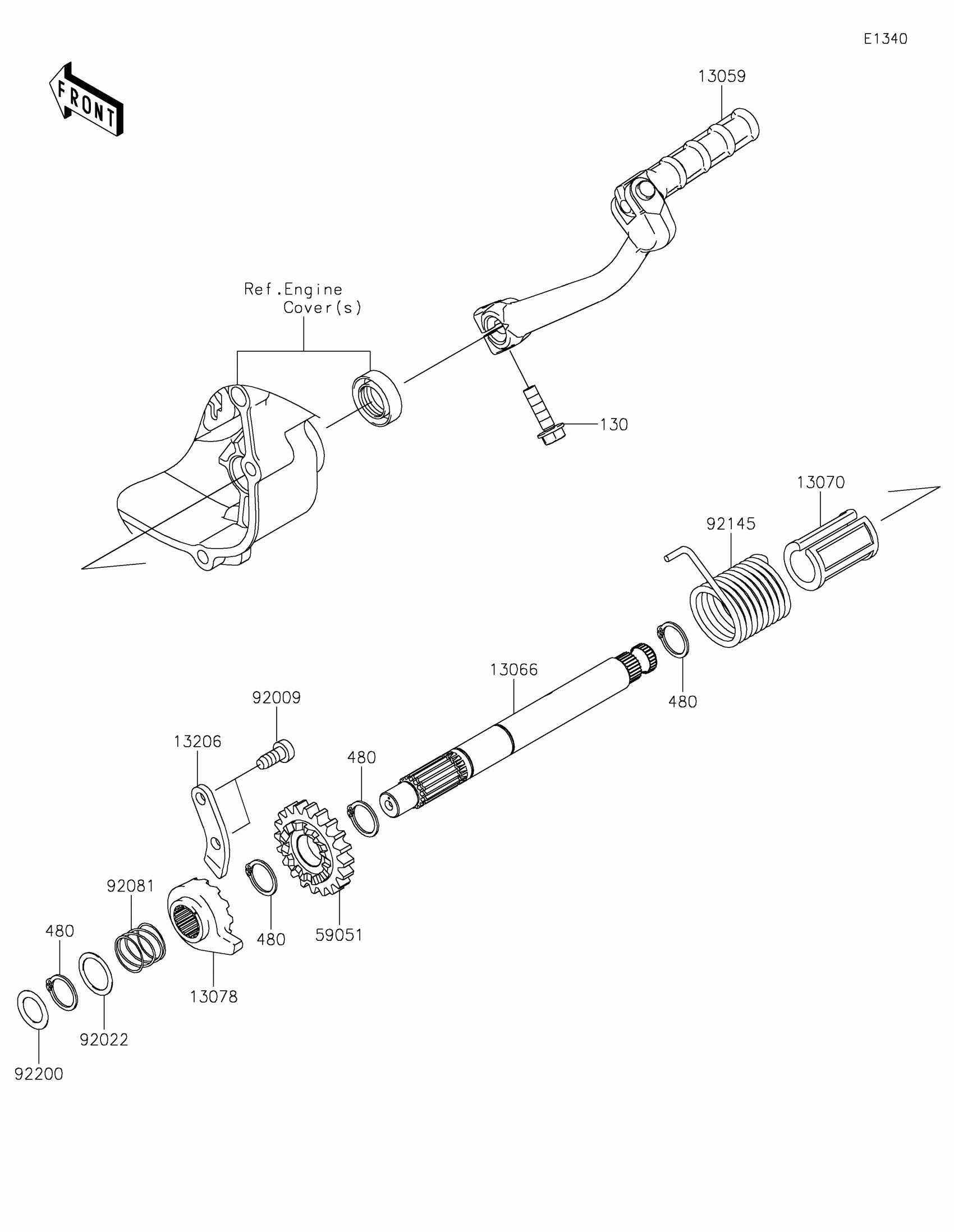

Find the part on the Kickstarter Mechanism diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130CA0622

1

$2.20

In stock

480

1

$3.43

In stock

13064

LEVER-ASSY-KICK

13064-0012

1
Out of stock

13066

SHAFT-KICK

13066-1108

1
Out of stock

13070

GUIDE,KICK SHAFT

13070-1035

1

$7.81

In stock

13078

RATCHET

13078-1069

1

$19.15

In stock

13206

GUIDE-KICK

13206-1006

1

$7.81

In stock

59051

1

$30.93

In stock

92009

SCREW,TAPPING

92009-1104

1
Out of stock

92022

WASHER,13.2X20X0.5

92022-1224

1

$3.43

In stock

92022A

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92081

SPRING,RATCHET

92081-122

1

$6.98

In stock

92081A

SPRING,KICK STARTER

92081-1276

1

$10.27

In stock

92161

DAMPER,PEDAL

92161-0030

1

$3.58

In stock
