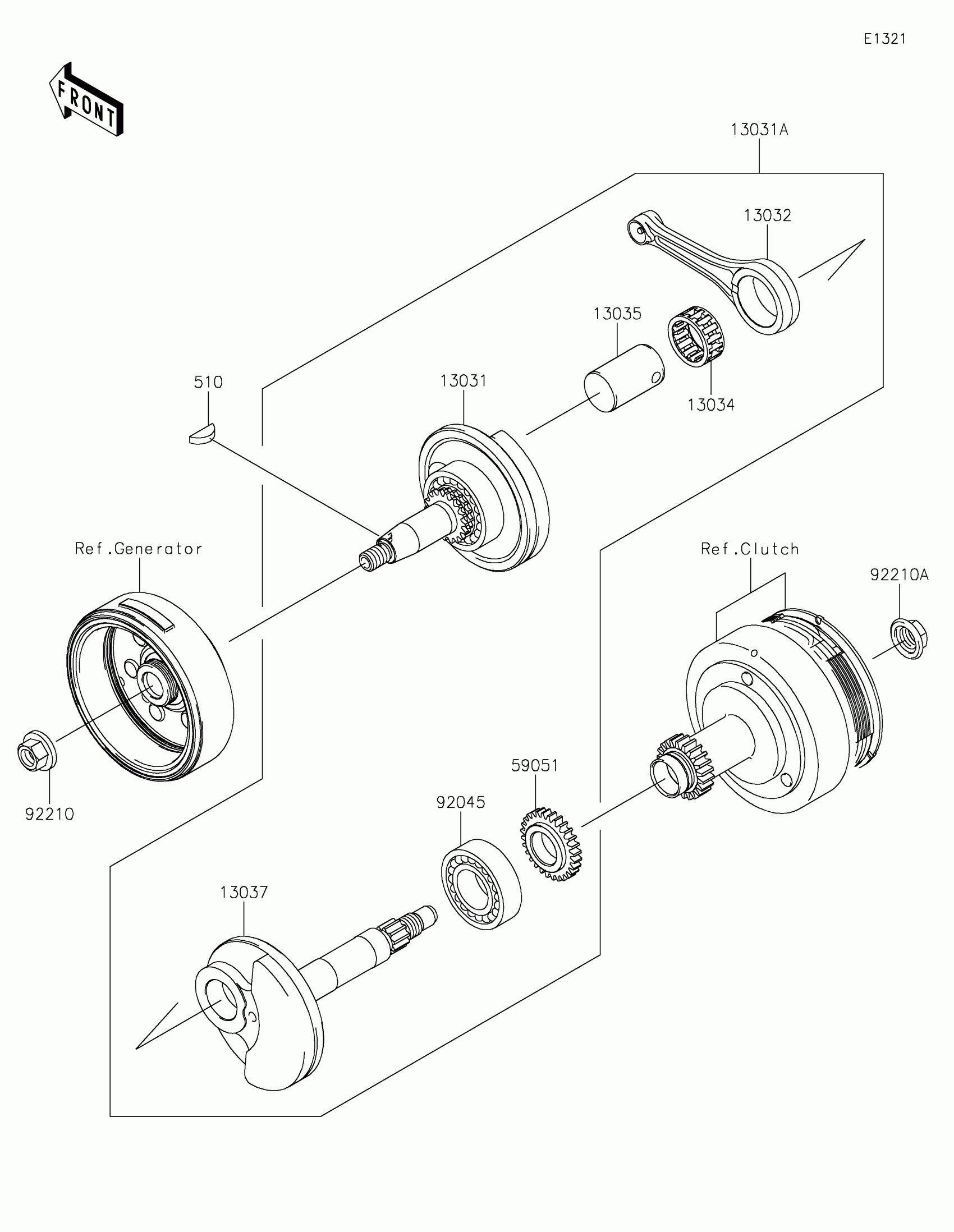

Find the part on the Crankshaft diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

13031

CRANKSHAFT-COMP,LH

13031-0011

1

$88.52

In stock

13031A

CRANKSHAFT-COMP

13031-0082

1

$279.06

In stock

13032

ROD-CONNECTING

13032-1277

1

$50.29

In stock

13034

1

$36.00

In stock

13035

PIN-CRANK

13035-1092

1

$20.53

In stock

13037

CRANKSHAFT,RH

13037-0128

1

$124.01

In stock

59051

GEAR-SPUR

59051-1402

1

$9.07

In stock

92045

1

$34.75

In stock

92210

NUT,14MM

92210-1374

1
Out of stock

92210A

NUT,FLANGED,12MM

92210-1375

1
Out of stock
