2009 Kawasaki KLX®110 Cylinder Head Diagram

← All diagrams

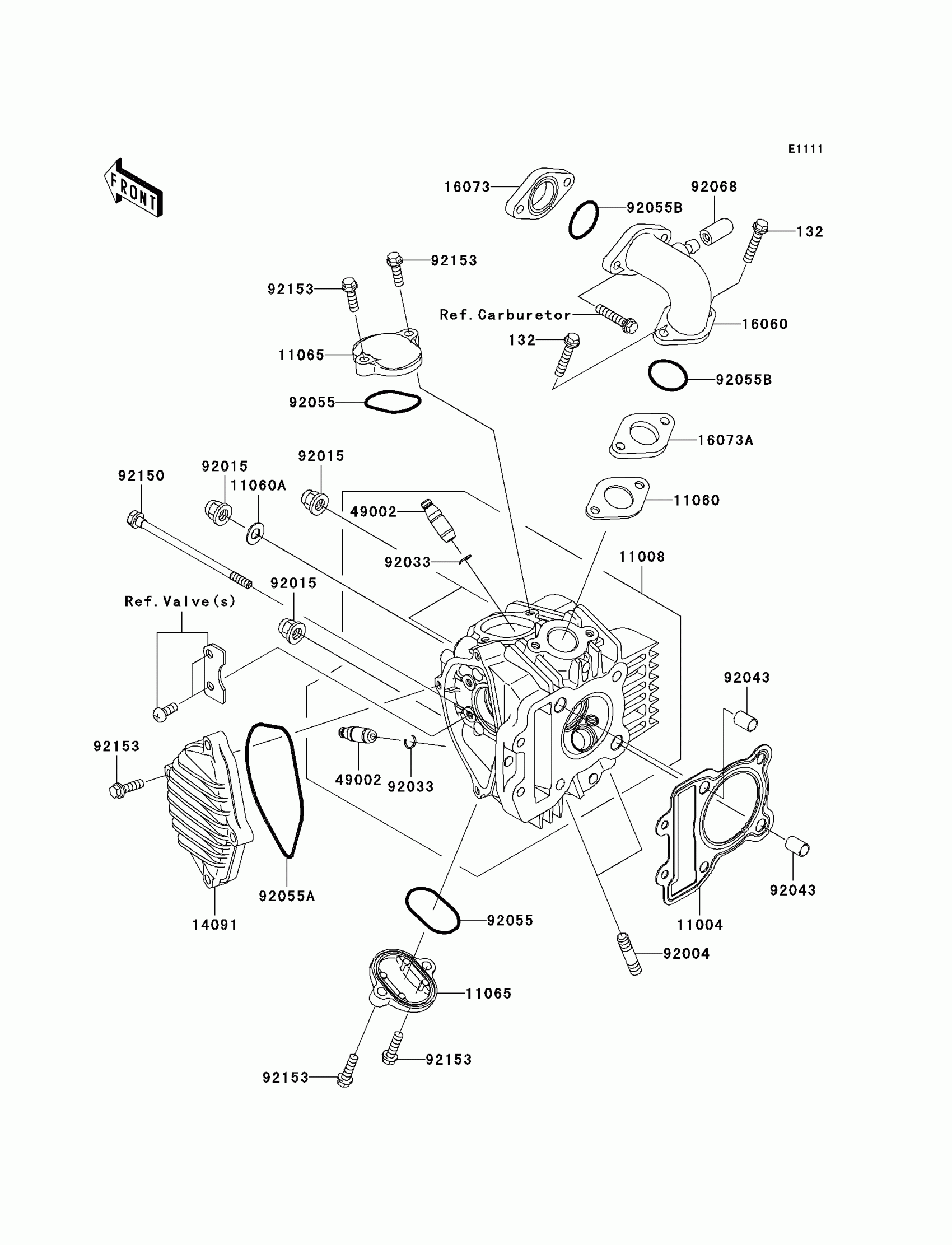

Find the part on the Cylinder Head diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.92

In stock

11004

GASKET-HEAD

11004-1338

1

$9.49

In stock

11008

HEAD-COMP-CYLINDER

11008-1431

1

$415.52

In stock

11060

GASKET,INTAKE PIPE

11060-1753

1

$2.37

In stock

11060A

GASKET

11060-1862

1

$2.37

In stock

11065

CAP,VALVE ADJUSTING

11065-1177

1

$22.83

In stock

14091

COVER,CAMSHAFT

14091-1447

1

$7.41

In stock

16060

PIPE-INTAKE

16060-1079

1

$22.69

In stock

16073

1

$5.84

In stock

16073A

INSULATOR,HEAD

16073-1108

1

$2.53

In stock

49002

GUIDE-VALVE

49002-1130

—

$23.17

In stock

92004

STUD,8X28.5

92004-1234

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92033

RING-SNAP

92033-1247

1

$3.11

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,ADJUST CAP

92055-1231

1

$8.37

In stock

92055A

RING-O,91X2.5

92055-1527

1

$9.67

In stock

92055B

RING-O,25.5X2.0

92055-1528

1

$6.41

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock

92150

BOLT,6X106

92150-1761

1

$6.56

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock
