2014 Kawasaki KLR650 New Edition Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

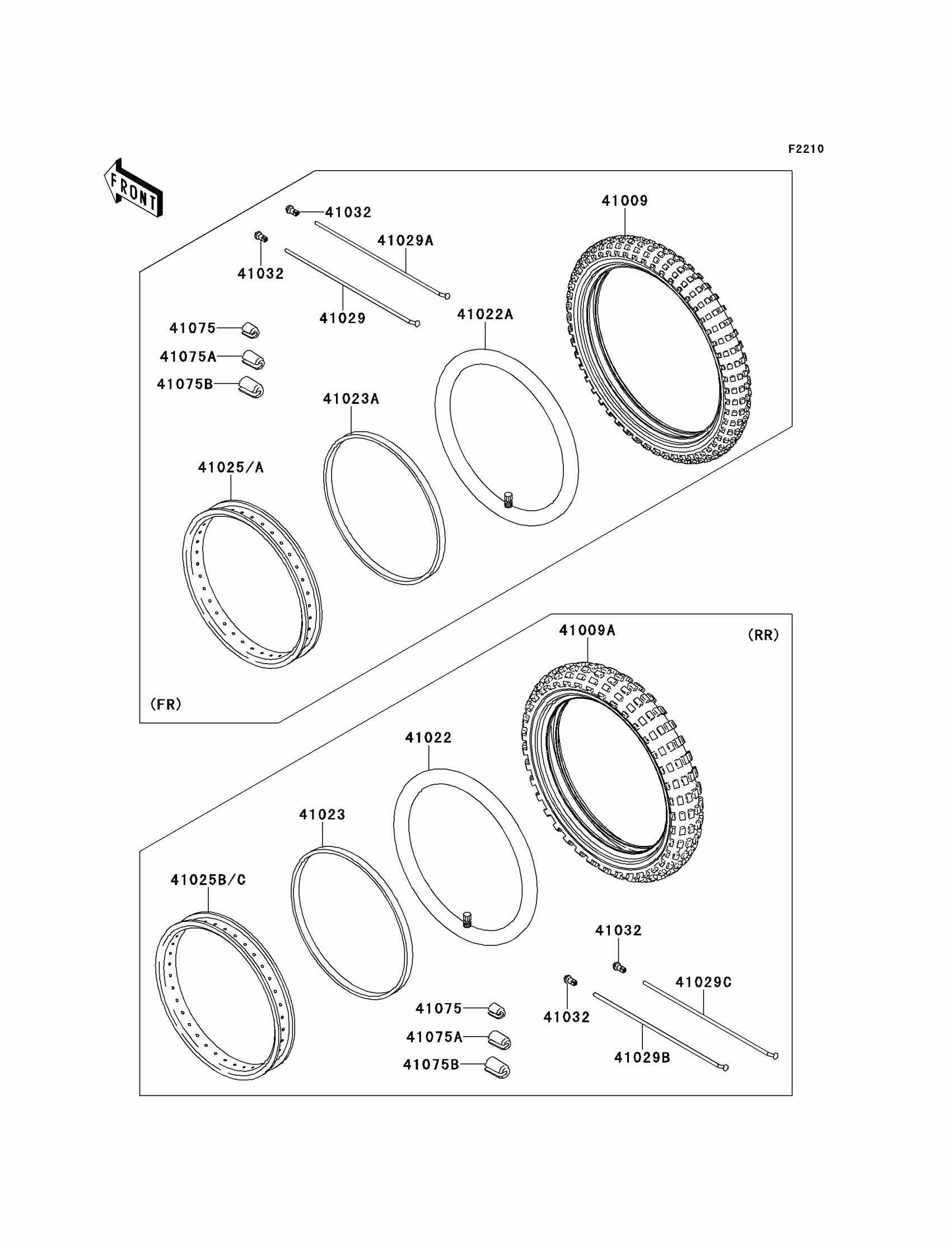

2014 Kawasaki KLR650 New Edition Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$77.40

In stock

41009A

1

$103.26

In stock

41022

1

$18.33

In stock

41022A

TUBE-TIRE,FR,80/100-21(D)

41022-1244

1
Out of stock

41023

BAND-RIM,17XWM/MT2.15-2.50(D)

41023-0001

1
Out of stock

41023A

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

1
Out of stock

41025A

RIM,FR,1.60X21,BLACK

41025-0033-WC

1
Out of stock

41025C

RIM,RR,2.50X17,BLACK

41025-1445-WC

1
Out of stock

41029

SPOKE-INNER,FR,LH,4X236

41029-0065

1
Out of stock

41029A

SPOKE-INNER,FR,RH,4X239

41029-0066

1
Out of stock

41029B

SPOKE-INNER,RR,LH,4X155

41029-0067

1
Out of stock

41029C

SPOKE-INNER,RR,RH,4X178

41029-0068

1
Out of stock

41032

NIPPLE-SPOKE

41032-0013

—

$2.66

In stock

41075

BALANCER-WHEEL,10G

41075-0011

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-0012

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-0013

—
Out of stock
