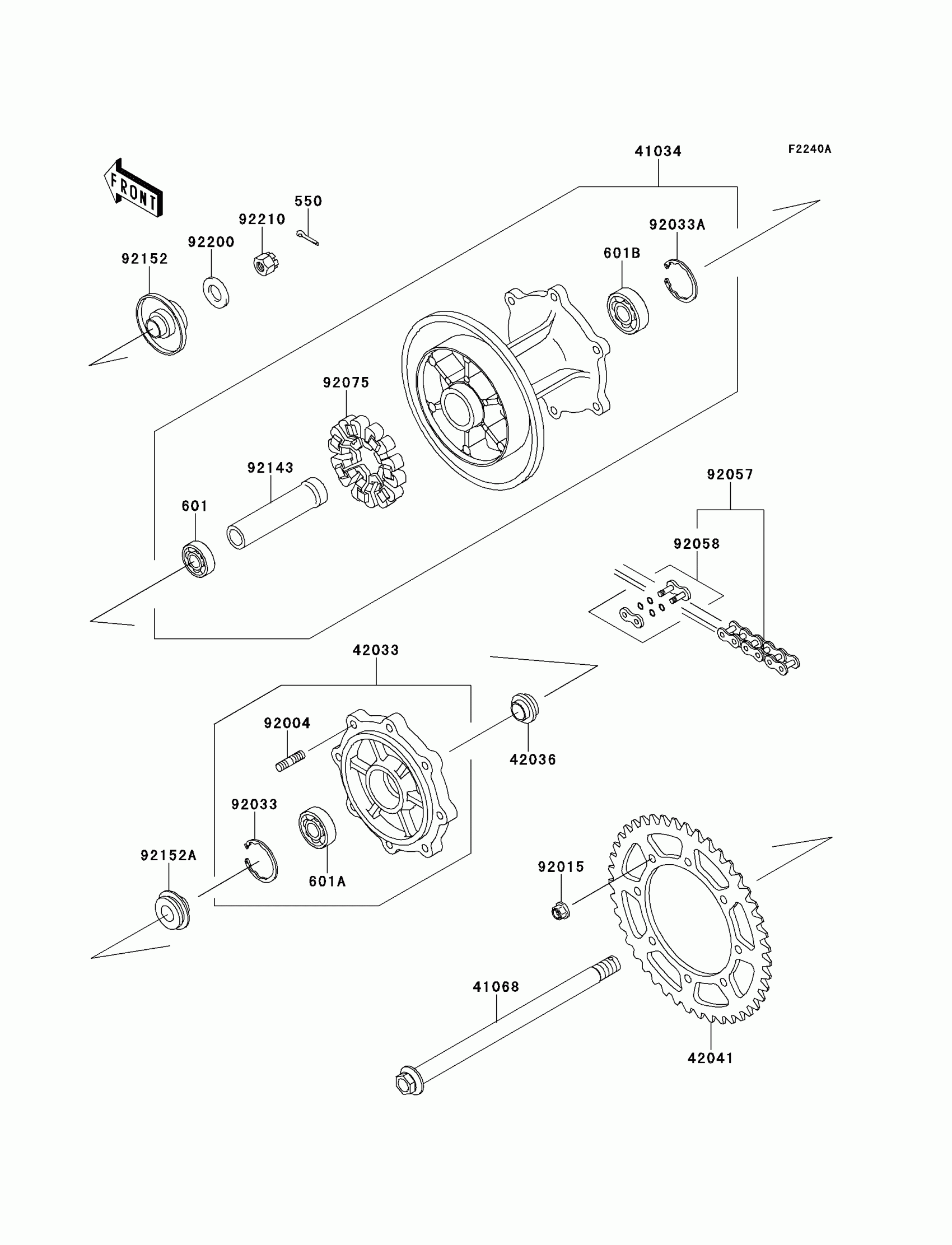

Kawasaki KLR650 New Edition Rear Hub(ECF-EES) Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6003G

601B6003G

$16.78

601A

BEARING-BALL,#6004UG

601B6004UG

$33.13

601B

BEARING-BALL,#6204UG

601B6204UG

$30.34

41034

DRUM-ASSY,REAR BRAKE,F.BLACK

41034-0041-21

$630.48

41068

AXLE,RR

41068-0056

$88.23

42033

COUPLING-ASSY,REAR HUB

42033-1112

$229.32

42036

SLEEVE

42036-0074

$22.85

42041

SPROCKET-HUB,43T

42041-1260

$67.76

92004

STUD,8X16

92004-1150

$4.14

92015

NUT,8MM

92015-1432

$4.93

92033

RING-SNAP,42MM

92033-1041

$4.64

92033A

RING-SNAP,47MM

92033-1042

$3.25

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

$217.46

92058

JOINT-CHAIN,DRIVE

92058-1102

$11.43

92075

DAMPER,SHOCK,RR HUB

92075-1068

$42.39

92143

COLLAR,REAR BRAKE DRUM,L=113

92143-1060

$36.42

92152

COLLAR,L=30MM

92152-0851

$21.15

92152A

COLLAR,L=17MM

92152-0852

$24.12

92200

WASHER,17.3X32X3.2

92200-0563

$3.49

92210

NUT,CASTLE,16MM

92210-1171

$11.17
