2014 Kawasaki KLR650 New Edition Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

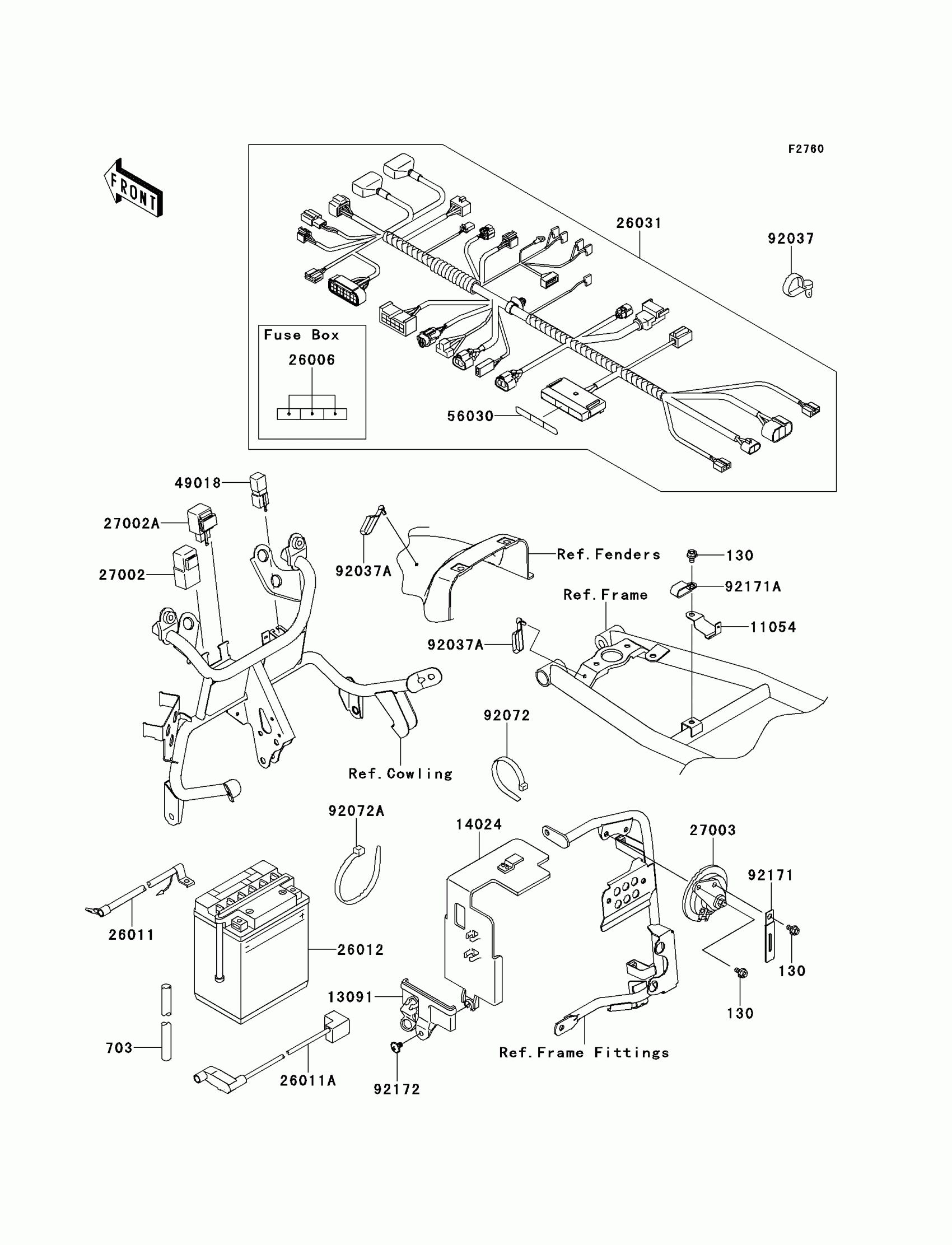

2014 Kawasaki KLR650 New Edition Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

703

1

$19.49

In stock

11054

BRACKET,FUSE CASE

11054-0717

1

$10.93

In stock

13091

1

$14.99

In stock

14024

COVER,BATTERY

14024-1375

1
Out of stock

26006

1

$5.34

In stock

26011

1

$38.57

In stock

26011A

1

$38.57

In stock

26012

1

$115.04

In stock

26031

HARNESS,MAIN

26031-0908

1

$514.17

In stock

27002

RELAY-ASSY

27002-1088

1

$38.14

In stock

27002A

1

$73.74

In stock

27003

HORN

27003-0049

1

$84.92

In stock

49018

DIODE

49018-0005

1

$42.75

In stock

56030

LABEL,FUSE BOX

56030-0142

1

$1.80

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92171

1

$1.59

In stock

92171A

CLAMP

92171-1597

1

$9.37

In stock

92172

SCREW,6X10

92172-0005

1

$2.00

In stock
