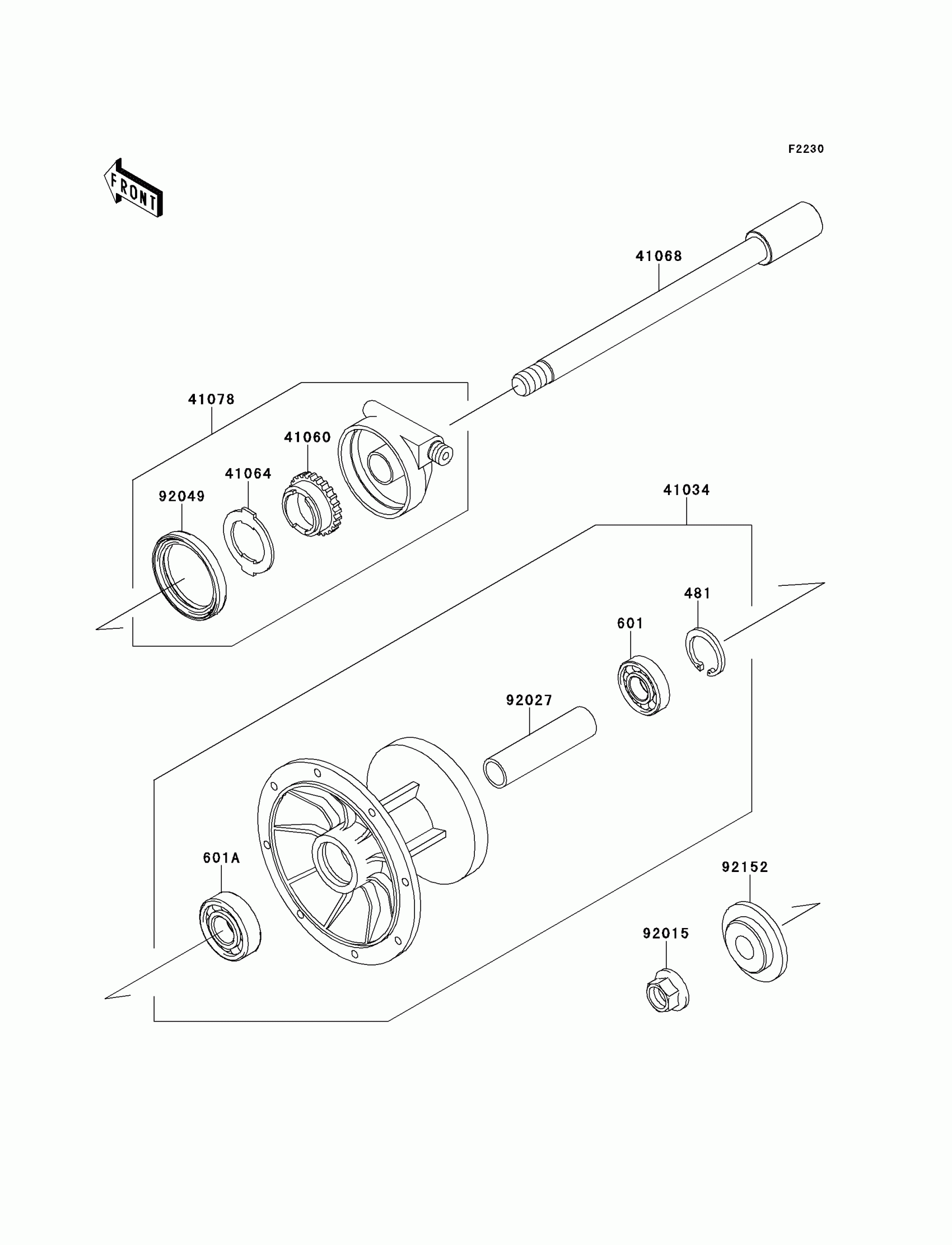

Kawasaki KLR650 New Edition Front Hub Diagram

Description

Price

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL,#6202UG

601B6202UG

$15.51

601A

BEARING-BALL,#6203UG

601B6203UG

$34.89

41034

DRUM-ASSY,FRONT BRAKE,F.BLACK

41034-0040-21

$593.60

41060

GEAR-METER SCREW,24T

41060-1101

$21.94

41064

RECEIVER-SPEEDOMETER

41064-1051

$8.99

41068

AXLE,FR

41068-0055

$75.22

41078

CASE-ASSY-METER GEAR

41078-1051

$92.02

92015

NUT,14MM

92015-1407

$7.54

92027

COLLAR,FRONT BRAKE DRUM,L=79

92027-1683

$39.84

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$16.81

92152

COLLAR

92152-0850

$14.24
