2014 Kawasaki KLR650 New Edition Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

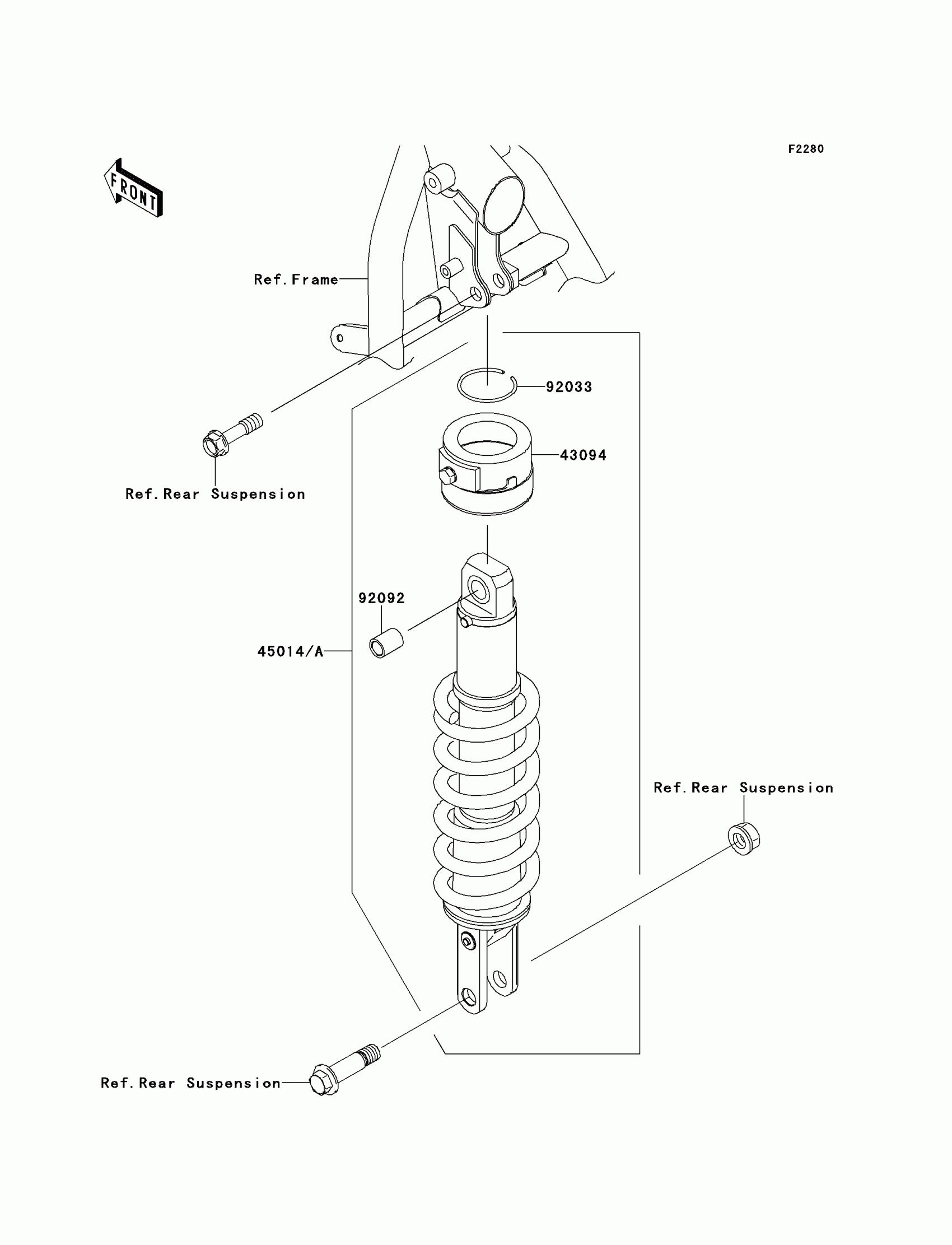

2014 Kawasaki KLR650 New Edition Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43094

ADJUSTER

43094-0002

1
Out of stock

45014A

SHOCKABSORBER,P.SILVER

45014-0448-458

1
Out of stock

92033

RING-SNAP

92033-1233

1
Out of stock

92092

BUSHING-RUBBER

92092-1063

1
Out of stock
