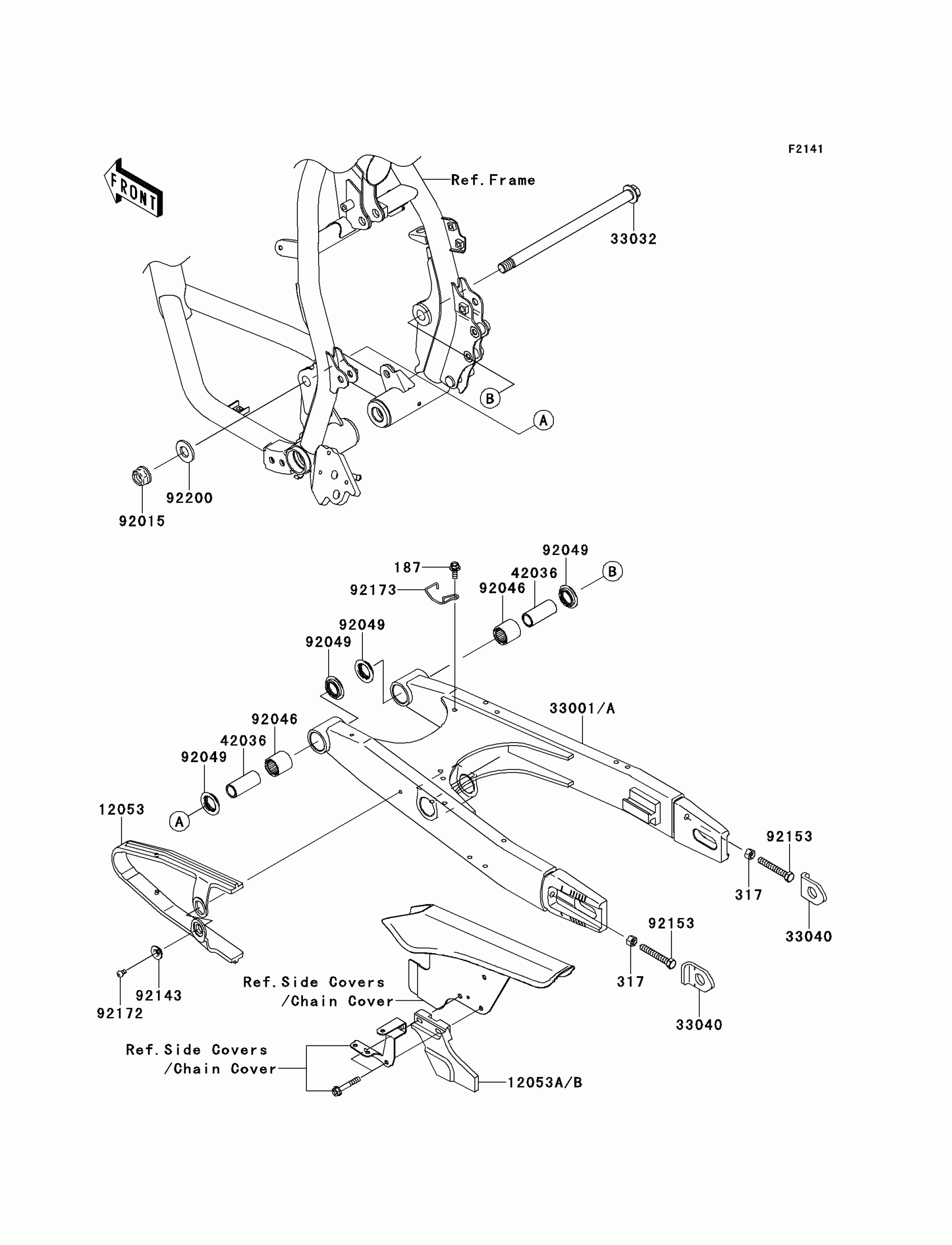

Kawasaki KLR650 New Edition Swingarm Diagram

Description

Price

187

BOLT-UPSET-WSP,6X16

187BA0616

$1.28

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24

12053

GUIDE-CHAIN

12053-0082

$46.38

12053A

GUIDE-CHAIN,RR

12053-0188

$69.69

33001

ARM-COMP-SWING,F.S.BLACK

33001-0207-18R

$989.14

33032

SHAFT-SWING ARM

33032-1128

$74.81

33040

ADJUSTER-CHAIN

33040-0033

$17.61

42036

SLEEVE,15X20X47.5

42036-1204

$18.14

92015

NUT,14MM

92015-1459

$7.54

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92049

SEAL-OIL,ARM

92049-1109

$7.08

92143

COLLAR

92143-1676

$4.67

92153

BOLT,8X55

92153-1407

$1.57

92172

SCREW-PAN-CROSS,5X8,TB

92172-0478

$1.95

92173

CLAMP

92173-0209

$6.04

92200

WASHER,16X32X3.2

92200-0559

$5.00
