2014 Kawasaki KLR650 New Edition Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

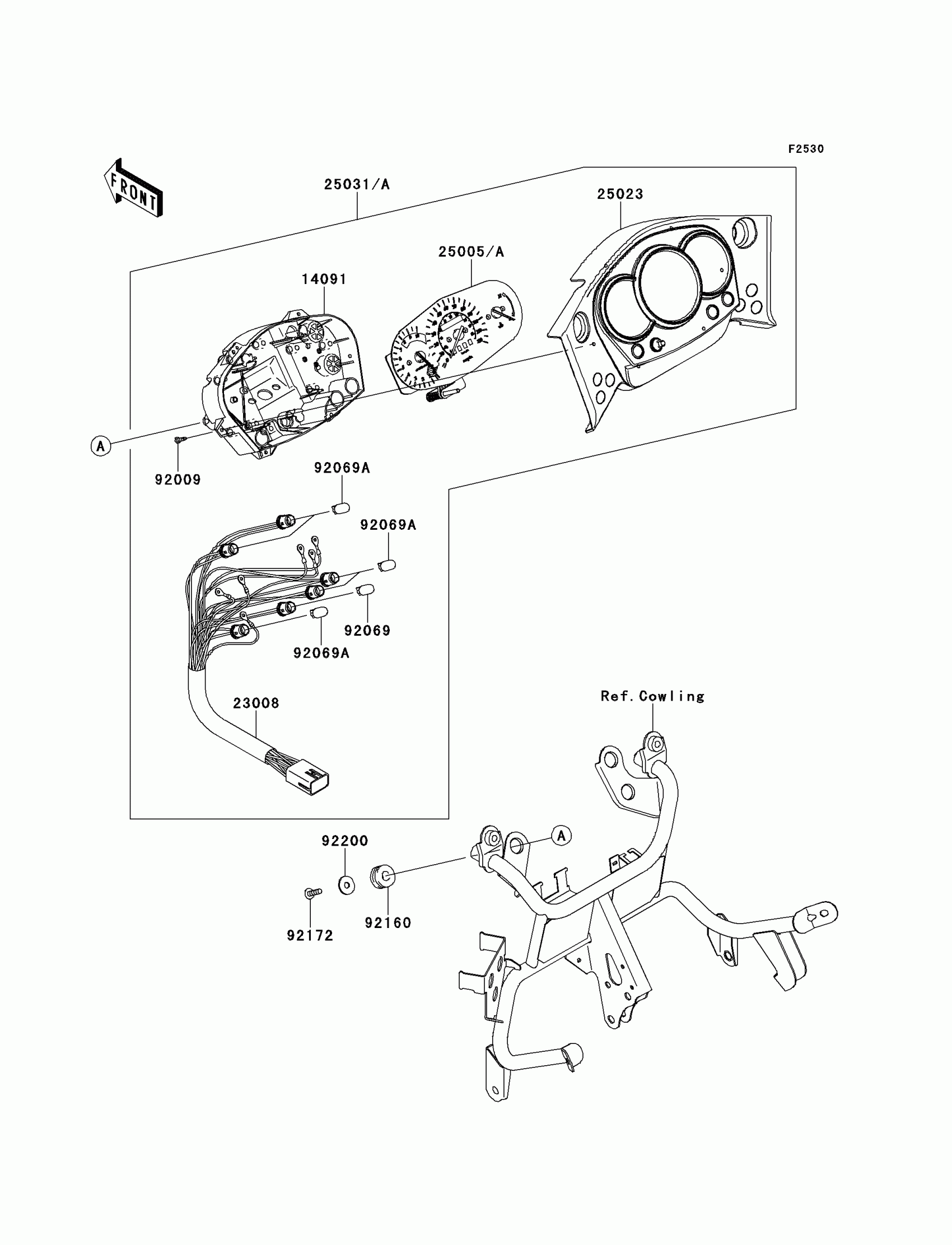

2014 Kawasaki KLR650 New Edition Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-0723

1
Out of stock

23008

SOCKET-ASSY,METER

23008-0067

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0030

1
Out of stock

92009

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-0022

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1116

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0265

1
Out of stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

25005

SPEEDOMETER,MPH/KPH

25005-0079

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-0080

1
Out of stock

25031

METER-ASSY,MPH&KPH

25031-0344

1
Out of stock

25031A

METER-ASSY,KPH

25031-0345

1
Out of stock
