2014 Kawasaki KLR650 New Edition Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

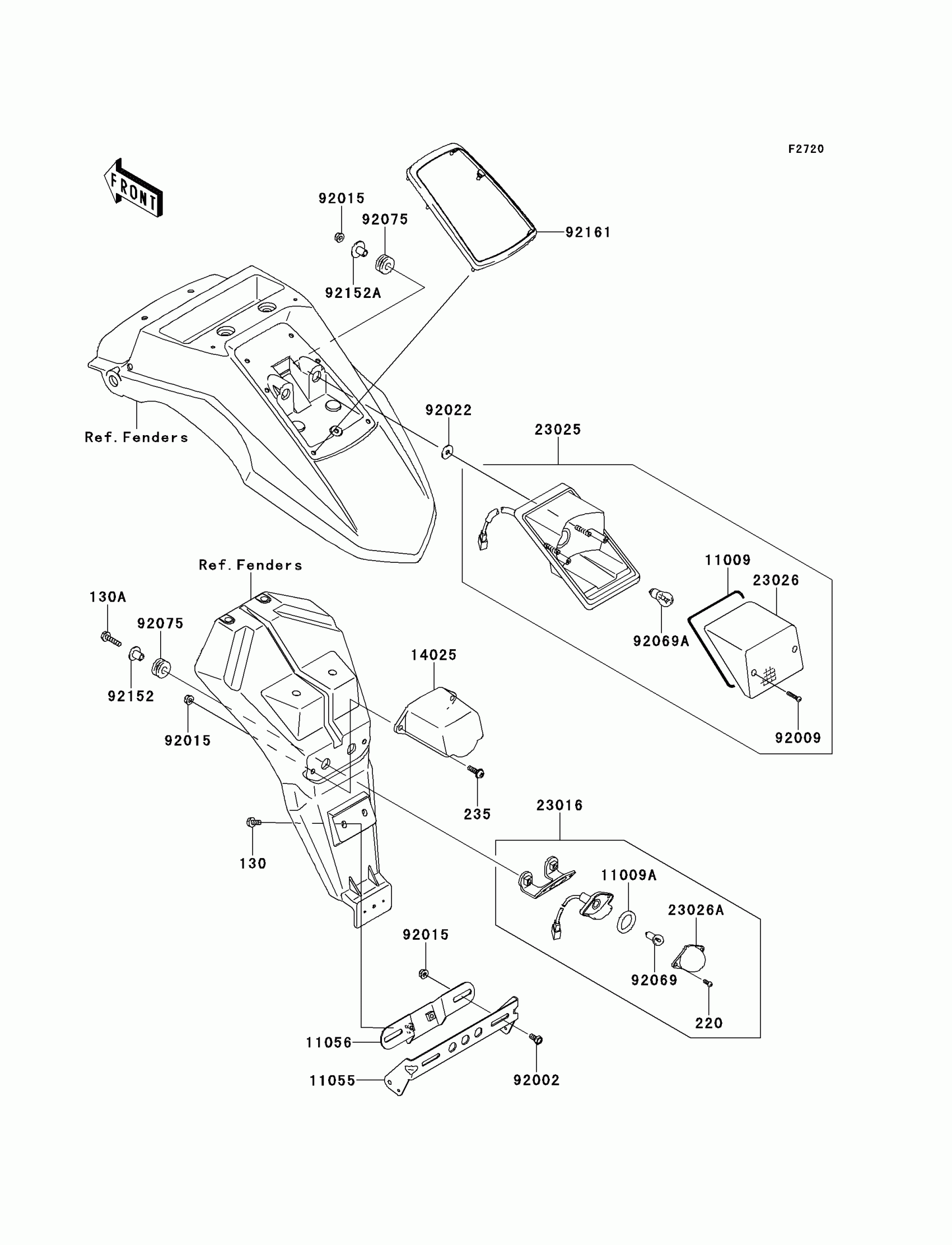

2014 Kawasaki KLR650 New Edition Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

220

SCREW-PAN-CROS,4X10

220AA0410

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235AB0620

1
Out of stock

11009

GASKET,TAIL LAMP

11009-1371

1
Out of stock

11009A

GASKET,LICENSE PLATE LAMP

11009-1372

1
Out of stock

11055

BRACKET,REFLECTOR

11055-1092

1

$33.99

In stock

11056

1

$18.61

In stock

14025

1

$18.66

In stock

23016

LAMP-ASSY,LICENSE

23016-0011

1
Out of stock

23025

LAMP-TAIL

23025-0031

1
Out of stock

23026

LENS,TAIL LAMP

23026-1053

1
Out of stock

23026A

LENS,LAMP

23026-1054

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92069

BULB,12V 5W

92069-1055

1
Out of stock

92069A

BULB,12V 21/5W

92069-1084

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92152

COLLAR

92152-0344

1
Out of stock

92152A

COLLAR

92152-0562

1
Out of stock

92161

DAMPER,TAIL LAMP

92161-0504

1
Out of stock
