2014 Kawasaki KLR650 New Edition Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

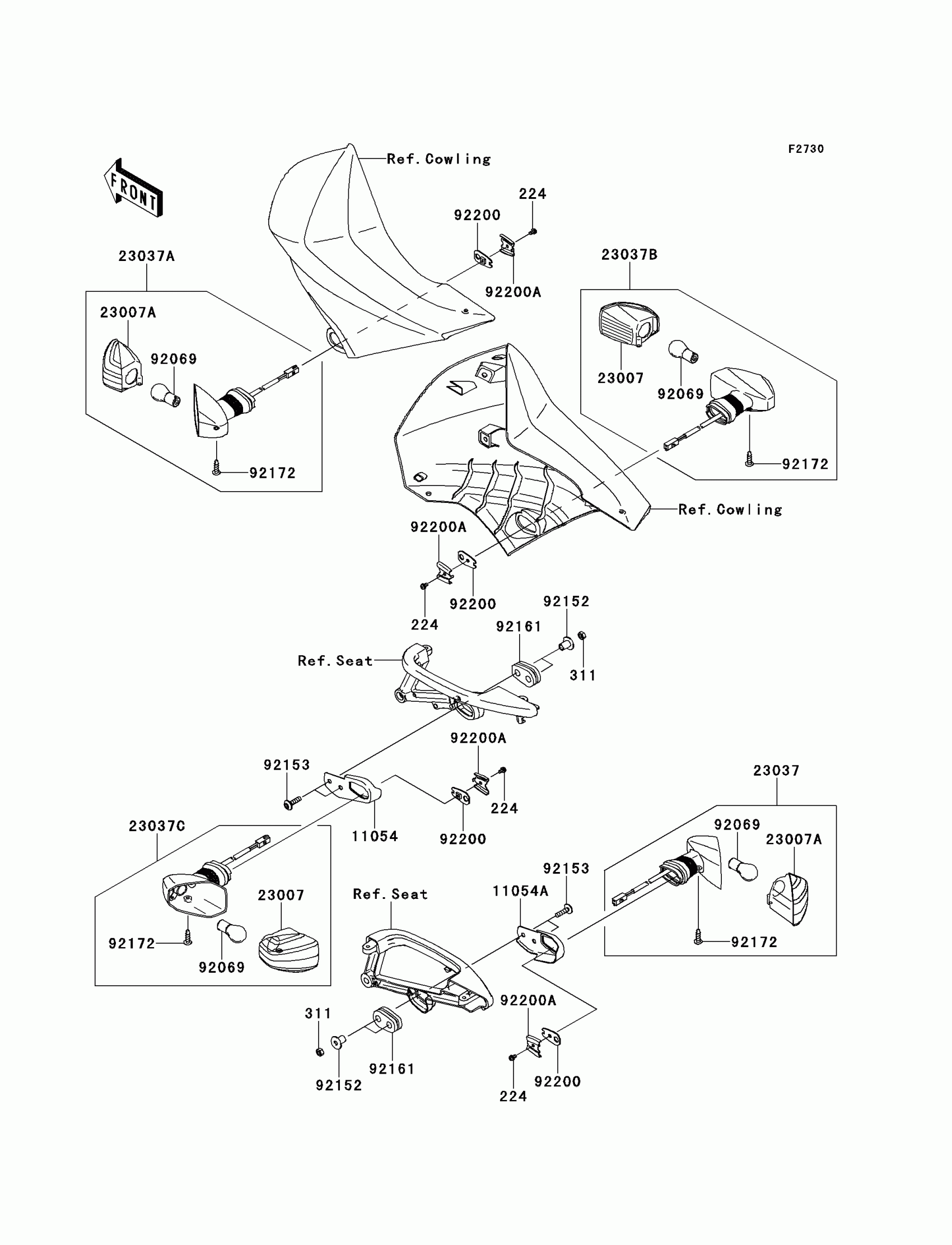

2014 Kawasaki KLR650 New Edition Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock

311

NUT-HEX,6MM

311BA0600

1

$1.64

In stock

11054

1

$40.07

In stock

11054A

1

$40.07

In stock

23007

1

$29.30

In stock

23007A

1

$29.30

In stock

23037

1

$82.28

In stock

23037A

1

$67.82

In stock

23037B

1

$67.82

In stock

23037C

1

$67.82

In stock

92069

BULB,12V 21W

92069-1125

1

$6.76

In stock

92152

COLLAR

92152-0604

1

$6.90

In stock

92153

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92161

DAMPER,SIGNAL LAMP

92161-0526

1

$5.00

In stock

92172

SCREW,TAPPING 4X12

92172-0242

1

$3.14

In stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock
