2014 Kawasaki KLR650 New Edition Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

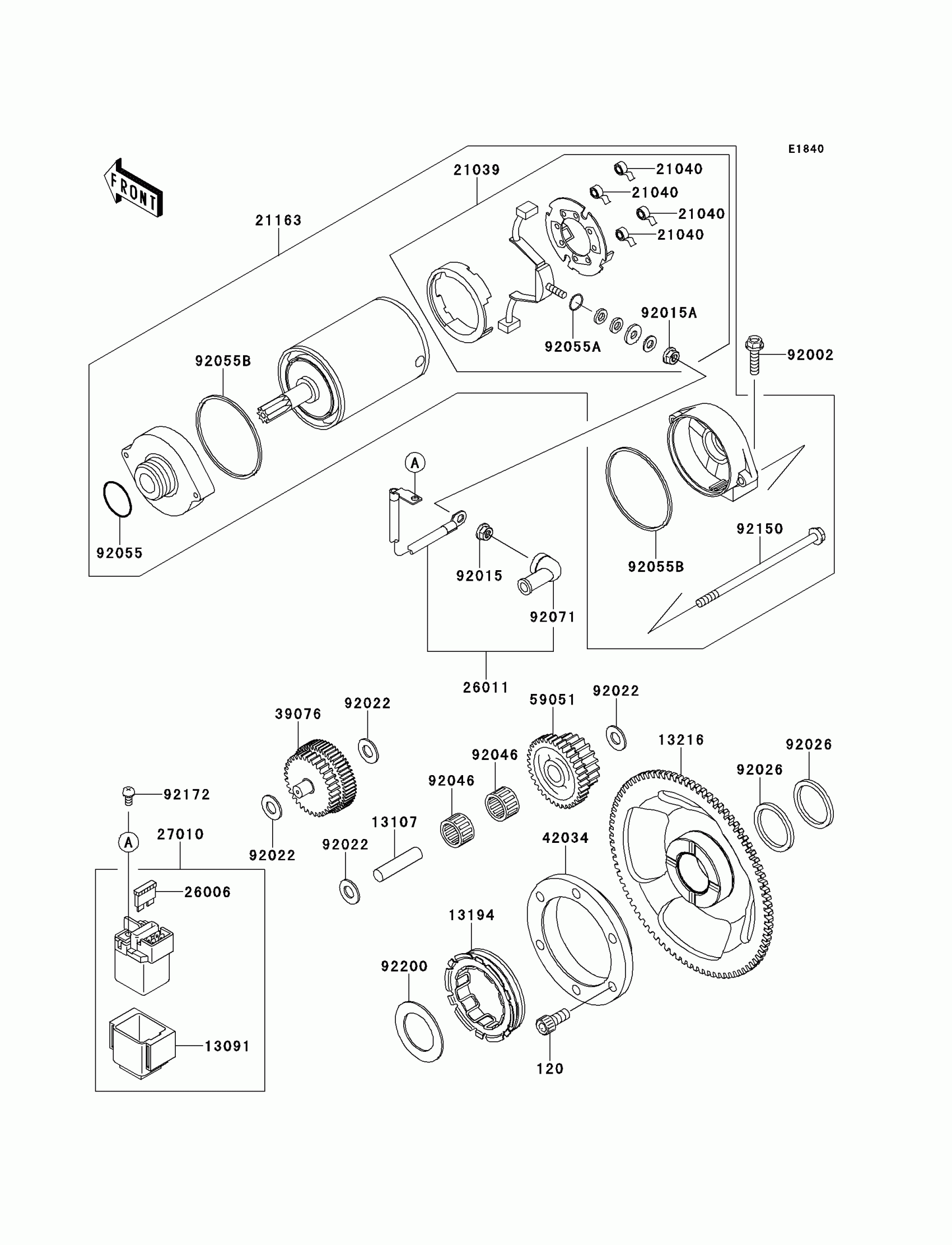

2014 Kawasaki KLR650 New Edition Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X18

120CA0818

1
Out of stock

13091

HOLDER,SWITCH

13091-1883

1

$7.47

In stock

13107

SHAFT,IDLER

13107-1135

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1089

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0044

1
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-1108

1
Out of stock

26006

FUSE,BLADE,20A,YELLOW

26006-1051

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-0781

1
Out of stock

27010

SWITCH

27010-1336

1
Out of stock

39076

1

$219.02

In stock

42034

COUPLING

42034-1094

1
Out of stock

59051

GEAR-SPUR,20T & 37T

59051-1133

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92026

SPACER

92026-1474

1
Out of stock

92046

BEARING-NEEDLE,K10X14X10

92046-1134

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92071

GROMMET

92071-0705

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1913

1
Out of stock

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

1
Out of stock

92200

WASHER,32.2X50

92200-0555

1
Out of stock
