2025 Kawasaki KLR650 Adventure ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

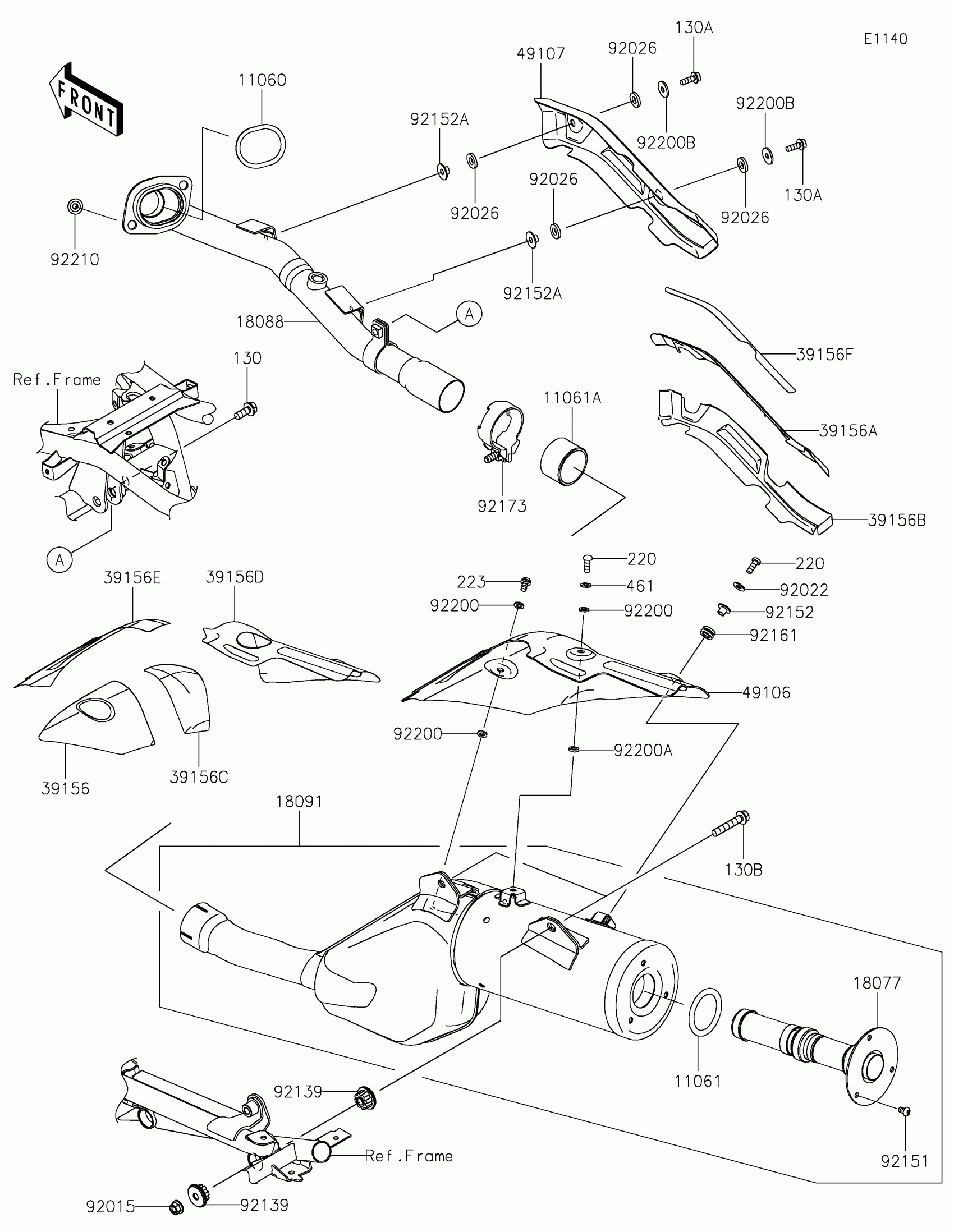

2025 Kawasaki KLR650 Adventure ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

1
Out of stock

11061

GASKET

11061-1345

1
Out of stock

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1411

1
Out of stock

18077

ARRESTER-SPARK

18077-0050

1
Out of stock

18088

PIPE-EXHAUST

18088-1665

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1268

1
Out of stock

39156

PAD,MUFFLER COVER,FR

39156-2693

1
Out of stock

39156A

PAD,EXHAUST PIPE COVER,CNT

39156-2698

1
Out of stock

39156B

PAD,EXHAUST PIPE COVER,LWR

39156-2699

1
Out of stock

39156C

PAD,MUFFLER COVER,CNT

39156-2738

1
Out of stock

39156D

PAD,MUFFLER COVER,RR

39156-2773

1
Out of stock

39156E

PAD,MUFFLER COVER,UPP

39156-2774

1
Out of stock

39156F

PAD,EXHAUST PIPE COVER,UPP

39156-2798

1
Out of stock

49106

COVER-MUFFLER

49106-0857

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-0849

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92022

WASHER,6.2X15X1.2

92022-2373

1
Out of stock

92026

SPACER,8.7X18X3

92026-0919

1
Out of stock

92139

BUSHING

92139-1116

1
Out of stock

92151

BOLT,SOCKET,6X10

92151-1449

1
Out of stock

92152

COLLAR

92152-2837

1
Out of stock

92152A

COLLAR

92152-2862

1
Out of stock

92161

DAMPER

92161-2434

1
Out of stock

92173

CLAMP

92173-2463

1
Out of stock

92200

WASHER,6.2X11.5X1.5

92200-2496

1
Out of stock

92200A

WASHER,6.2X11.5X2.5

92200-2511

1
Out of stock

92200B

WASHER,6.5X20X2

92200-2529

1
Out of stock

92210

NUT,8MM

92210-1114

1
Out of stock

130

BOLT-FLANGED,8X20

130BD0820

1

$2.29

In stock

130A

BOLT-FLANGED,6X18

130CB0618

1
Out of stock

130B

BOLT-FLANGED

130CC0845

1

$3.15

In stock

220

SCREW-PAN-CROS,6X16

220AB0616

1
Out of stock

223

SCREW-PAN-WS-CROS,6X12

223AB0612

1
Out of stock

461

WASHER-SPRING,6MM

461DB0600

1
Out of stock
