2025 Kawasaki KLR650 Adventure ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

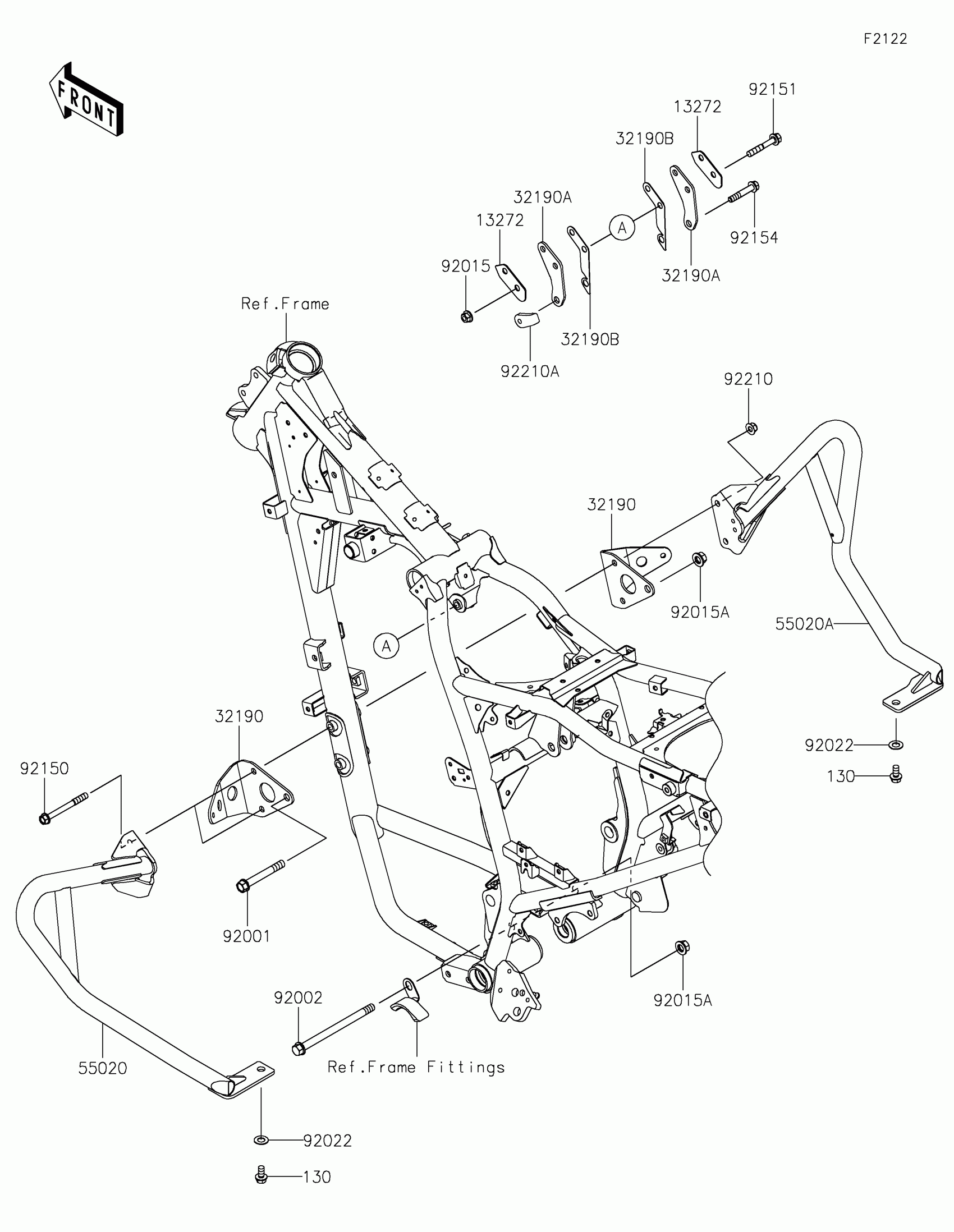

2025 Kawasaki KLR650 Adventure ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-3910

1
Out of stock

32190

BRACKET-ENGINE,LWR

32190-0858

1
Out of stock

32190A

BRACKET-ENGINE,UPP

32190-0859

1
Out of stock

32190B

BRACKET-ENGINE

32190-0860

1
Out of stock

55020

GUARD,LH

55020-2341

1
Out of stock

55020A

GUARD,RH

55020-2342

1
Out of stock

92001

BOLT,10X75

92001-4021

1
Out of stock

92002

BOLT,10X145

92002-1348

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92150

BOLT,8X80

92150-1162

1
Out of stock

92151

BOLT,8X50

92151-1463

1
Out of stock

92154

BOLT,FLANGED,8X45

92154-3733

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0159

1
Out of stock

92210A

NUT,PLATE,8MM

92210-0608

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock
