2023 Kawasaki KLR®650 Adventure Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

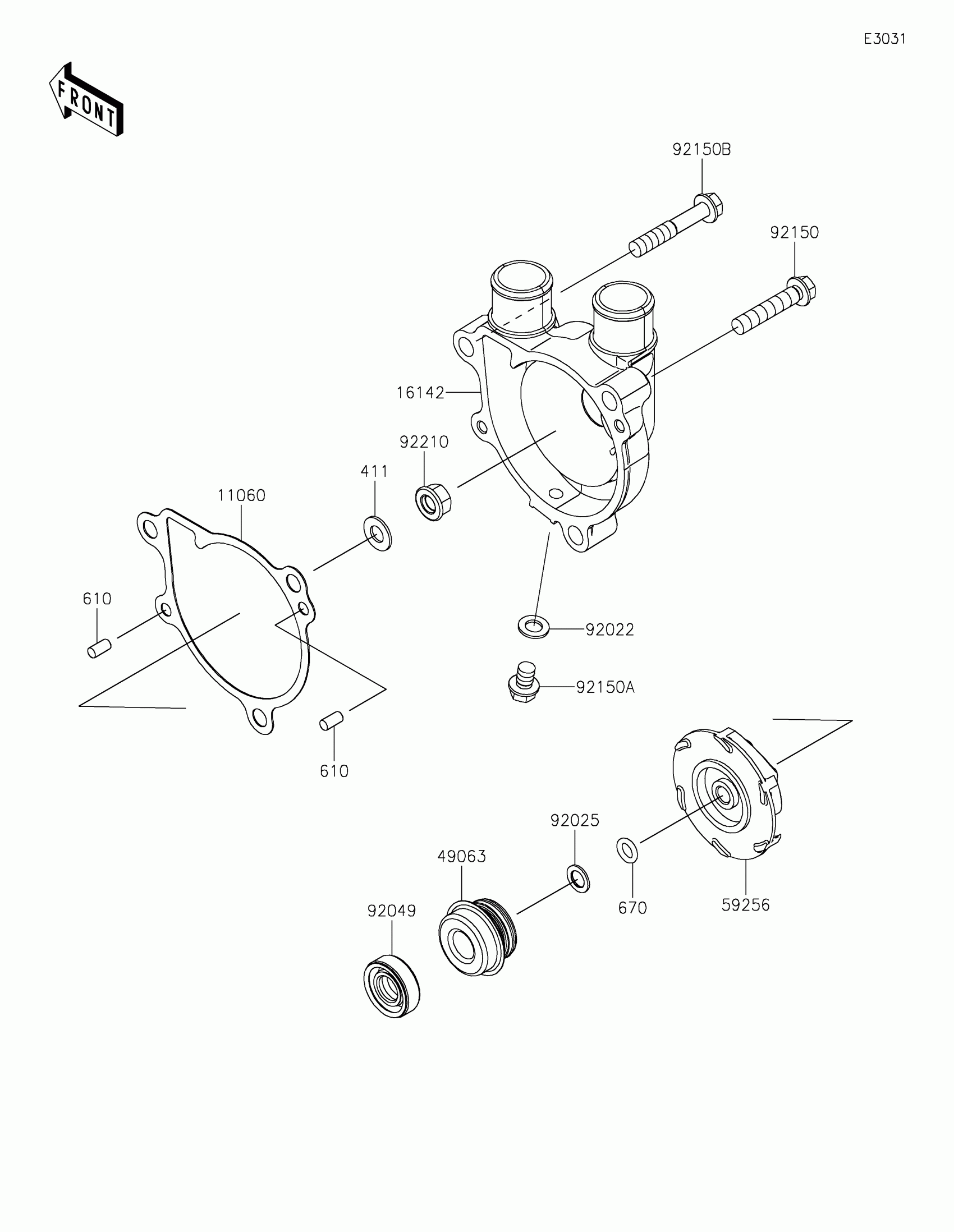

2023 Kawasaki KLR®650 Adventure Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,WATER PUMP COVER

11060-1114

1
Out of stock

16142

COVER-PUMP

16142-0067

1
Out of stock

49063

SEAL-MECHANICAL

49063-0002

1
Out of stock

59256

IMPELLER

59256-1055

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92025

SHIM,T=0.8

92025-1503

1
Out of stock

92049

SEAL-OIL,SC10227

92049-1157

1
Out of stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,6X8

92150-1966

1
Out of stock

92150B

BOLT,6X35

92150-1967

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

670

O RING,6MM

670B1506

1
Out of stock
