2023 Kawasaki KLR®650 Adventure Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

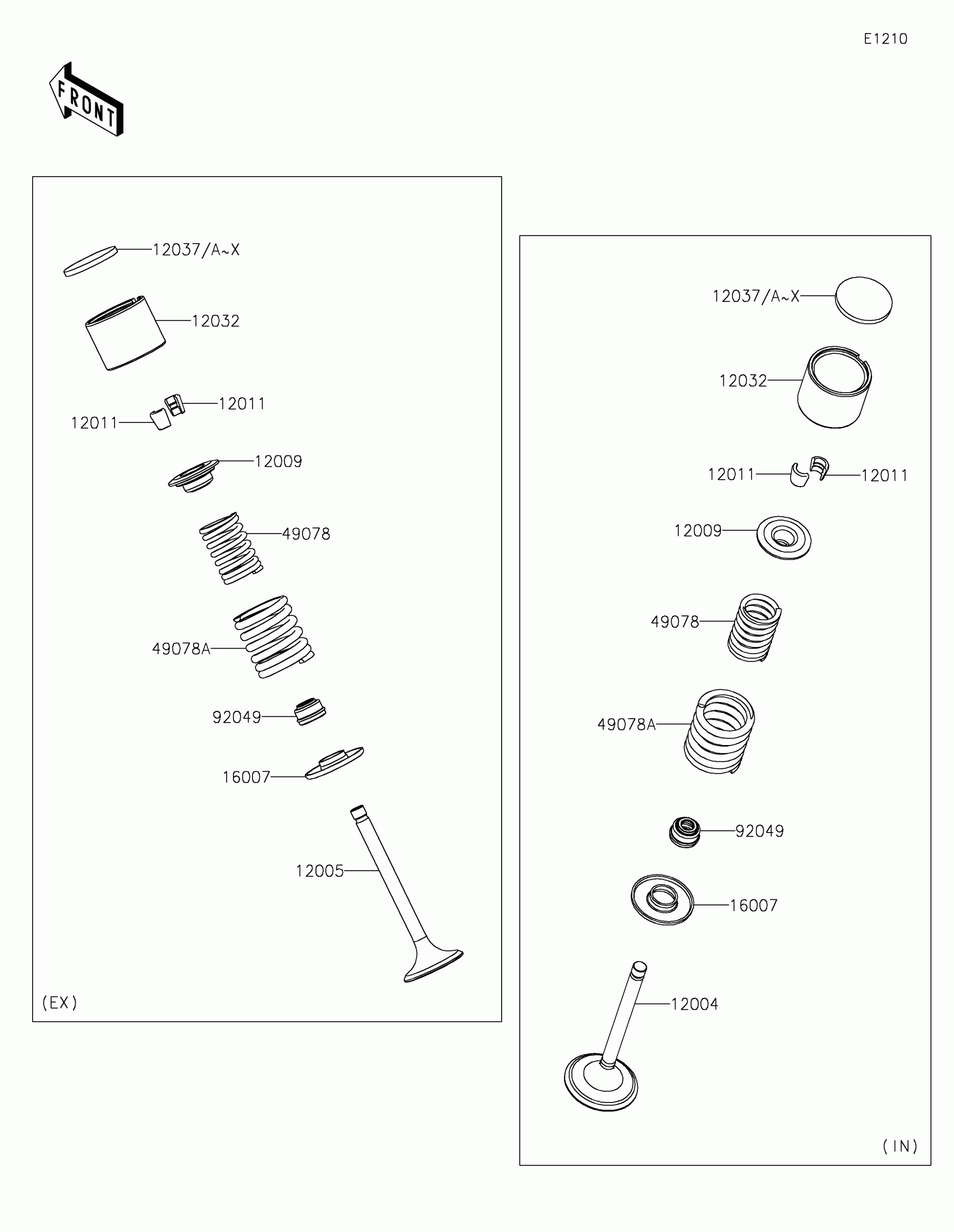

2023 Kawasaki KLR®650 Adventure Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0727

1
Out of stock

12005

VALVE-EXHAUST

12005-0740

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-005

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12032

TAPPET

12032-1002

1
Out of stock

12037

SHIM,T=2.00

12037-001

—
Out of stock

12037A

SHIM,T=2.05

12037-002

—
Out of stock

12037B

SHIM,T=2.10

12037-003

—
Out of stock

12037C

SHIM,T=2.15

12037-004

—
Out of stock

12037D

SHIM,T=2.20

12037-005

—
Out of stock

12037E

SHIM,T=2.25

12037-006

—
Out of stock

12037F

SHIM,T=2.30

12037-007

—
Out of stock

12037G

SHIM,T=2.35

12037-008

—
Out of stock

12037H

SHIM,T=2.40

12037-009

—
Out of stock

12037I

SHIM,T=2.45

12037-010

—
Out of stock

12037J

SHIM,T=2.50

12037-011

—
Out of stock

12037K

SHIM,T=2.55

12037-012

—
Out of stock

12037L

SHIM,T=2.60

12037-013

—
Out of stock

12037M

SHIM,T=2.65

12037-014

—
Out of stock

12037N

SHIM,T=2.70

12037-015

—
Out of stock

12037O

SHIM,T=2.75

12037-016

—
Out of stock

12037P

SHIM,T=2.80

12037-017

—
Out of stock

12037Q

SHIM,T=2.85

12037-018

—
Out of stock

12037R

SHIM,T=2.90

12037-019

—
Out of stock

12037S

SHIM,T=2.95

12037-020

—
Out of stock

12037T

SHIM,T=3.00

12037-021

—
Out of stock

12037U

SHIM,T=3.05

12037-022

—
Out of stock

12037V

SHIM,T=3.10

12037-023

—
Out of stock

12037W

SHIM,T=3.15

12037-024

—
Out of stock

12037X

SHIM,T=3.20

12037-025

—
Out of stock

16007

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1065

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1066

1
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock
