2023 Kawasaki KLR®650 Adventure Crankcase Diagram

← All diagrams

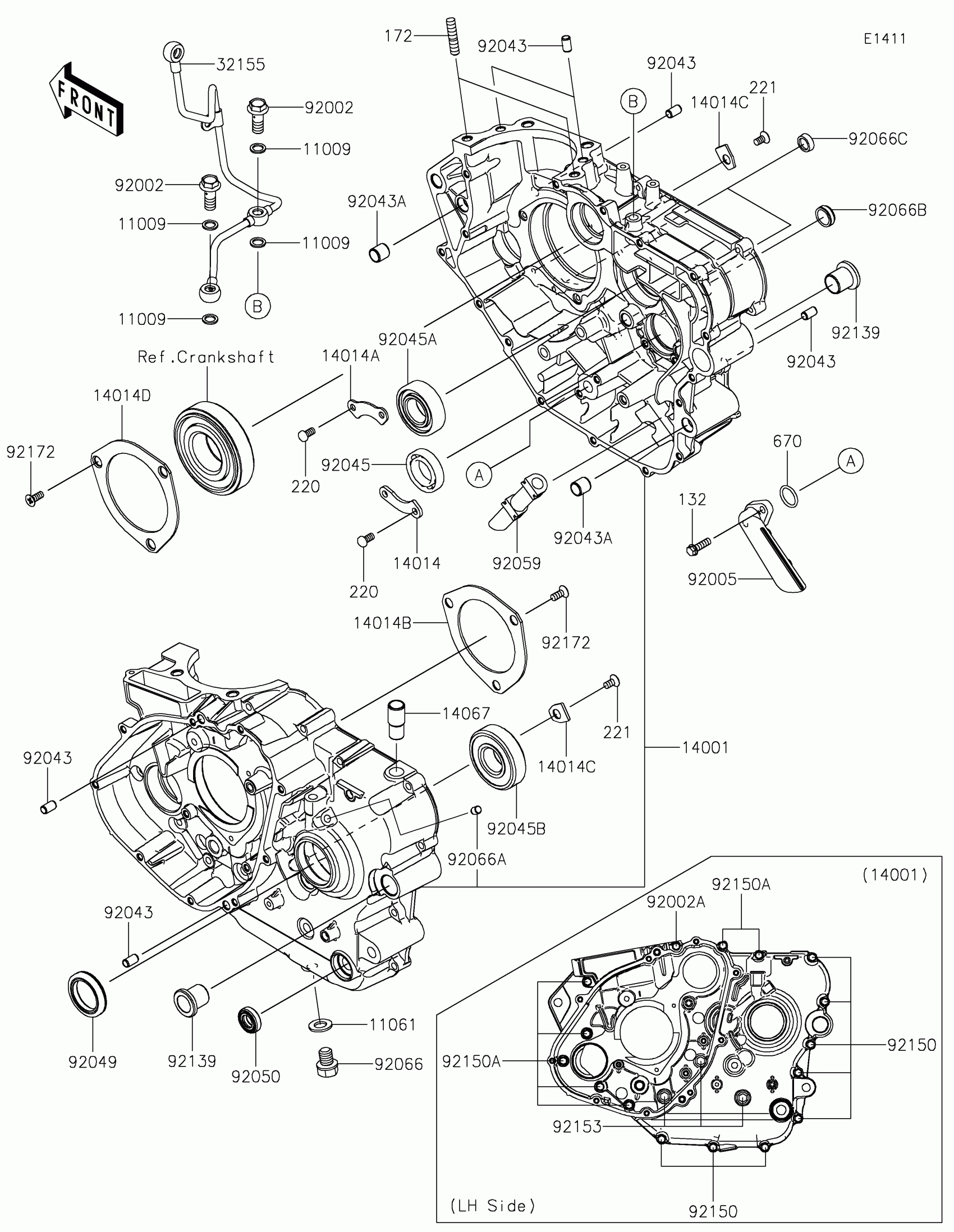

Find the part on the Crankcase diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

11061

GASKET,12X22X2

11061-0417

1
Out of stock

14001

SET-CRANKCASE

14001-0730

1
Out of stock

14014

PLATE-POSITION

14014-0045

1

$8.12

In stock

14014A

PLATE-POSITION

14014-0562

1

$5.25

In stock

14014B

PLATE-POSITION

14014-1051

1

$36.42

In stock

14014C

PLATE-POSITION

14014-1057

1

$4.17

In stock

14014D

PLATE-POSITION

14014-1083

1

$36.42

In stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

32155

PIPE,CRANKCASE-HEAD

32155-4450

1
Out of stock

92002

BOLT,BANJO,10X25

92002-1170

1
Out of stock

92002A

BOLT,FLANGED,6X60

92002-1567

1
Out of stock

92005

FITTING

92005-1152

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,11.5X14X14

92043-1279

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1
Out of stock

92045A

BEARING-BALL,TMB205

92045-1105

1
Out of stock

92045B

BEARING-BALL,TM-SX0597LU

92045-1127

1
Out of stock

92049

SEAL-OIL,32X45X7.5

92049-0825

1
Out of stock

92050

SEAL-OIL

92050-082

1
Out of stock

92059

TUBE,BREATHER

92059-1833

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0767

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066B

PLUG,RCA207

92066-1264

1
Out of stock

92066C

PLUG

92066-1282

1
Out of stock

92139

BUSHING

92139-1117

1
Out of stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,6X50

92150-1968

1
Out of stock

92153

BOLT,FLANGED-SMALL,8X80

92153-1323

1
Out of stock

92172

SCREW,6X15

92172-0144

1
Out of stock

132

1

$2.05

In stock

172

BOLT-STUD,8X22

172BA0822

1
Out of stock

220

SCREW-PAN-CROS,6X12

220AA0612

1
Out of stock

221

SCREW-CSK-CROS,6X12

221AA0612

1
Out of stock

670

O RING,18MM

670D2018

1
Out of stock
