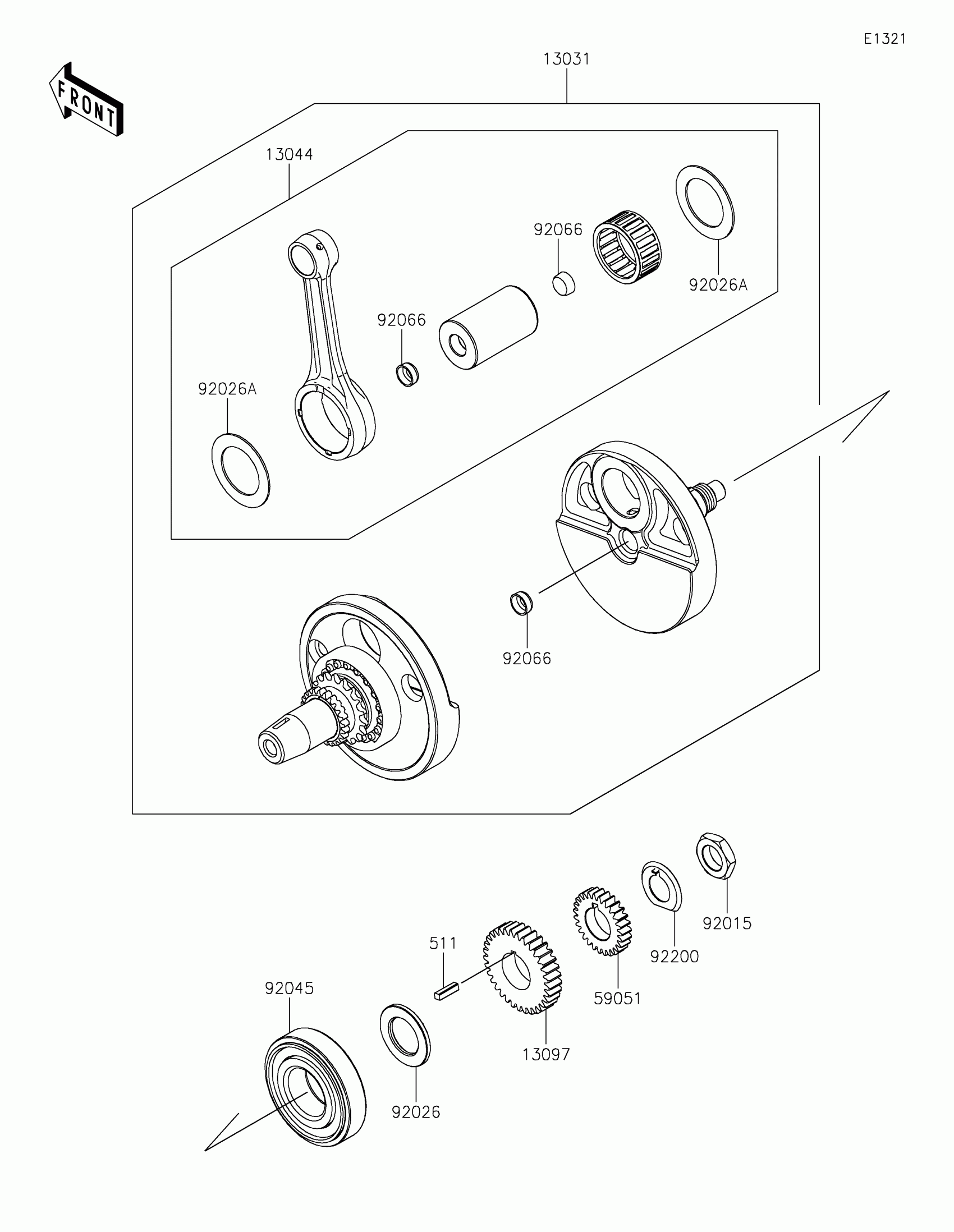

Find the part on the Crankshaft diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLR®650 Adventure Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0977

1
Out of stock

13044

SET-CONNECTING ROD

13044-5089

1
Out of stock

13097

1

$72.18

In stock

59051

GEAR-SPUR,27T

59051-1145

1
Out of stock

92015

NUT,22MM

92015-1890

1
Out of stock

92026

SPACER

92026-0150

1
Out of stock

92026A

SPACER,40X60X1.5

92026-0152

1
Out of stock

92045

BEARING-BALL,40X90X23

92045-0065

1
Out of stock

92066

PLUG

92066-1154

1
Out of stock

92200

WASHER

92200-0557

1
Out of stock

511

KEY-SUNK

511A0520

1
Out of stock
