2023 Kawasaki KLR®650 Adventure Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

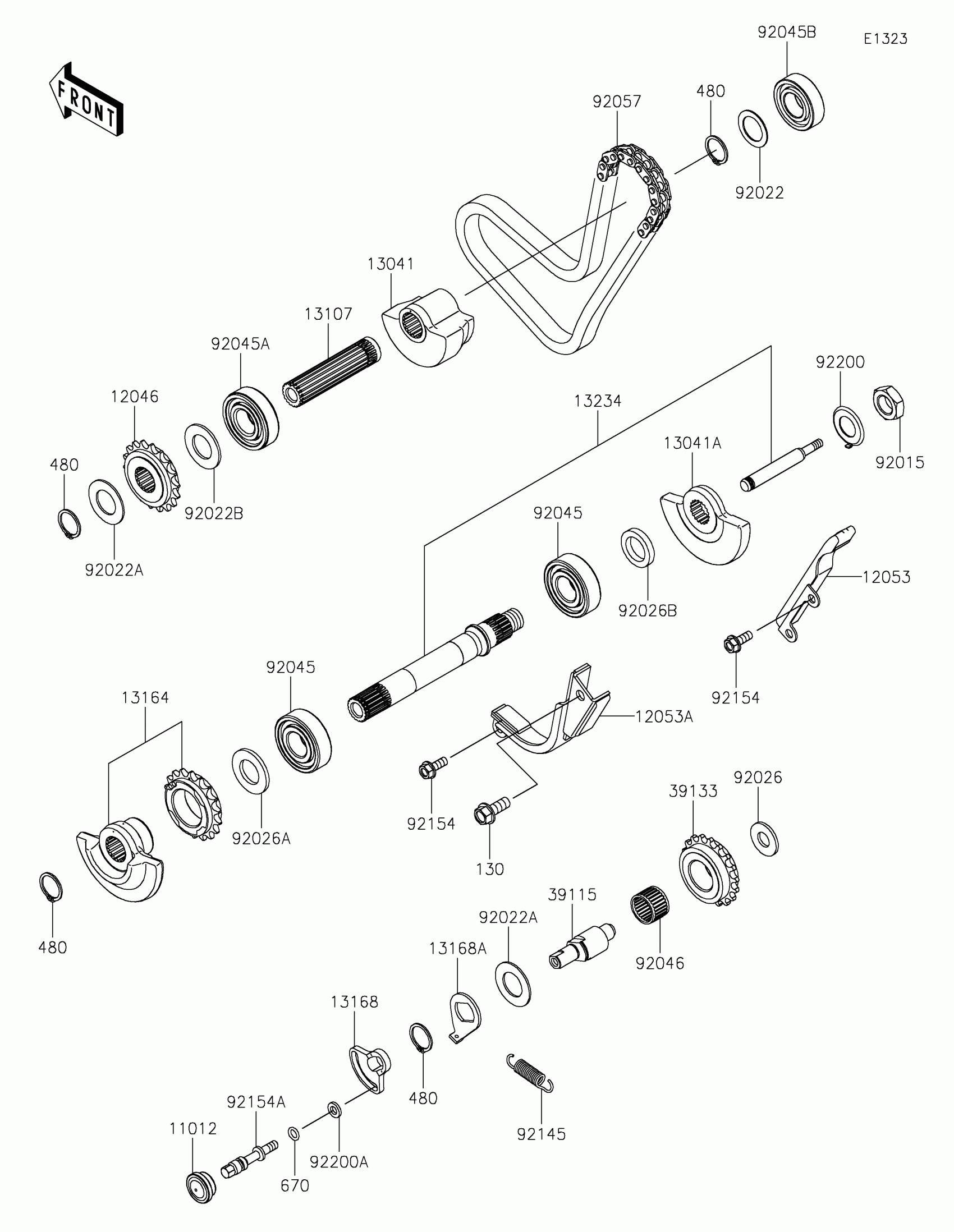

2023 Kawasaki KLR®650 Adventure Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1369

1
Out of stock

12046

SPROCKET,BALANCER,18T

12046-1165

1
Out of stock

12053

GUIDE-CHAIN,RR

12053-1111

1
Out of stock

12053A

GUIDE-CHAIN,FR

12053-1175

1
Out of stock

13041

BALANCER,RR

13041-0032

1
Out of stock

13041A

BALANCER,FR,RH

13041-0034

1
Out of stock

13107

SHAFT,BALANCER,RR

13107-1104

1
Out of stock

13164

BALANCER-COMP,FR,LH

13164-0002

1
Out of stock

13168

LEVER,IDLER SHAFT

13168-0184

1
Out of stock

13168A

LEVER

13168-0911

1
Out of stock

13234

SHAFT-COMP,BALANCER,FR

13234-0035

1
Out of stock

39115

SHAFT-IDLER

39115-0022

1

$66.05

In stock

39133

1

$97.00

In stock

92015

NUT,16MM

92015-1477

1
Out of stock

92022

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

92022A

WASHER,20.3X36X1.5

92022-1489

1
Out of stock

92022B

WASHER,20.2X36X2

92022-1880

1
Out of stock

92026

SPACER,12.2X27X2.3

92026-0151

1
Out of stock

92026A

SPACER,20.2X36X3

92026-0155

1
Out of stock

92026B

SPACER,20.2X30X5

92026-1245

1
Out of stock

92045

BEARING-BALL,20X47X14

92045-0070

1
Out of stock

92045A

BEARING-BALL

92045-0071

1
Out of stock

92045B

BEARING-BALL,20X42X12

92045-0072

1
Out of stock

92046

BEARING-NEEDLE

92046-0640

1
Out of stock

92057

CHAIN,BALANCER,BF06HX70L

92057-1158

1
Out of stock

92145

SPRING

92145-0529

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-1428

1
Out of stock

92154A

BOLT,IDLER LEVER

92154-4358

1
Out of stock

92200

WASHER

92200-0558

1
Out of stock

92200A

WASHER,6.5X12X2.0

92200-1263

1
Out of stock

130

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

480

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

670

O RING,7MM

670B1507

1
Out of stock
