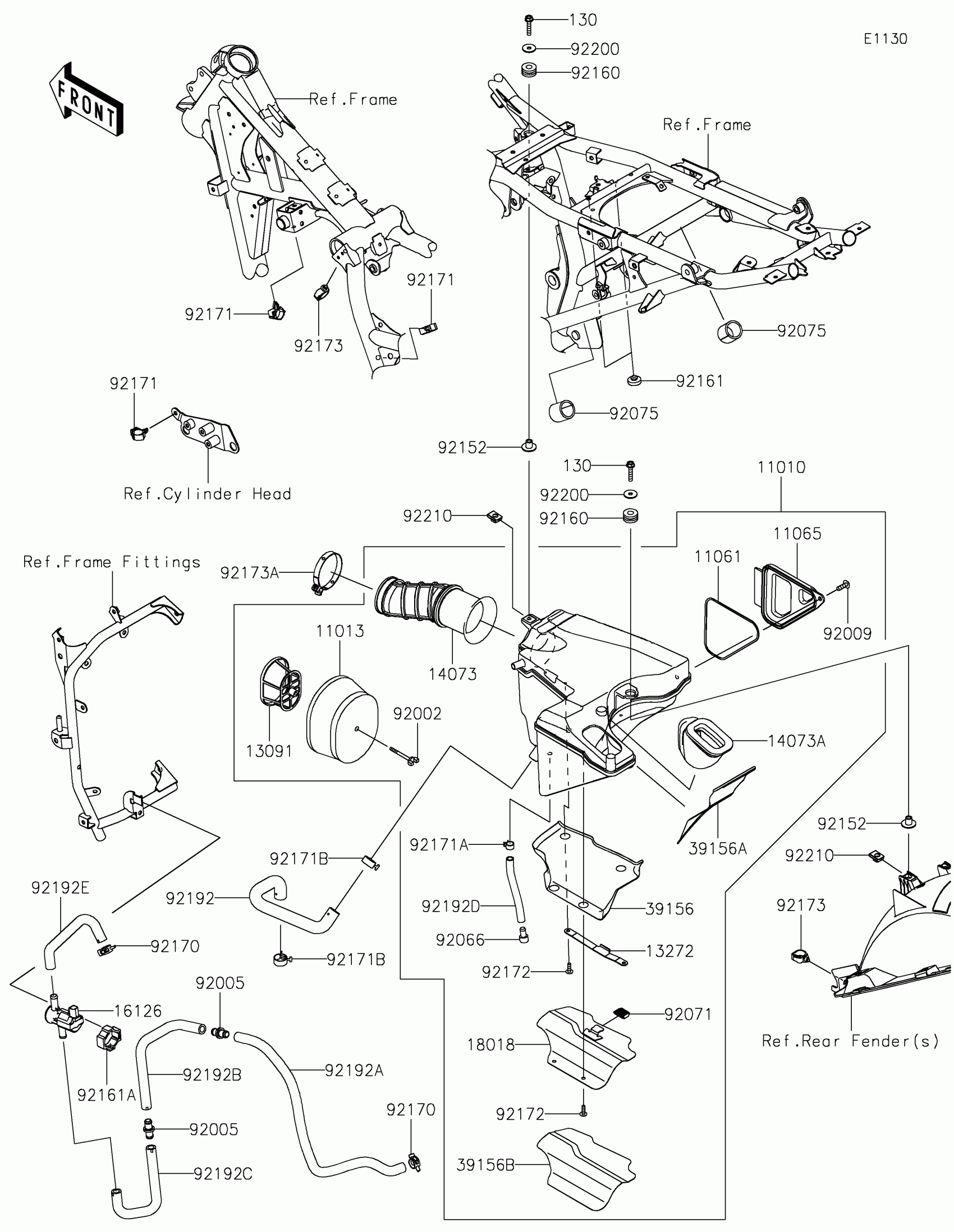

Find the part on the AIR Cleaner diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLR®650 Adventure AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1805

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1152

1
Out of stock

11061

GASKET

11061-1393

1
Out of stock

11065

CAP

11065-1373

1
Out of stock

13091

HOLDER

13091-1473

1

$26.56

In stock

13272

PLATE

13272-3875

1
Out of stock

14073

DUCT

14073-0993

1
Out of stock

14073A

DUCT

14073-0994

1
Out of stock

16126

VALVE,AIR SWITCHING

16126-0033

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0641

1
Out of stock

39156

PAD

39156-2760

1
Out of stock

39156A

PAD

39156-2761

1
Out of stock

39156B

PAD

39156-2793

1
Out of stock

92002

BOLT

92002-1904

1
Out of stock

92005

FITTING

92005-1379

1
Out of stock

92009

SCREW

92009-1460

1
Out of stock

92066

PLUG,DRAIN,8.5X15

92066-0127

1
Out of stock

92071

GROMMET

92071-0786

1
Out of stock

92075

DAMPER,25X31X30

92075-1906

1
Out of stock

92152

COLLAR,6.5X10.5X13.1

92152-0547

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER,ASWV

92161-0499

1
Out of stock

92170

CLAMP

92170-1118

1

$5.93

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171A

CLAMP,12MM

92171-1870

1
Out of stock

92171B

CLAMP

92171-1890

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0280

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173A

CLAMP,62MM

92173-0922

1
Out of stock

92192

TUBE,BREATHER

92192-2463

1
Out of stock

92192A

TUBE,FITTING-A/C

92192-2464

1
Out of stock

92192B

TUBE,FITTING-FITTING

92192-2465

1
Out of stock

92192C

TUBE,ASWV-FITTING

92192-2466

1
Out of stock

92192D

TUBE

92192-2493

1
Out of stock

92192E

TUBE,ASWV-REED VALVE

92192-2500

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92210

NUT,6MM

92210-0474

1
Out of stock

130

BOLT-FLANGED,6X30

130BB0630

1

$3.52

In stock
