2023 Kawasaki KLR®650 Adventure Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

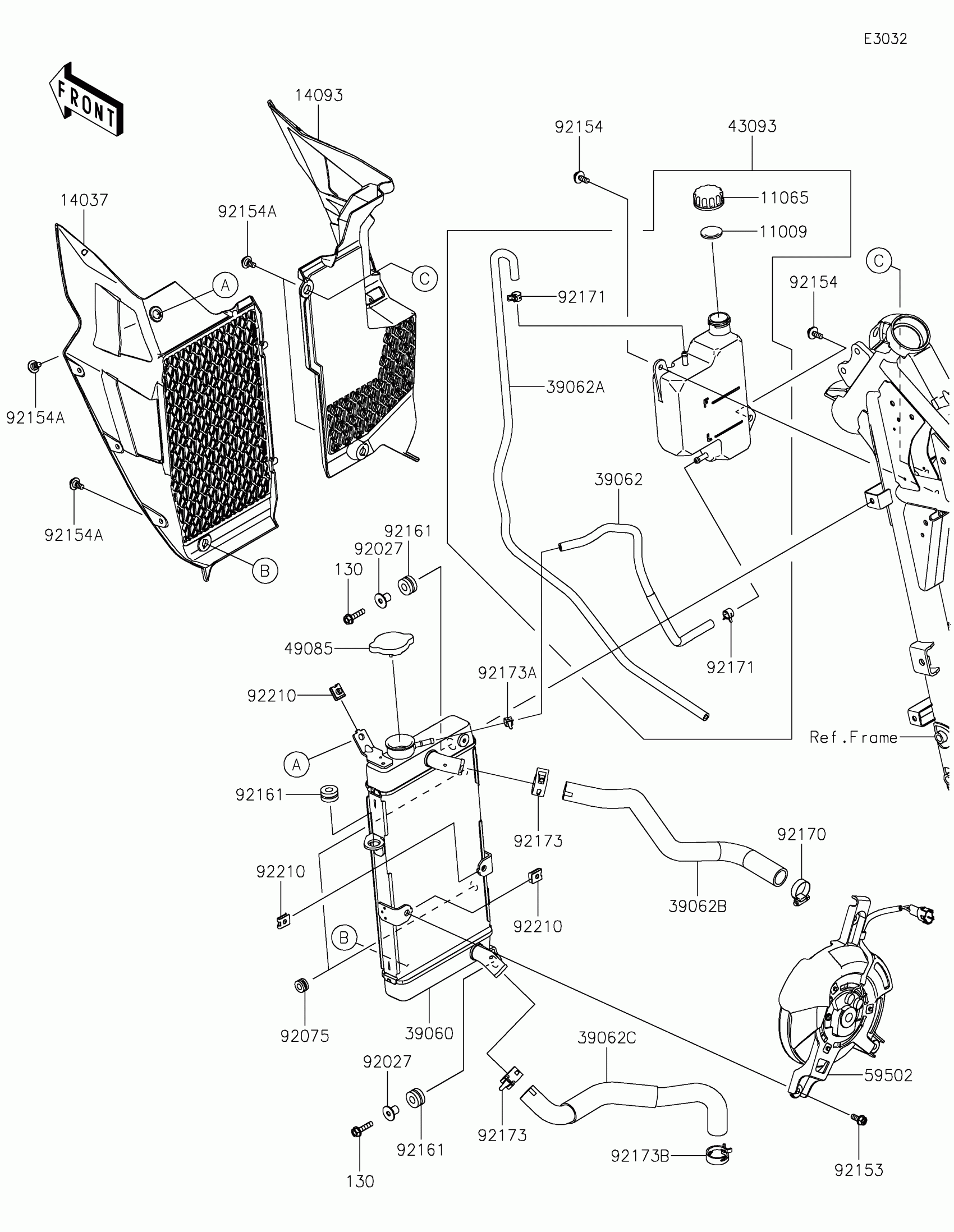

2023 Kawasaki KLR®650 Adventure Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

14037

SCREEN,RADIATOR

14037-0821

1
Out of stock

14093

COVER,RH

14093-1070

1
Out of stock

39060

RADIATOR

39060-0744

1
Out of stock

39062

HOSE-COOLING,RAD-RESERVOIR

39062-0922

1
Out of stock

39062A

HOSE-COOLING,OVERFLOW

39062-0923

1
Out of stock

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-0924

1
Out of stock

39062C

HOSE-COOLING,W/PUMP-RADIATOR

39062-0925

1
Out of stock

43093

RESERVOIR-ASSY-TANK

43093-0010

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0006

1
Out of stock

59502

FAN-ASSY

59502-0632

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,6X16

92154-0391

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92161

DAMPER

92161-1755

1

$4.17

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92171

CLAMP,10.5X8X0.7

92171-1992

1
Out of stock

92173

CLAMP

92173-1567

1
Out of stock

92173A

CLAMP

92173-2425

1
Out of stock

92173B

CLAMP

92173-2459

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
