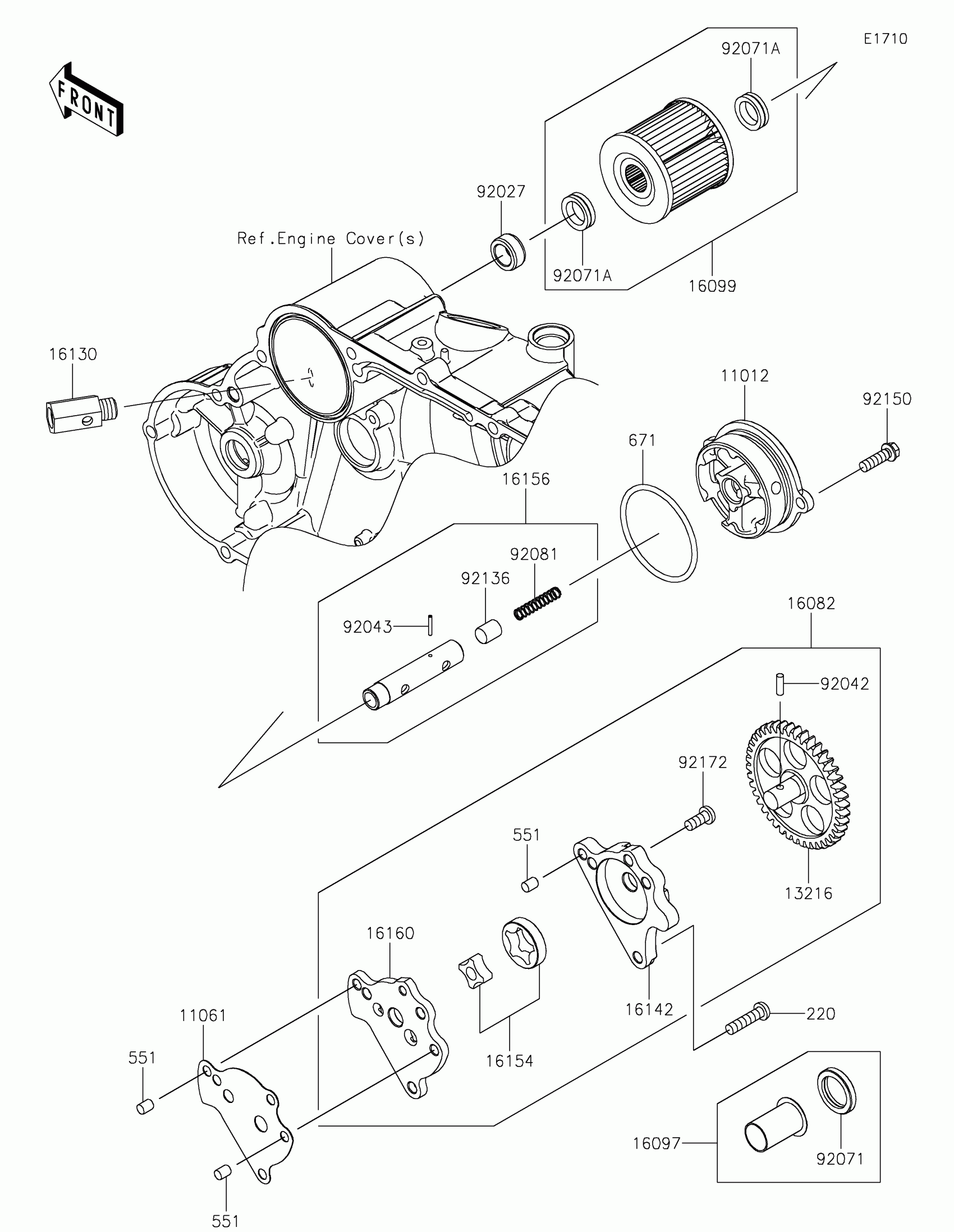

Find the part on the OIL Pump diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLR®650 Adventure OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,OIL FILTER

11012-1538

1
Out of stock

11061

GASKET,OIL PUMP

11061-0430

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-1146

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1088

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1001

1
Out of stock

16099

ELEMENT-OIL FILTER

16099-004

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1063

1
Out of stock

16142

COVER-PUMP

16142-1078

1
Out of stock

16154

ROTOR-PUMP

16154-1008

1
Out of stock

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

1
Out of stock

16160

BODY

16160-1137

1
Out of stock

92027

COLLAR,13X20X9

92027-1695

1
Out of stock

92042

PIN,DOWEL,4X12.8

92042-041

1
Out of stock

92043

PIN,SPRING,2.2X13.5

92043-123

1
Out of stock

92071

GROMMET,OIL STRAINER

92071-100

1
Out of stock

92071A

GROMMET,OIL FILTER

92071-101

1
Out of stock

92081

SPRING,PISTON

92081-043

1
Out of stock

92136

VALVE

92136-002

1
Out of stock

92150

BOLT,6X20

92150-1010

1
Out of stock

92172

SCREW,6X14

92172-0273

1
Out of stock

220

SCREW-PAN-CROS,6X25

220AA0625

1
Out of stock

551

PIN-DOWEL,6X8

551A0608

1
Out of stock

671

O RING,55MM

671B2555

1
Out of stock
