1986 Kawasaki KL600 Starter Motor/starter Clutch Diagram

← All diagrams

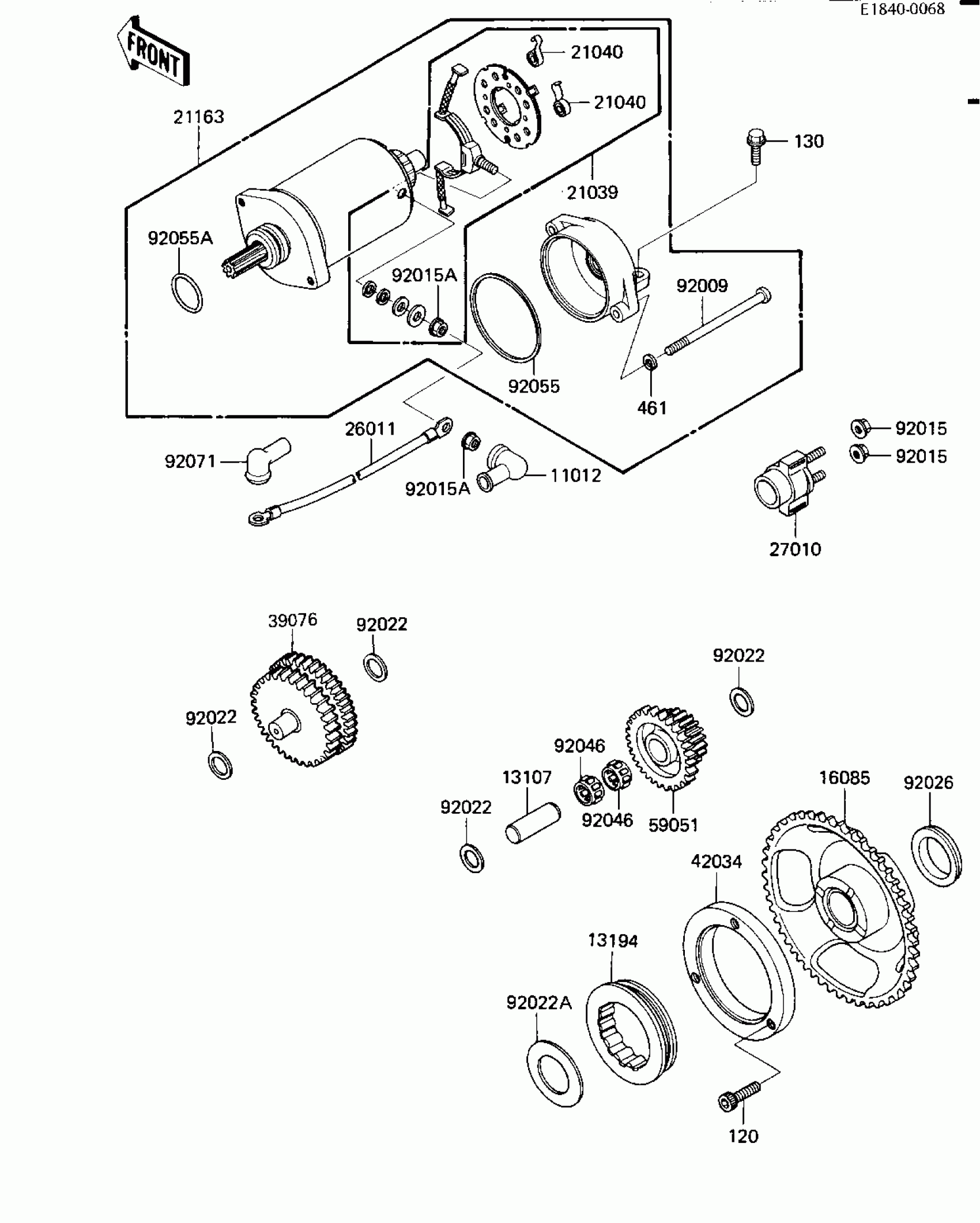

Find the part on the Starter Motor/starter Clutch diagram for your 1986 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KL600 Starter Motor/starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13107

SHAFT,IDLER

13107-1135

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1056

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1206

1
Out of stock

21039

BRUSH,CARBON

21039-1053

1
Out of stock

21040

SPRING-BRUSH

21040-1003

1
Out of stock

21163

STARTER-ELECTRIC

21163-1077

1
Out of stock

26011

WIRE-LEAD,STARTER MOT

26011-1325

1
Out of stock

27010

SWITCH,STARTER

27010-1314

1
Out of stock

39076

LIMITER,STARTER IDLE GEAR

39076-1056

1
Out of stock

42034

COUPLING

42034-1067

1
Out of stock

59051

GEAR-SPUR,20T & 37T

59051-1133

1
Out of stock

92009

SCREW

92009-1369

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92022A

WASHER,32.2X50X1.0

92022-1650

1
Out of stock

92026

SPACER

92026-1264

1
Out of stock

92046

BEARING-NEEDLE,K10X14X10

92046-1134

1
Out of stock

92055

RING-O,64MM

92055-1086

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92071

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

120

BOLT-SOCKET,8X18

120P0818

1
Out of stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
