1984 Kawasaki KL600 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

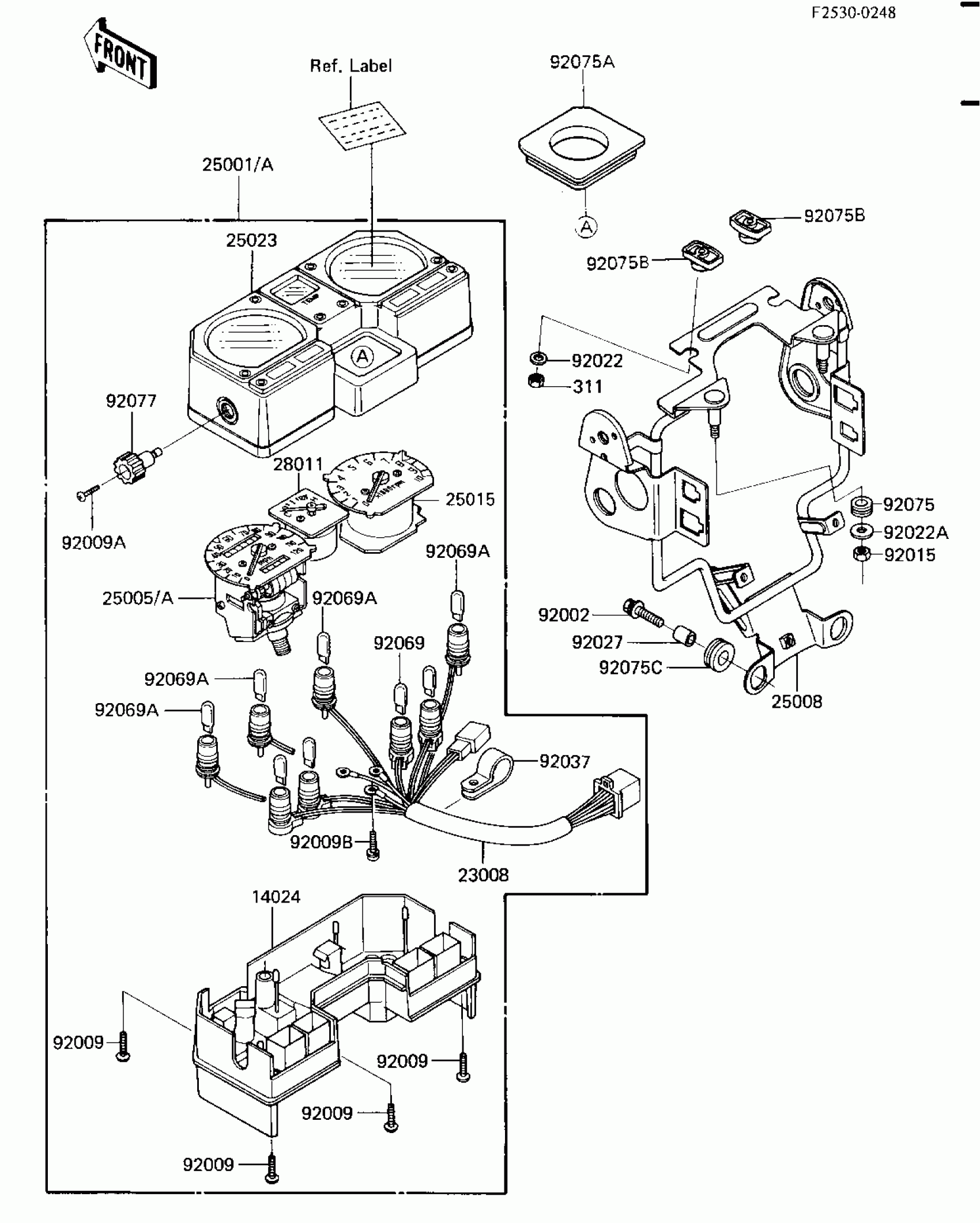

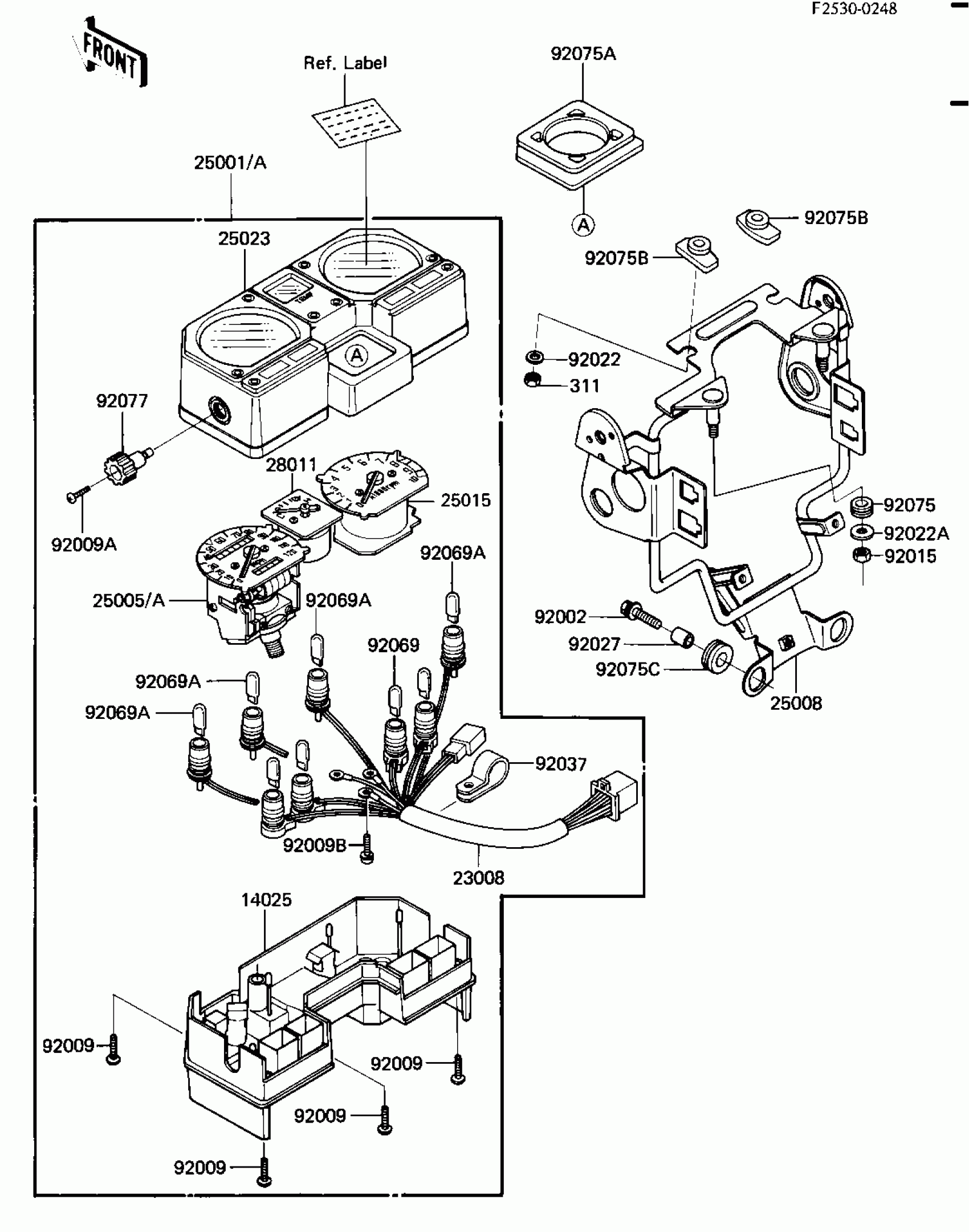

1984 Kawasaki KL600 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

1

$120.91

In stock

23008

SOCKET-ASSY,METER

23008-1215

1

$118.77

In stock

25001

METER-ASSY,MPH

25001-1513

1

$913.67

In stock

25001A

METER-ASSY,KPH (Canada)

25001-1516

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1260

1

$286.93

In stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1261

1
Out of stock

25008

BRACKET-METER

25008-1104

1

$94.14

In stock

25015

1

$367.81

In stock

25023

1

$137.89

In stock

28011

METER,TEMP

28011-1058

1

$128.17

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,3X22

92009-1293

1
Out of stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92022

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92022A

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92037

1

$8.86

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92075

DAMPER

92075-024

1

$3.49

In stock

92075A

1

$8.05

In stock

92075B

1

$4.81

In stock

92075C

1

$3.72

In stock

92077

KNOB,METER

92077-1054

1

$8.78

In stock

311

NUT-HEX

311C0500

1
Out of stock
