1984 Kawasaki KL600 Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

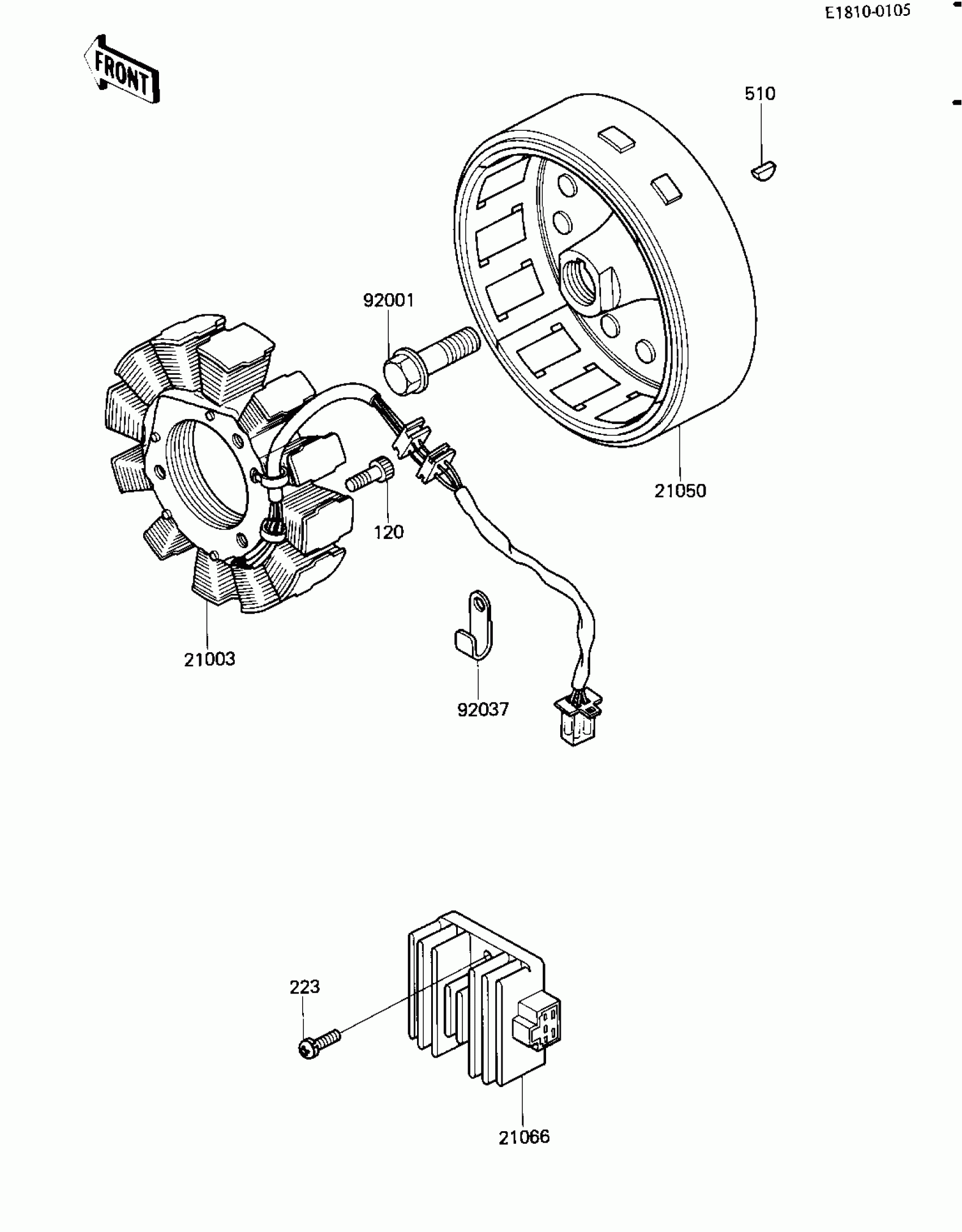

1984 Kawasaki KL600 Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1110

1

$347.24

In stock

21050

FLYWHEEL

21050-1104

1

$951.57

In stock

21066

REGULATOR-VOLTAGE

21066-1052

1

$104.96

In stock

92001

BOLT,FLANGED,12X42

92001-1169

1

$21.76

In stock

92037

1

$3.75

In stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

223

SCREW 6X20

232B0620

1
Out of stock

510

KEY-WOODRUFF

510A4200

1

$2.37

In stock
