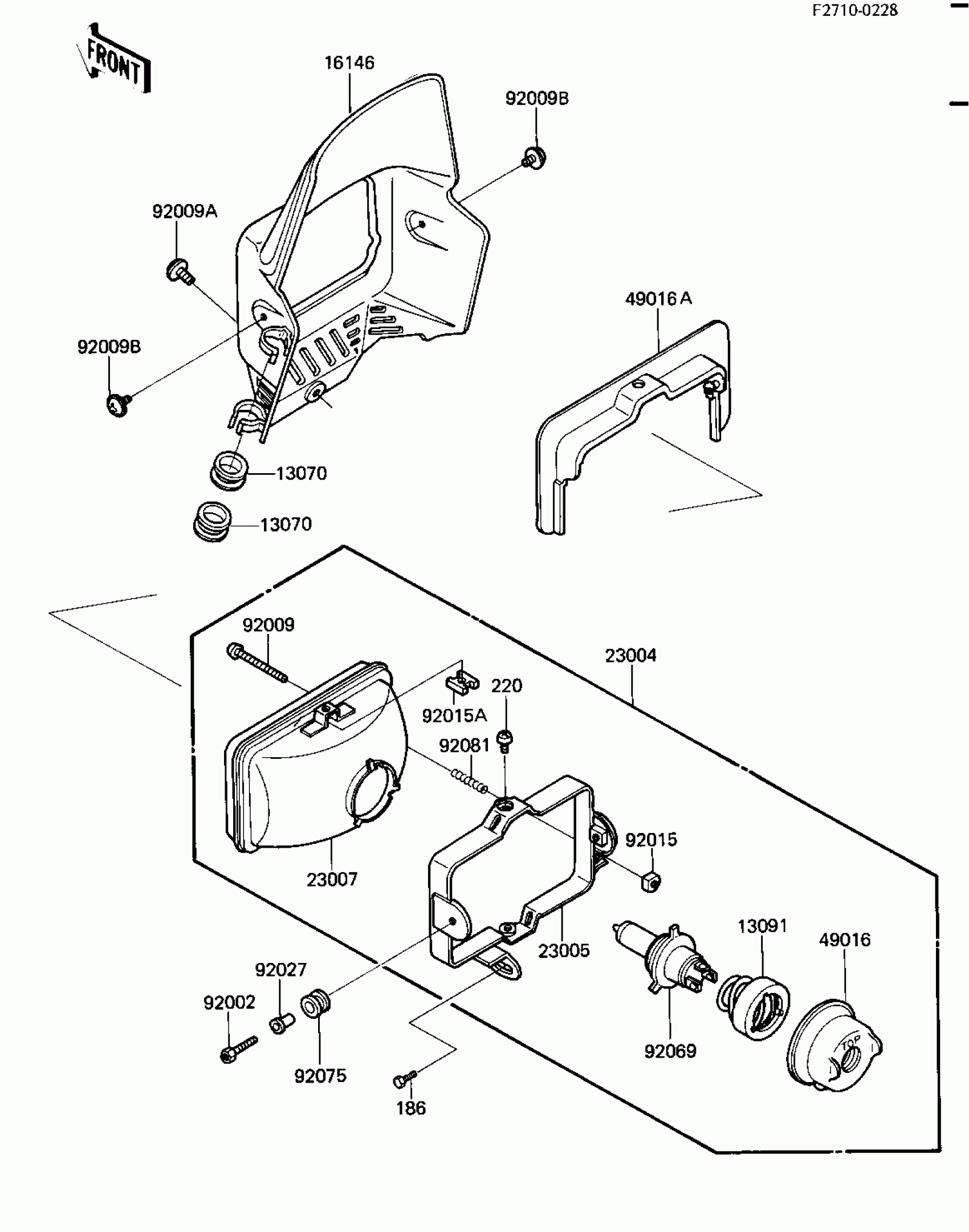

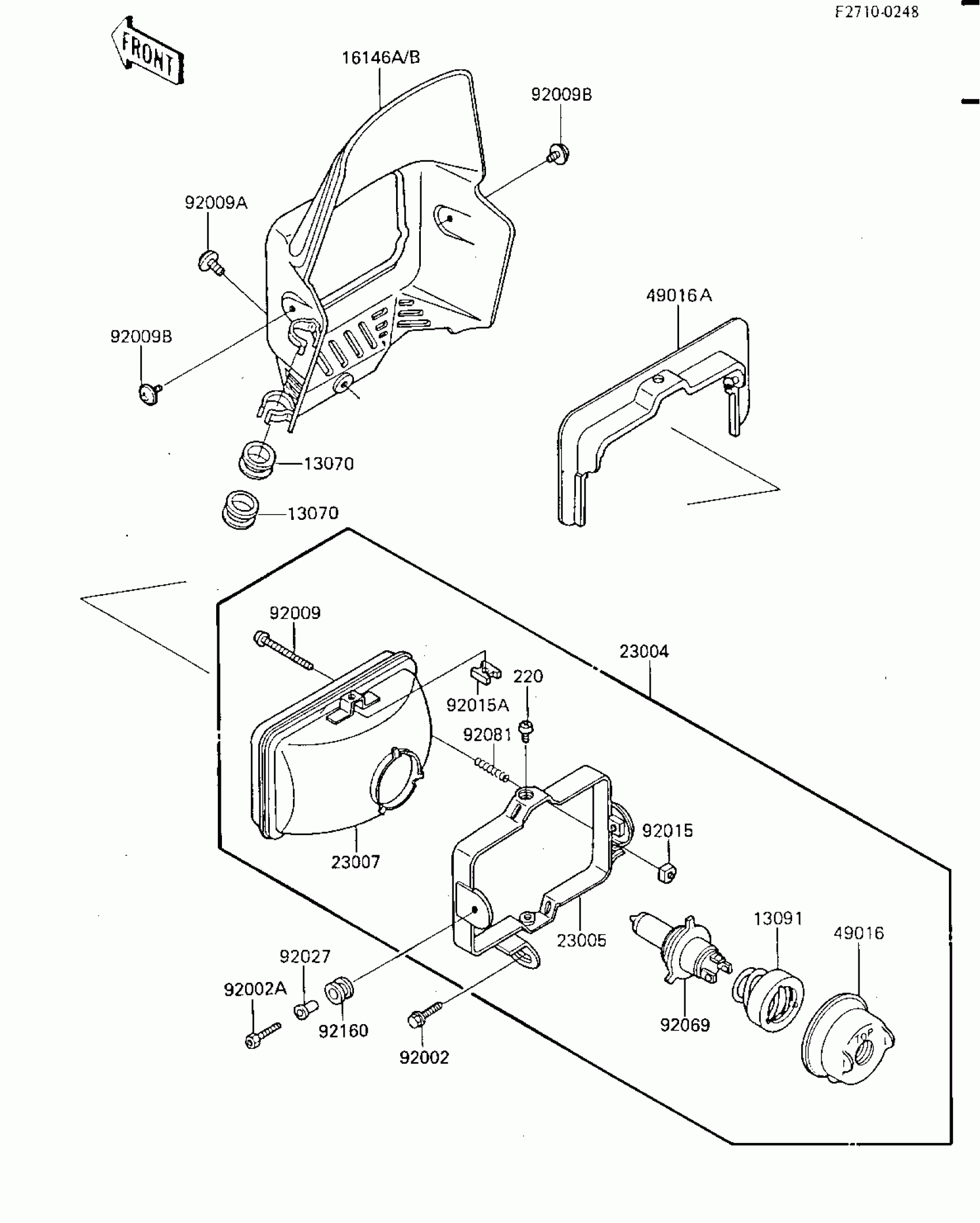

Kawasaki KL600 HEADLIGHT Diagram

#

Description
Price

13070

GUIDE,BRAKE HOSE

13070-1107

$9.29

13091

HOLDER,SOCKET

13091-1558

$11.36

16146

COVER-ASSY,HEAD LAMP,

16146-5005-6F

$187.61

23004

LAMP-HEAD

23004-1251

$299.89

23005

BODY-COMP-HEAD LAMP

23005-1052

$47.15

23007

LENS-COMP,HEAD LAMP

23007-1174

Unavailable

49016

COVER-SEAL,SOCKET

49016-1037

$11.19

49016A

COVER-SEAL,HEAD LAMP

49016-1101

$33.72

92002

BOLT

92002-1319

$7.49

92009

SCREW,4X48

92009-1065

$3.74

92009A

SCREW,6X14,WHITE

92009-1287

$1.81

92009B

SCREW,6X8

92009-1294

Unavailable

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92015A

NUT,5MM

92015-1354

$3.74

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92160-1007

$4.18

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.19

186

BOLT

186B0614

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable
