1984 Kawasaki KL600 Chassis Electrical Equipment Diagram

← All diagrams

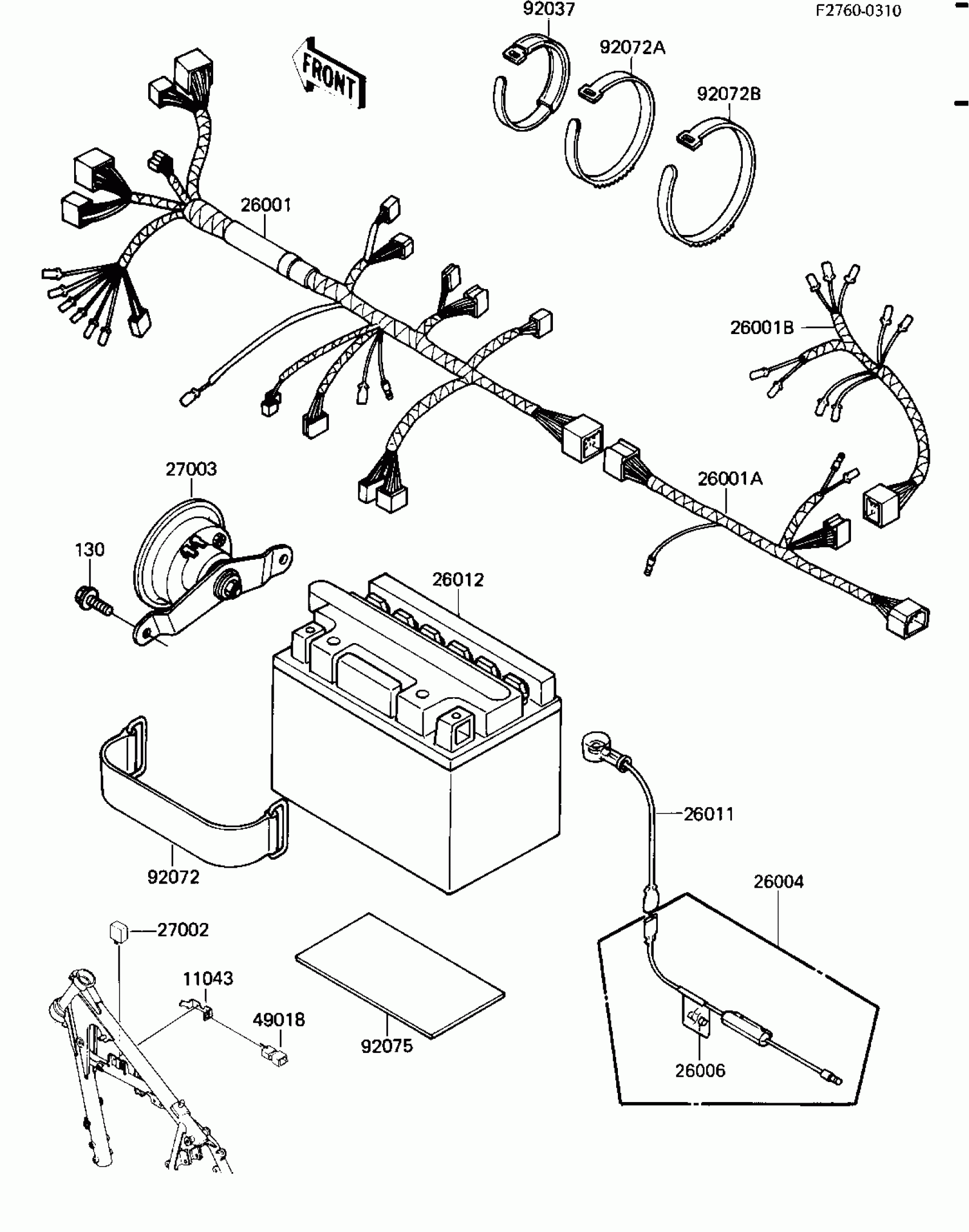

Find the part on the Chassis Electrical Equipment diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KL600 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,DIODE

11043-1376

1

$11.49

In stock

26001

HARNESS,FR(MAIN)

26001-1584

1

$101.02

In stock

26001A

HARNESS,CNT

26001-1585

1

$48.47

In stock

26001B

HARNESS,RR

26001-1586

1

$48.28

In stock

26004

FUSE-ASSY

26004-1055

1
Out of stock

26006

FUSE,20A,L=30

26006-1056

1
Out of stock

26011

WIRE-LEAD,BATTERY

26011-1264

1

$11.15

In stock

26012

FB BAT FB4L-A

26012-1110

1

$54.68

In stock

27002

1

$53.03

In stock

27003

HORN

27003-1204

1

$102.11

In stock

49018

DIODE

49018-1052

1
Out of stock

92037

CLAMP,BAND,L=120

92037-1483

1
Out of stock

92072

BAND,L=142.1

92072-006

1

$10.11

In stock

92072A

BAND,L=218

92072-032

1

$3.97

In stock

92072B

BAND,L=186

92072-056

1

$3.97

In stock

92075

DAMPER,MAT

92075-1582

1

$7.81

In stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock
