1984 Kawasaki KL600 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

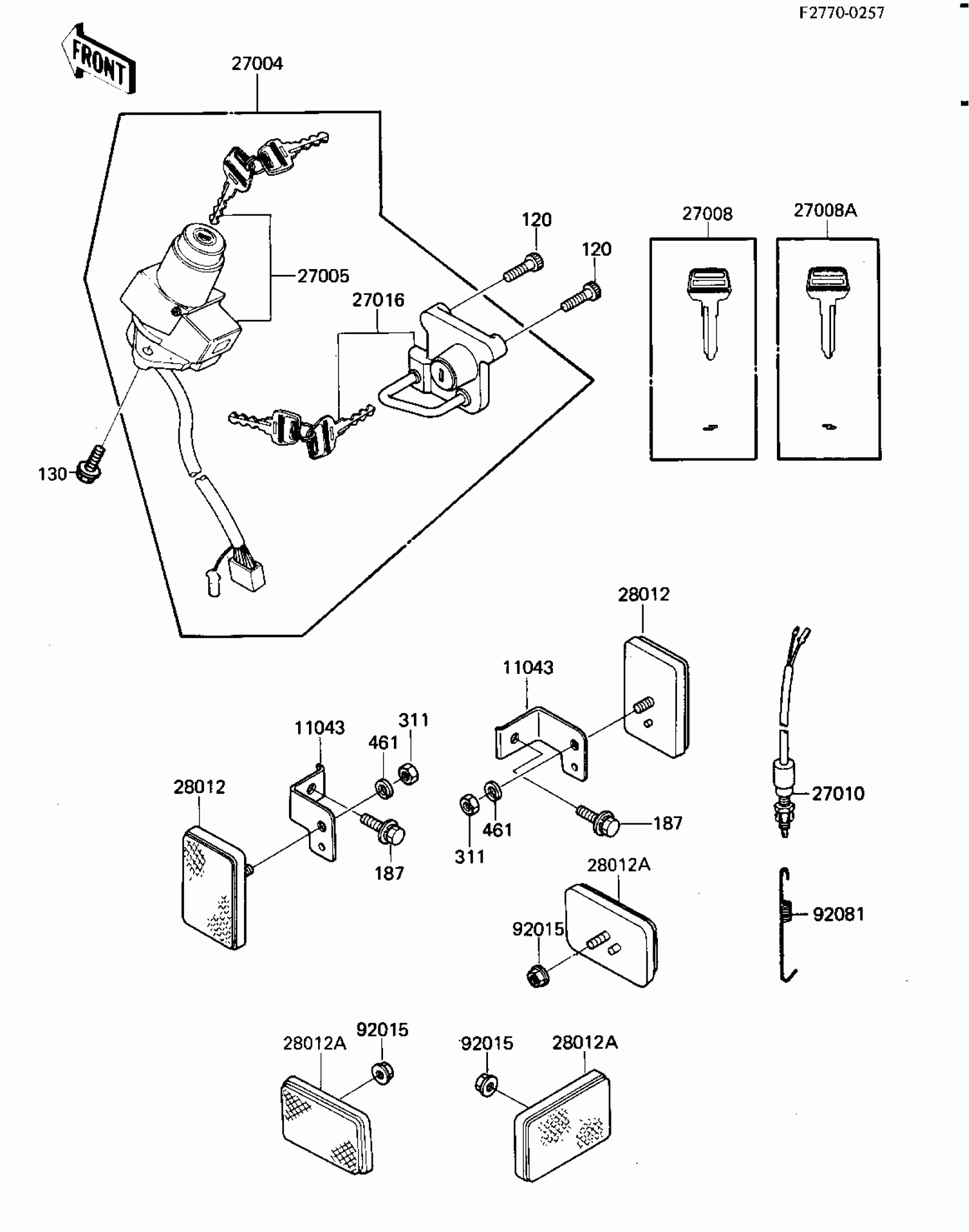

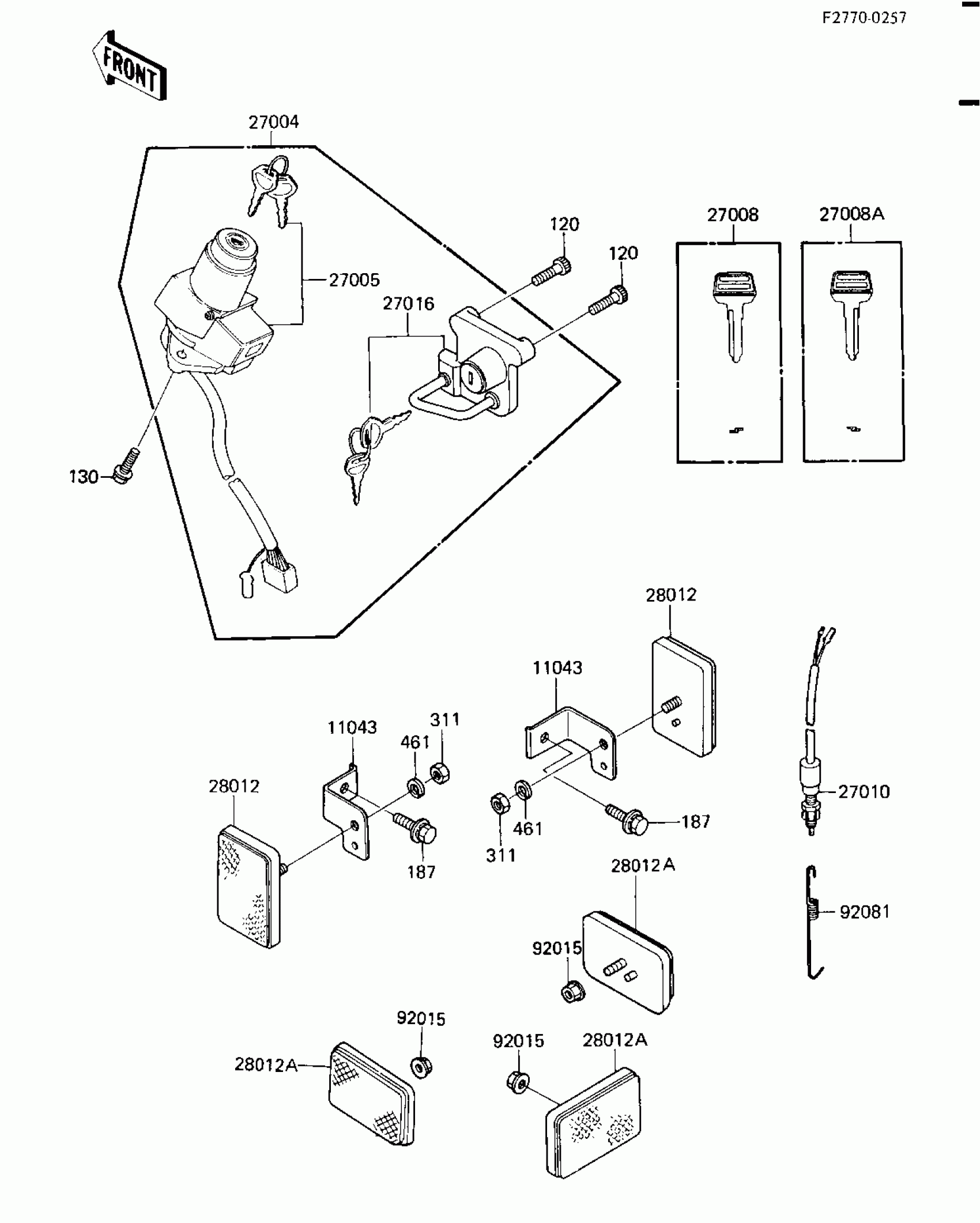

1984 Kawasaki KL600 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

1

$12.19

In stock

27004

SWITCH-ASSY

27004-5218

1
Out of stock

27005

1

$191.40

In stock

27008

KEY-LOCK,BLANK,#A

27008-1034

1

$17.63

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1035

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1

$37.98

In stock

27016

LOCK-ASSY,HELMET

27016-5075

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1

$20.82

In stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

120

BOLT-SOCKET,6X12

120S0612

1
Out of stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock

187

BOLT-UPSET-WSP

187C0614

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
