1984 Kawasaki KL600 Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

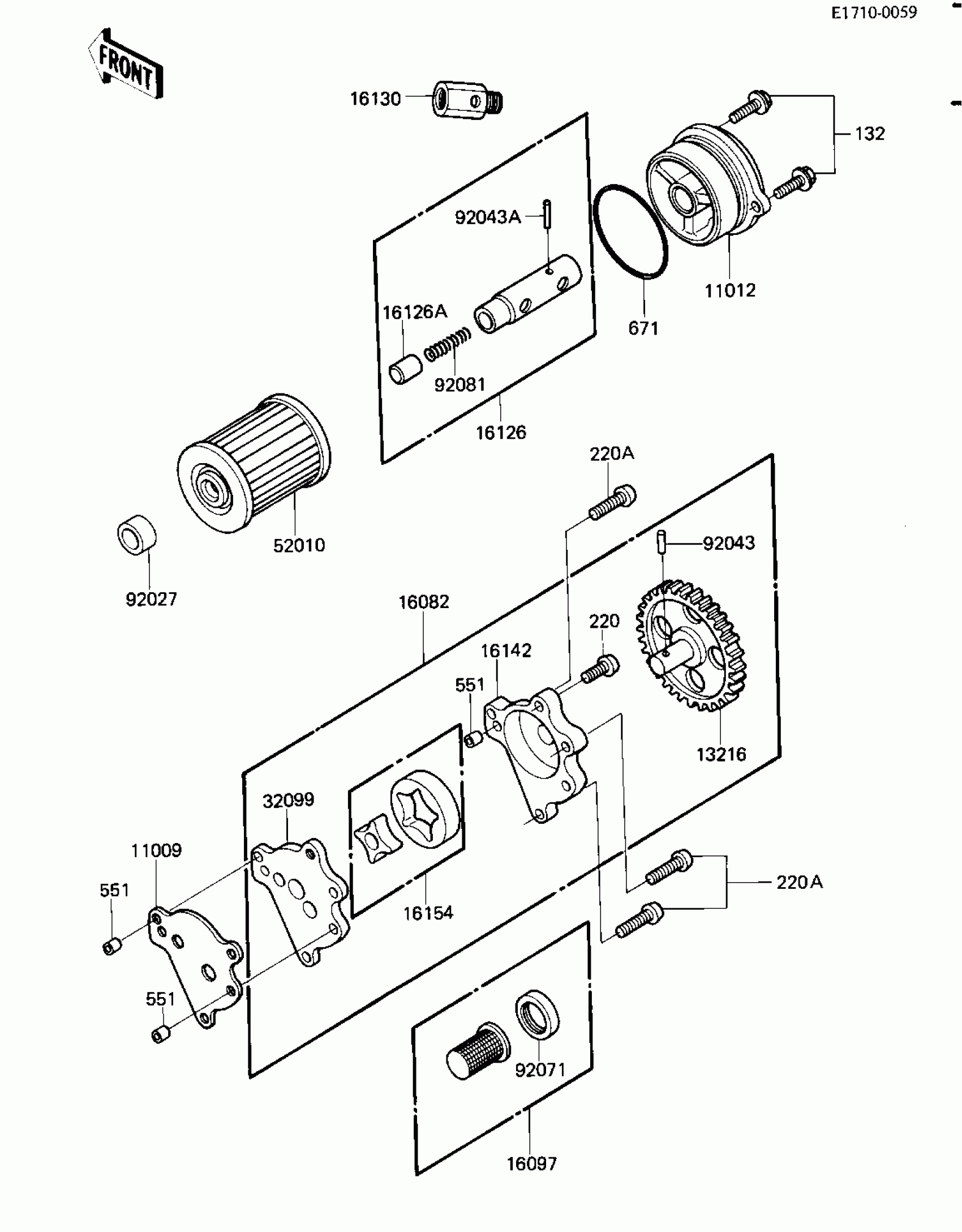

1984 Kawasaki KL600 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PUMP

11060-1115

1
Out of stock

11012

CAP,OIL FILTER

11012-1538

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-1052

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1053

1
Out of stock

1609

FILTER-ASSY-OIL

16097-1001

1
Out of stock

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

1
Out of stock

16126A

VALVE

92136-002

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

16142

COVER,OIL PUMP

16142-006

1
Out of stock

16154

ROTOR,OIL PUMP

16154-5001

1
Out of stock

32099

BODY,OIL PUMP

16141-006

1
Out of stock

52010

ELEMENT-OIL FILTER

16099-004

1
Out of stock

92027

COLLAR,13X20X9

92027-1695

1
Out of stock

92043

PIN,DOWEL,4X12.8

92042-041

1
Out of stock

92043A

PIN,SPRING,2.2X13.5

92043-123

1
Out of stock

92071

GROMMET,OIL STRAINER

92071-100

1
Out of stock

92081

SPRING,PISTON

92081-043

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

220A

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

551

PIN-DOWEL,6X8

551A0608

1
Out of stock

671

O RING,55MM

671B2555

1
Out of stock
