1984 Kawasaki KL600 Cylinder Head Diagram

← All diagrams

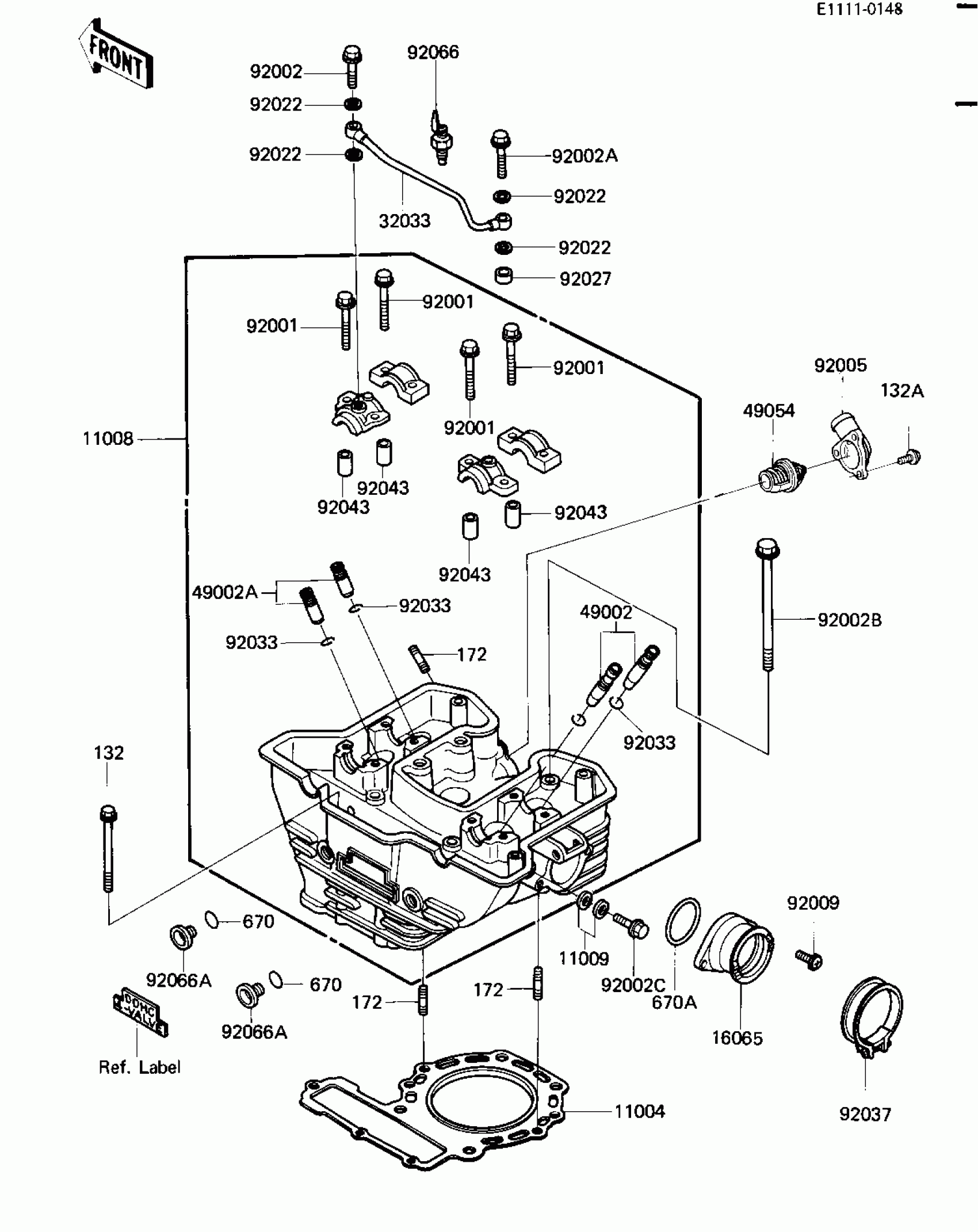

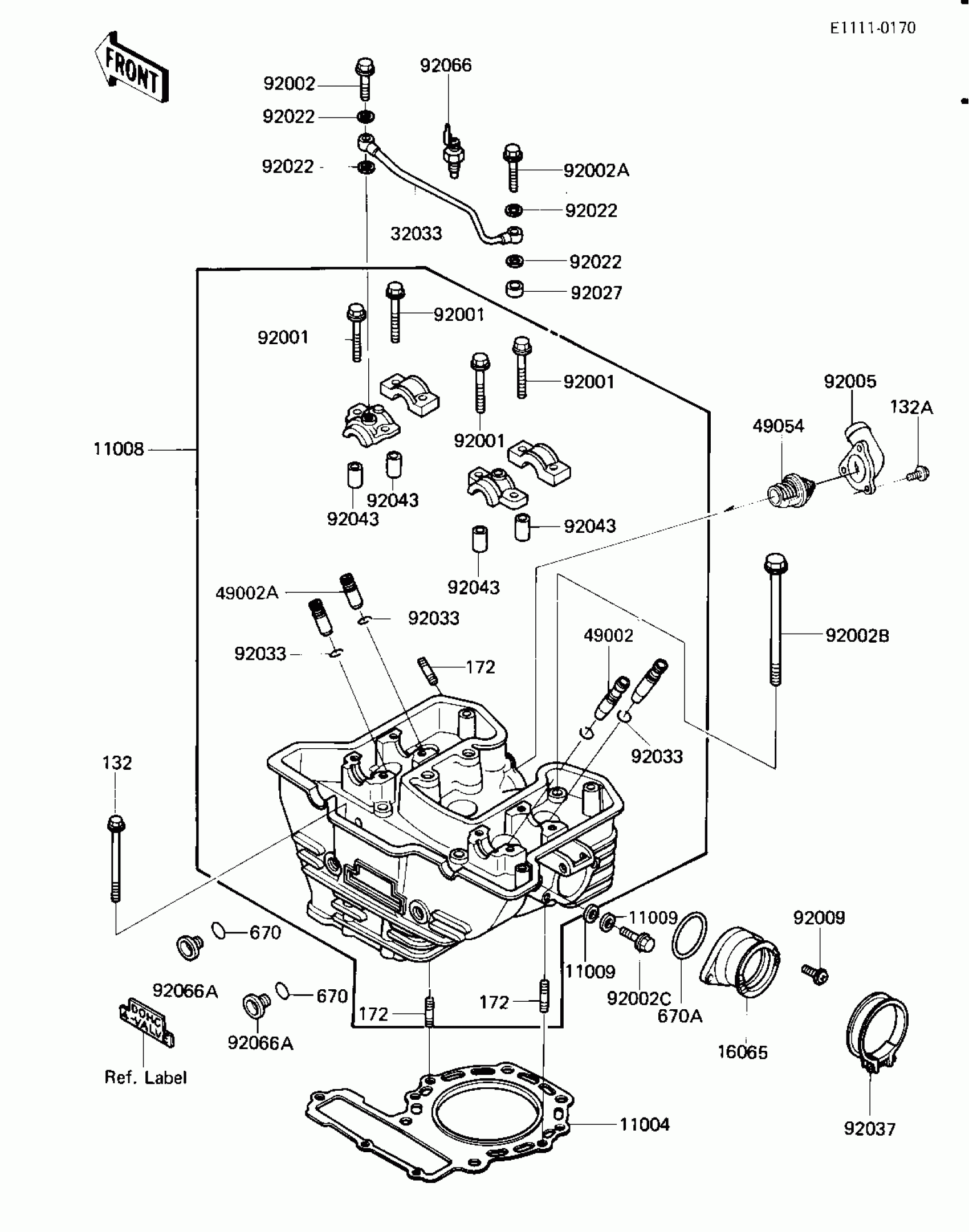

Find the part on the Cylinder Head diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KL600 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1123

1

$68.16

In stock

11008

HEAD-COMP-CYLINDER

11008-1157

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

16065

HOLDER-CARBURETOR

16065-1104

1

$106.73

In stock

32033

PIPE

32033-1409

1

$54.35

In stock

49002

GUIDE-VALVE,INTAKE

12013-009

1

$24.29

In stock

49002A

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

49054

THERMOSTAT

49054-1003

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92002

BOLT,BANJO,8X20

92001-1855

1

$8.44

In stock

92002A

BOLT,BANJO,8X30

92001-1856

1

$9.02

In stock

92002B

BOLT,10X185

92001-1994

1

$21.32

In stock

92002C

BOLT,BANJO,10X25

92002-1170

1

$9.22

In stock

92005

FITTING,CYLINDER HEAD

92005-1106

1
Out of stock

92009

SCREW,6X20

92009-1325

1
Out of stock

92022

WASHER,8.2X14X1.0

92022-1488

1

$4.34

In stock

92027

COLLAR,8.5X13X9

92027-1736

1
Out of stock

92033

1

$0.53

In stock

92037

CLAMP,55MM

92037-1486

1

$6.88

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92066

PLUG,SENSOR,WATER

92066-1118

1

$70.35

In stock

92066A

PLUG

92066-1158

1

$5.76

In stock

132

BOLT-FLANGED-SMALL,6X85

132H0685

1
Out of stock

132A

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

172

BOLT-STUD,8X22

172G0822

1
Out of stock

670

O RING,15MM

670B2015

1

$1.25

In stock

670A

O RING,48MM

670D3048

1

$5.84

In stock
