1984 Kawasaki KL600 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

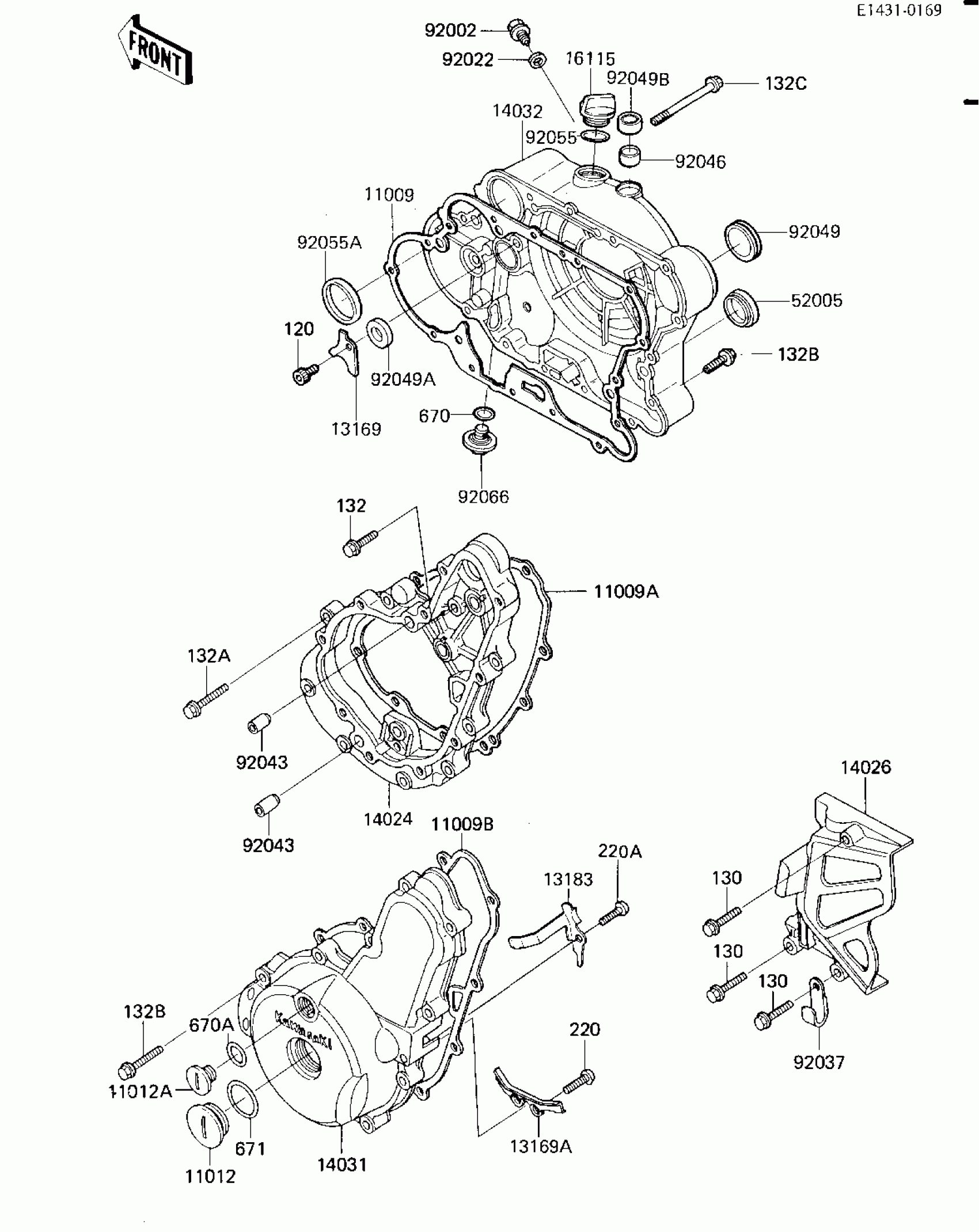

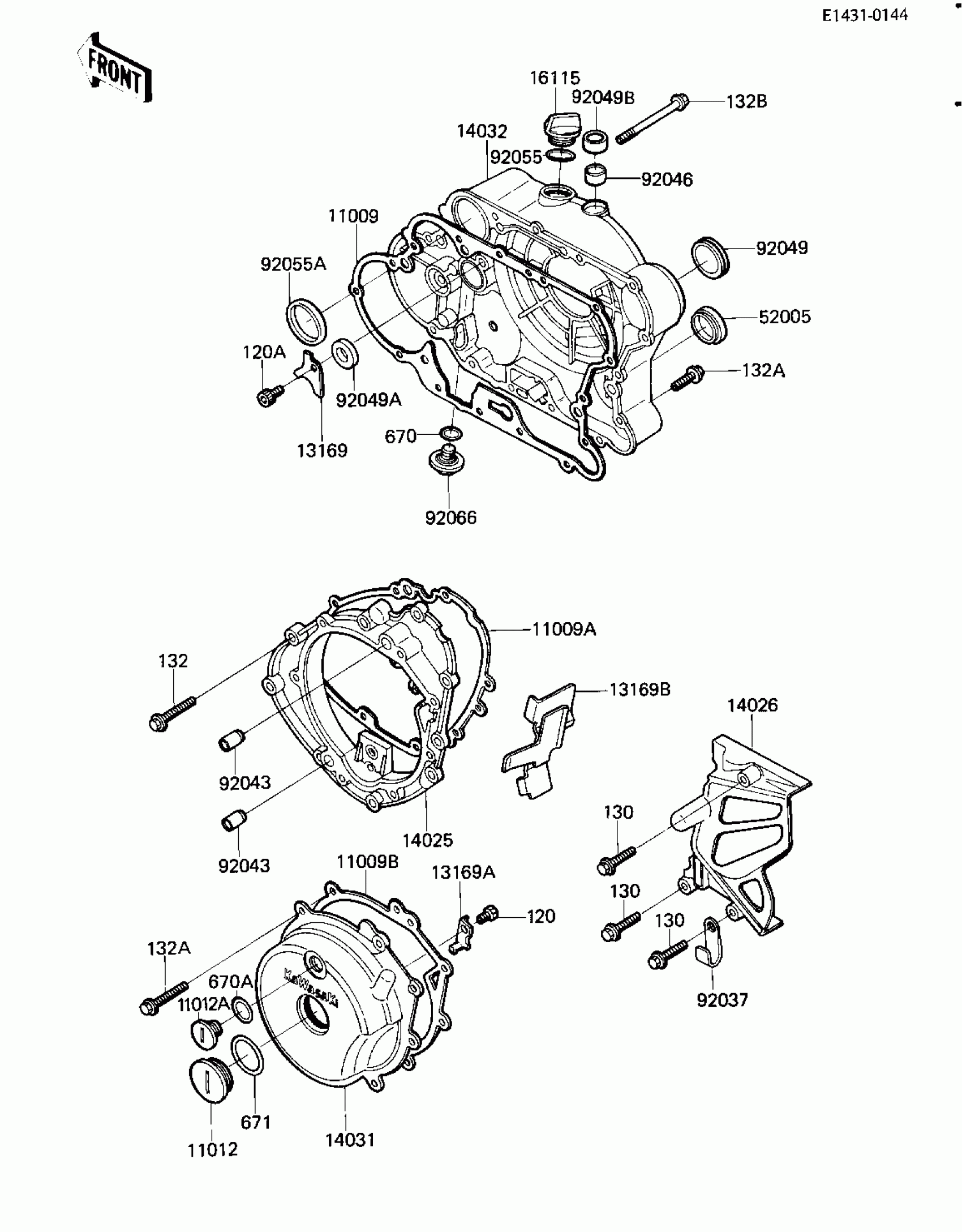

1984 Kawasaki KL600 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11060-1111

1

$33.51

In stock

11009A

GASKET,GENERATOR CASE COVER

11060-1112

1
Out of stock

11009B

GASKET,GENERATOR COVE

11009-1370

1
Out of stock

11012

CAP

11012-1362

1

$6.98

In stock

11012A

CAP,TOP MARK

11012-1363

1

$5.15

In stock

13169

PLATE,OIL SEAL

13169-1735

1

$7.49

In stock

13169A

1

$9.29

In stock

13169B

PLATE

13169-1909

1
Out of stock

14025

COVER,GENERATOR CASE

14025-1922

1
Out of stock

14026

COVER-CHAIN

14026-1107

1
Out of stock

14031

COVER-GENERATOR

14031-1172

1
Out of stock

14032

COVER-CLUTCH

14032-1157

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,SC22325

92049-1048

1
Out of stock

92049A

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049B

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,62.6X66X3.1

92055-1221

1

$7.04

In stock

92066

PLUG,DRAIN

92066-1156

1

$8.93

In stock

120

BOLT-SOCKET

120P0608

1
Out of stock

120A

BOLT-SOCKET,6X10

120P0610

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock
