1984 Kawasaki KL600 Cylinder/piston Diagram

← All diagrams

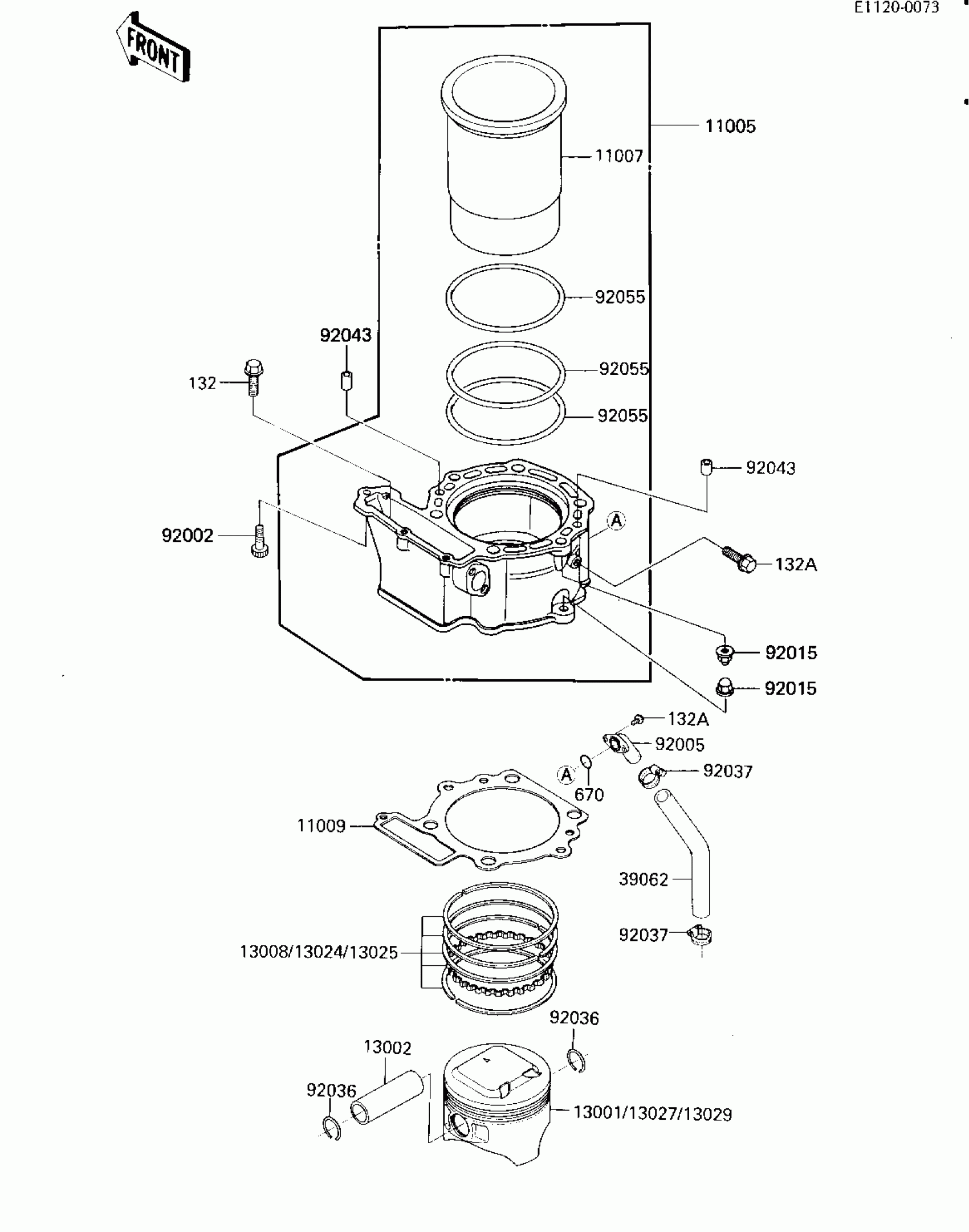

Find the part on the Cylinder/piston diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KL600 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1400

1
Out of stock

11005A

CYLINDER-ENGINE

11005-1400

1
Out of stock

11007

LINER-CYLINDER

11007-1062

1
Out of stock

11009

1

$14.49

In stock

13001

PISTON-ENGINE,STD

13001-1211

1
Out of stock

13002

PIN-PISTON

13002-1052

1
Out of stock

13008

RING-SET-PISTON

13008-5067

1

$129.80

In stock

13024

RING-SET-PISTON LL,O/

13024-1073

1
Out of stock

13025

1

$129.80

In stock

13027

PISTON-ENGINE LL,O/S

13027-1136

1
Out of stock

13029

PISTON-ENGINE L,O/S 0

13029-1141

1
Out of stock

39062

1

$24.56

In stock

92002

BOLT,8X30

92002-1169

1

$4.41

In stock

92002A

BOLT,SOCKET,8X35

92002-1409

1

$4.85

In stock

92005

FITTING,CYLINDER

92005-1107

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92036

RING-SNAP,PISTON PIN

92036-1051

1
Out of stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,105MM

92055-1220

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

670

O RING,18MM

670B2018

1

$1.25

In stock
